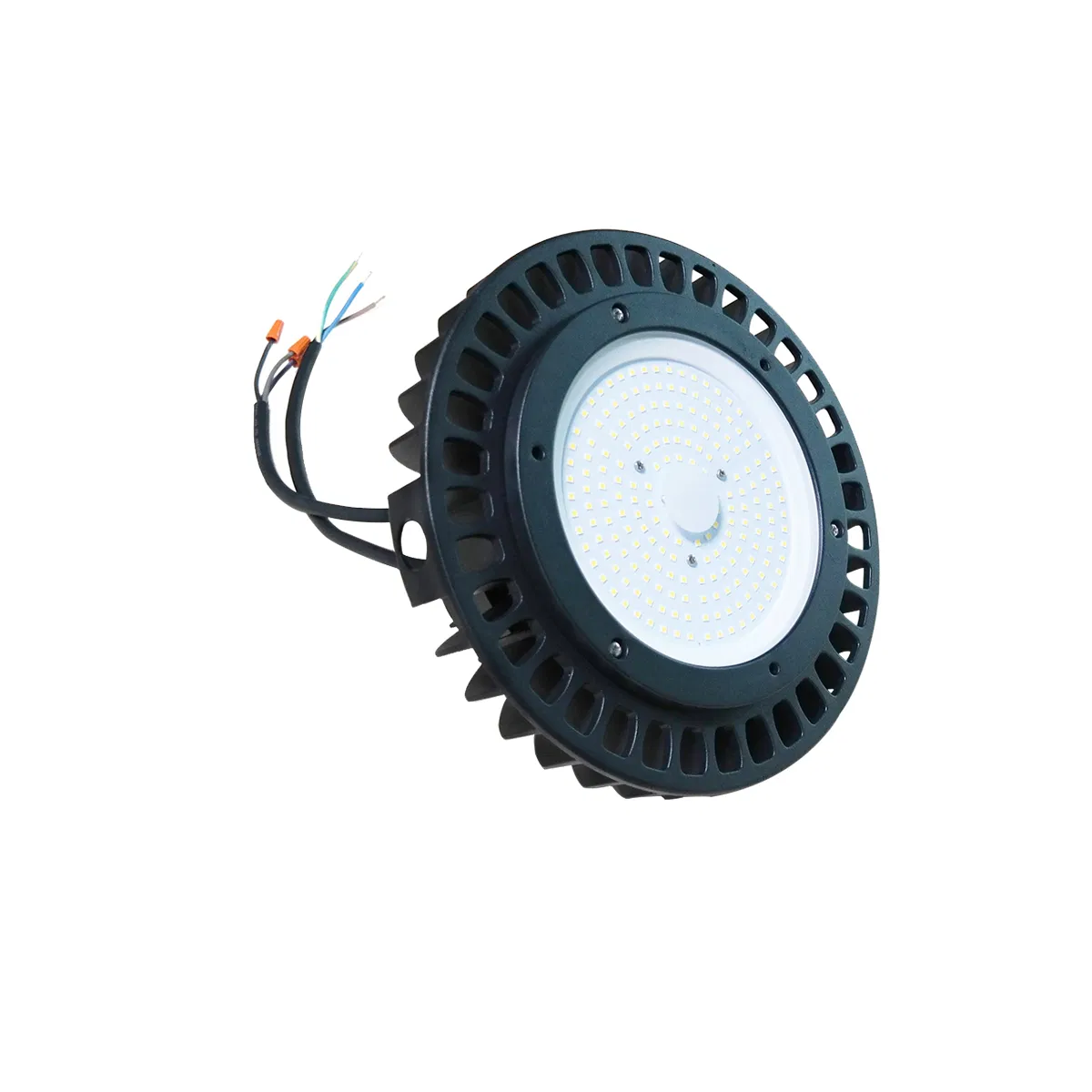

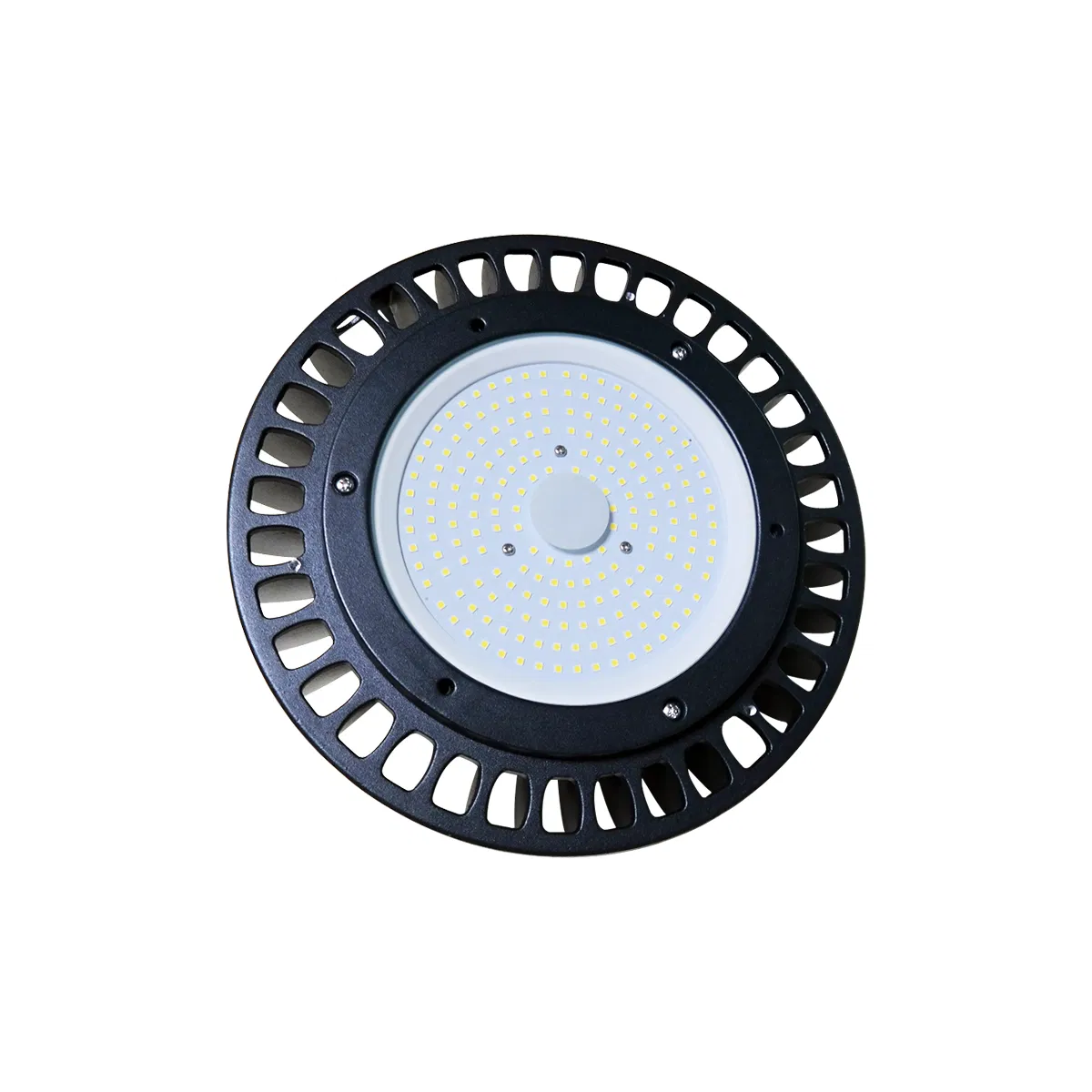

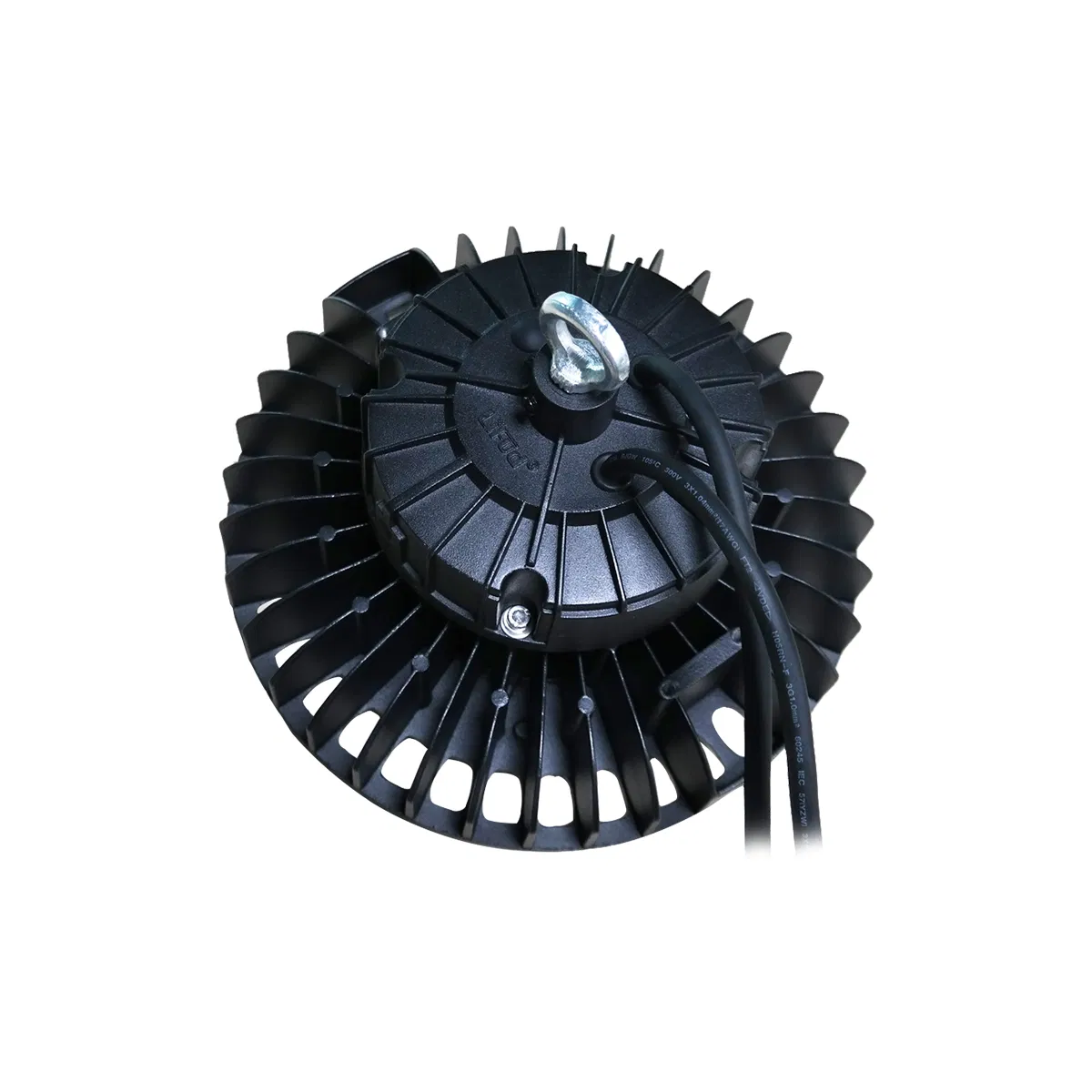

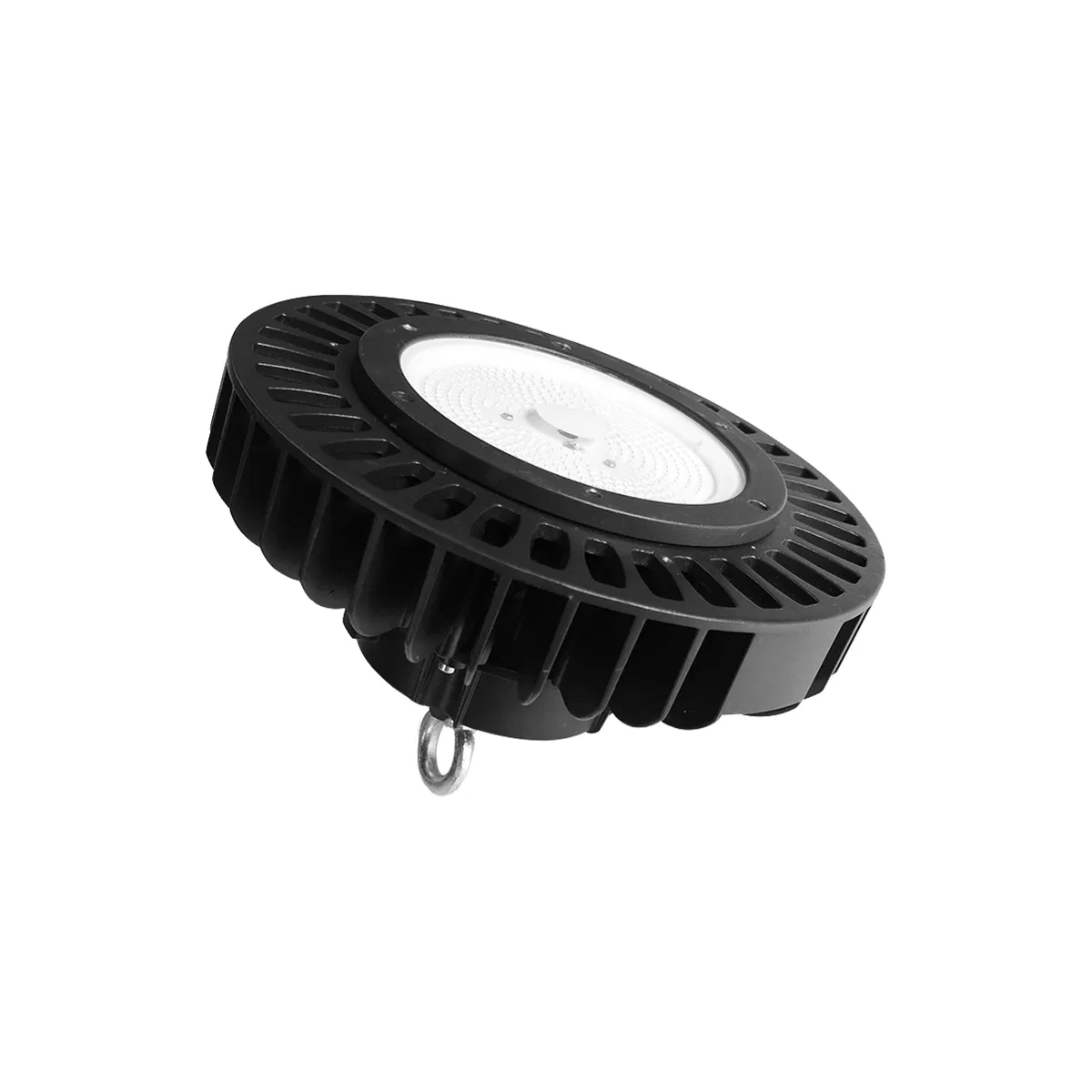

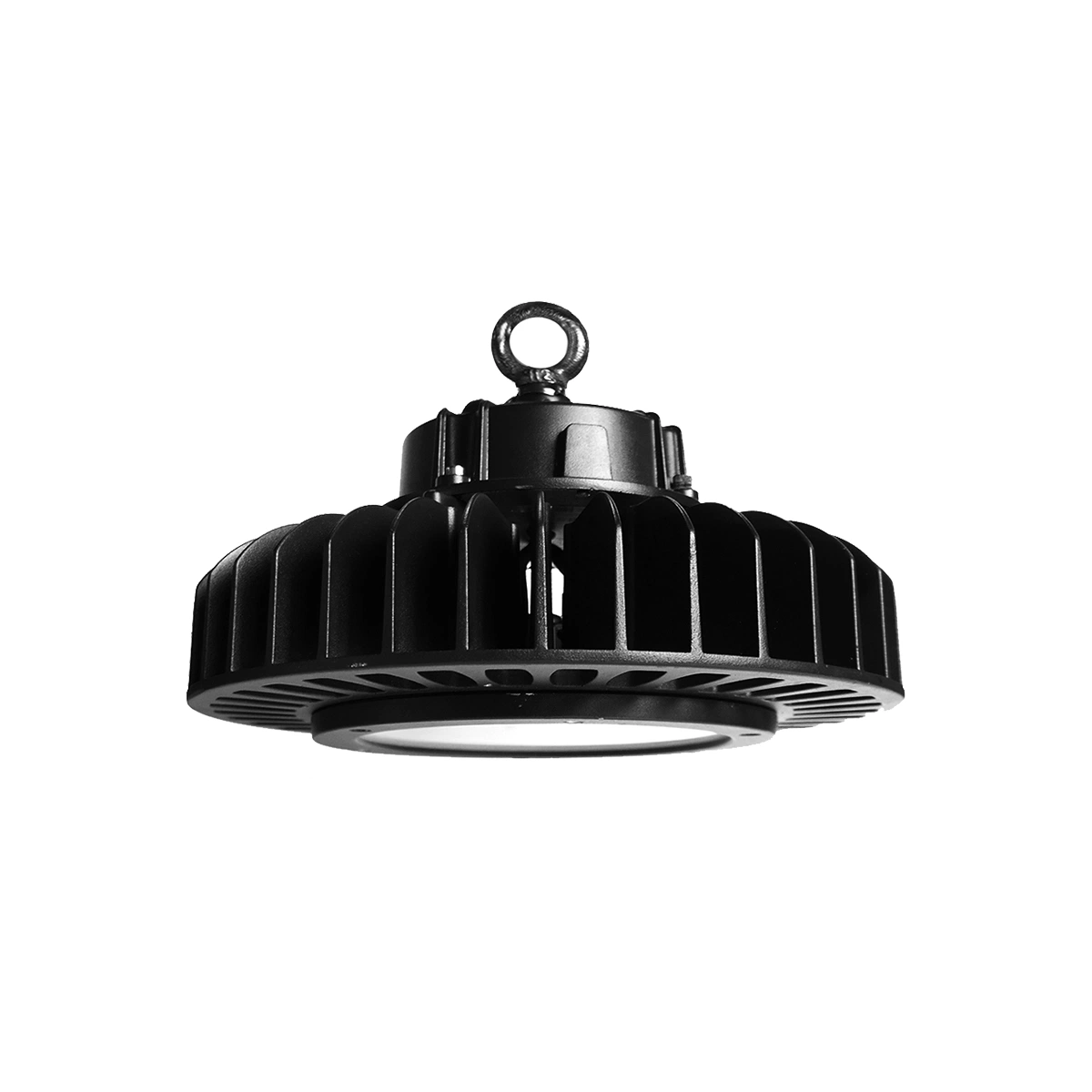

Sensor Dimmable 150lm/W IP65 High Bay Light Fixture 80W/120W/150W/200W/240W Linear LED High Bay
Sensor Dimmable 150lm/W IP65 High Bay Light Fixture 80W/120W/150W/200W/240W Linear LED High Bay
Sensor Dimmable 150lm/W IP65 High Bay Light Fixture 80W/120W/150W/200W/240W Linear LED High Bay
Sensor Dimmable 150lm/W IP65 High Bay Light Fixture 80W/120W/150W/200W/240W Linear LED High Bay
Sensor Dimmable 150lm/W IP65 High Bay Light Fixture 80W/120W/150W/200W/240W Linear LED High Bay
1 / 5
Sensor Dimmable 150lm/W IP65 High Bay Light Fixture 80W/120W/150W/200W/240W Linear LED High Bay
Sensor Dimmable 150lm/W IP65 High Bay Light Fixture 80W/120W/150W/200W/240W Linear LED High Bay
Sensor Dimmable 150lm/W IP65 High Bay Light Fixture 80W/120W/150W/200W/240W Linear LED High Bay
Sensor Dimmable 150lm/W IP65 High Bay Light Fixture 80W/120W/150W/200W/240W Linear LED High Bay
Sensor Dimmable 150lm/W IP65 High Bay Light Fixture 80W/120W/150W/200W/240W Linear LED High Bay

Sensor Dimmable 150lm/W IP65 High Bay Light Fixture 80W/120W/150W/200W/240W Linear LED High Bay

Customization: Available
Color Temperature: Cool White
Lamp Body Material: Aluminum Alloy
Send Inquiry

Product Description

Basic Specifications

Model NO.
ATA-HB100W
Power
200W
Lifespan
≥50000H
IP Rating
IP65 / IP67 / IP68
Beam Angle
120°
LED Chips
Nichia / SMD3030
LED Driver
Meanwell HBG Series
Material
Pure Aluminium 1060
Warranty
5 Years
Certification
CE, C-tick, EMC, ETL, FCC, GS, LVD, PSE, RoHS, SAA
💡 High Efficiency

Up to 170lm/W

🛡️ IP65 Waterproof

Durable Protection

⏱️ Long Life

50,000+ Hours

🏅 5-Year Warranty

Guaranteed Quality

Technical Features

  • LED Type: SMD3030/5050/2835 (LM80 TM21 Certified)
  • Input Voltage: 100-277V AC
  • PF: >0.95 | THD: <15%
  • CRI: > 80
  • Dimmable: 0-10V Support
  • Working Temp: -30°C to +50°C
  • Optical Lens: One-piece PC lens (Transmittance >95%)
  • Appearance: Simple UFO shape, Anodized housing
Power 100W 150W 200W 240W
Power Consumption 100W±5W 150W±5W 200W±5W 240W±5W
Luminous Flux 15000LM 22500LM 36000LM 27000LM
Luminous Efficacy 140-170LM/W
Net Weight 3.2kg 4.2kg 5.5kg 6.5kg
Size (Dimensions) ¢260*135MM ¢260*135MM ¢290*157MM ¢290*157MM

Product Gallery

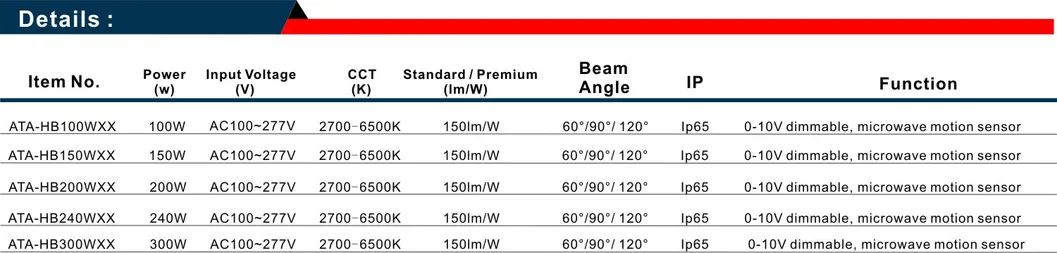

High Bay Technical Data

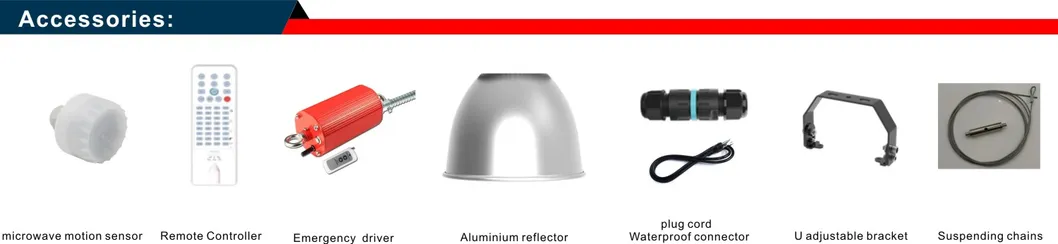

Dimmable Features

Installation & Applications

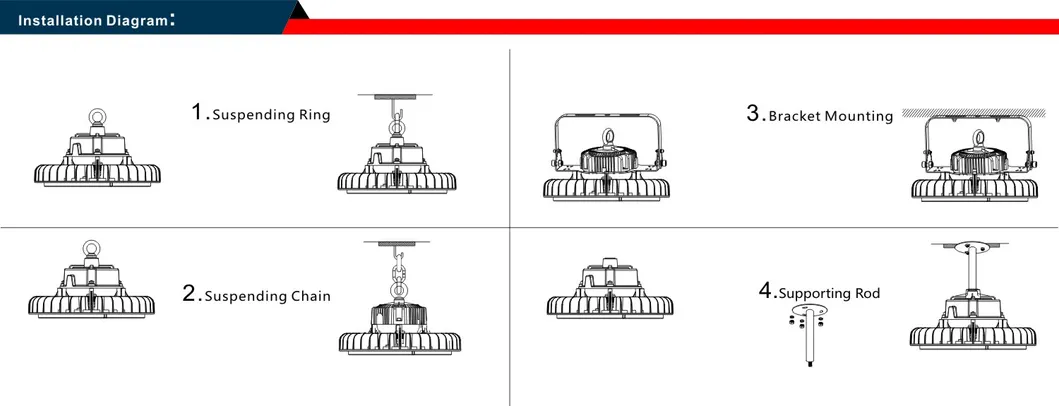

Mounting Options: Loop & Hook hanging / Wall mount / Surface mount / Rack mount

Installation Method 1

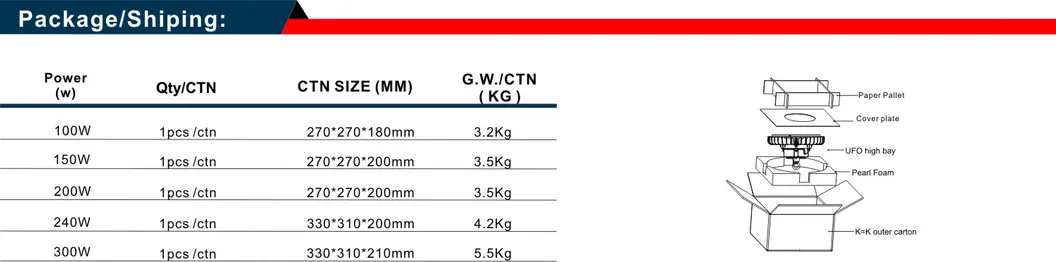

Installation Method 2
Factories Warehouses Gyms & Stadiums Shopping Malls Airports Gas Stations Exhibition Halls

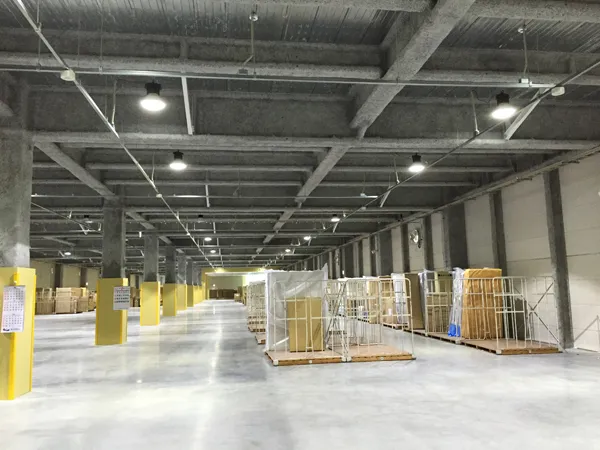

Application Case 1

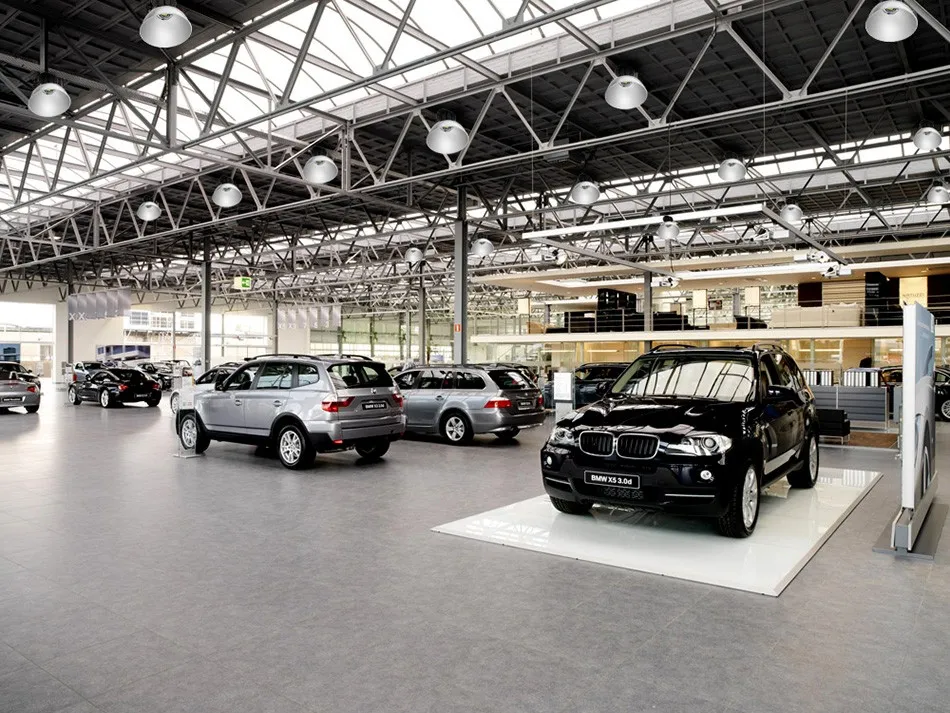

Application Case 2

Quality Assurance

Our products undergo rigorous testing to ensure maximum reliability:

  • Stability Test: 100% of lamps undergo a 48-hour aging test.
  • Lighting Test: 100% of lamps are tested for functionality before packing.
  • Drop Test: Each package is verified for protective integrity.

Frequently Asked Questions

What is the expected lifespan of the UFO LED High Bay Light?
The product features a long lifespan of over 50,000 hours (@L70) at 30ºC, ensuring years of maintenance-free operation.
Is this light fixture suitable for humid or outdoor environments?
Yes, the light is IP65 rated (with options for IP67/IP68), making it waterproof and dust-resistant, ideal for tunnels and outdoor circumstances.
What power options are available for this model?
We offer a range of power options including 100W, 150W, 200W, and 240W to suit different ceiling heights and lighting requirements.
Does the product support dimming?
Yes, this LED high bay light supports 0-10V dimming, allowing for flexible light intensity control and additional energy savings.
What certifications does the lighting fixture have?
Our products are fully certified with UL, cUL, DLC, ETL, TUV, GS, CB, SAA, FCC, CE, and RoHS standards.
What kind of warranty is provided?
We provide a comprehensive 5-year quality warranty for this product, covering all major components.
