Technical Specifications

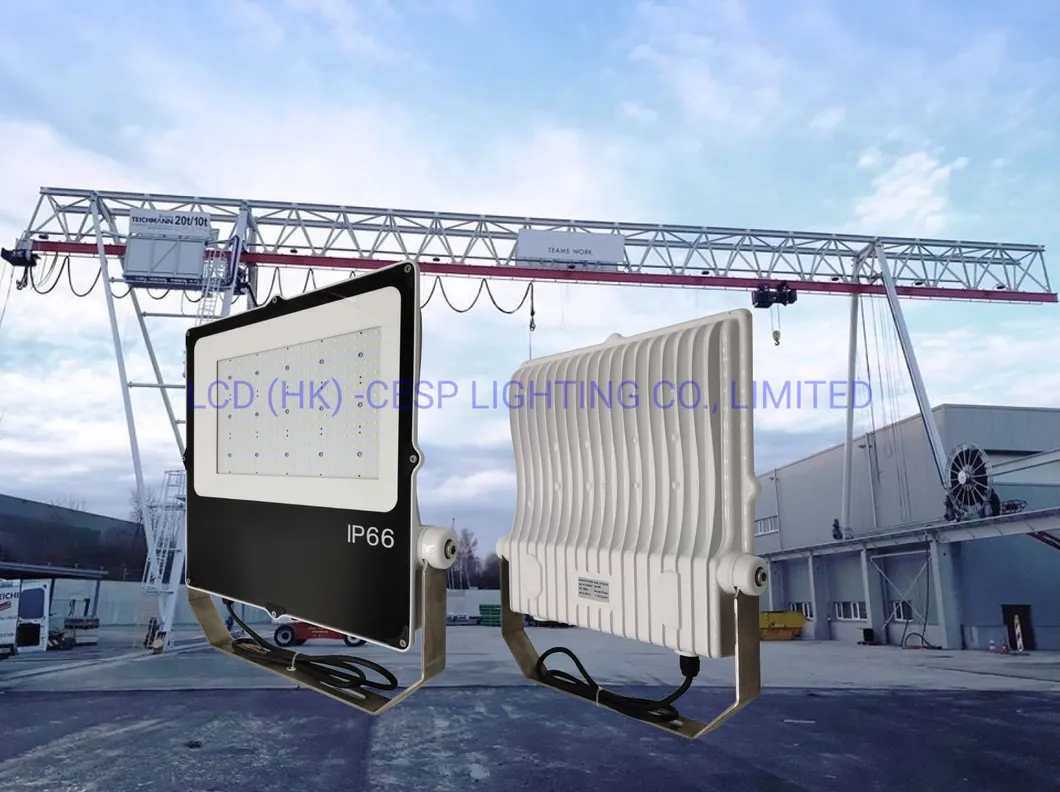

Projection Distance
18-25m
Application
Park, Square, Factory, Garden, Fishing Boat
Certification
CE, C-tick, EMC, Energy Star, ETL, LVD, PSE, RoHS, SAA, TUV
Operating Voltage
100-240V
Transport Package
Carton Box
Specification
220x180x88 mm
Production Capacity
50000PCS / Year
Product Overview

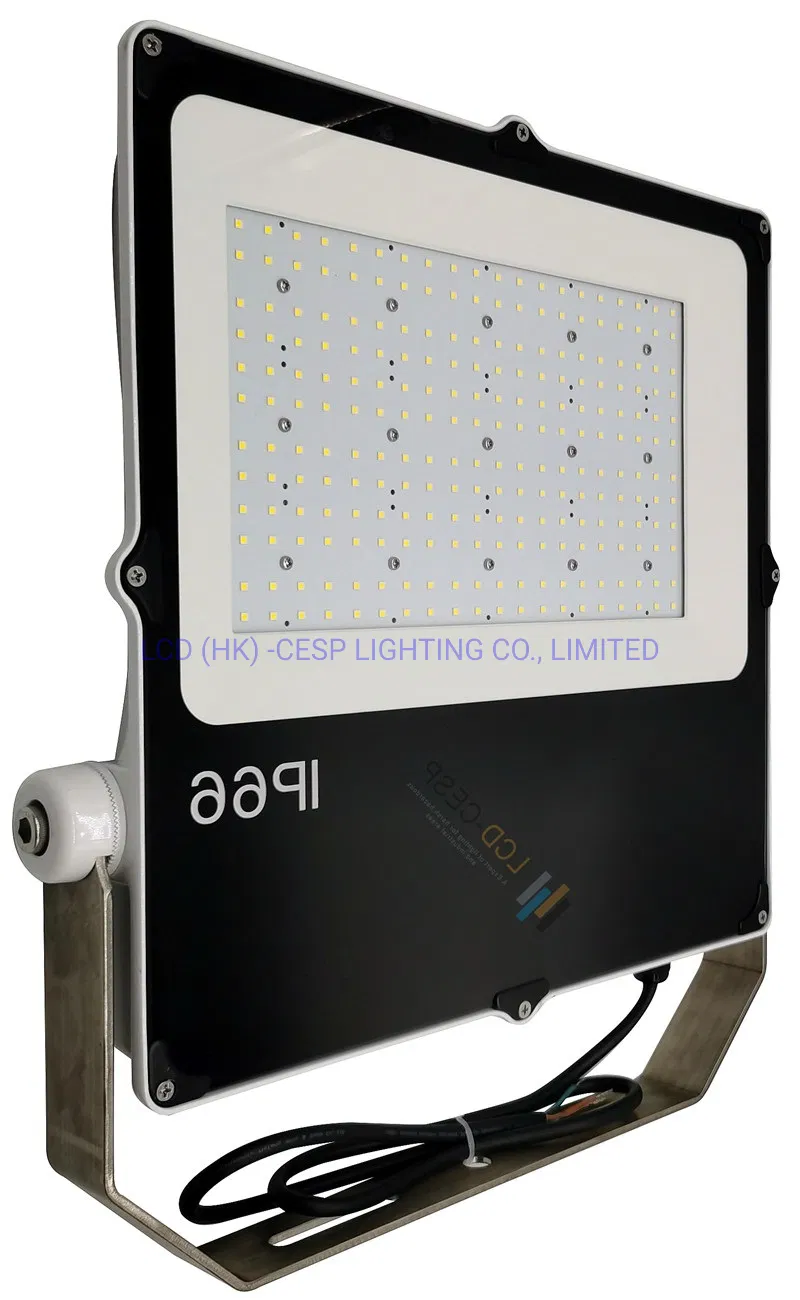

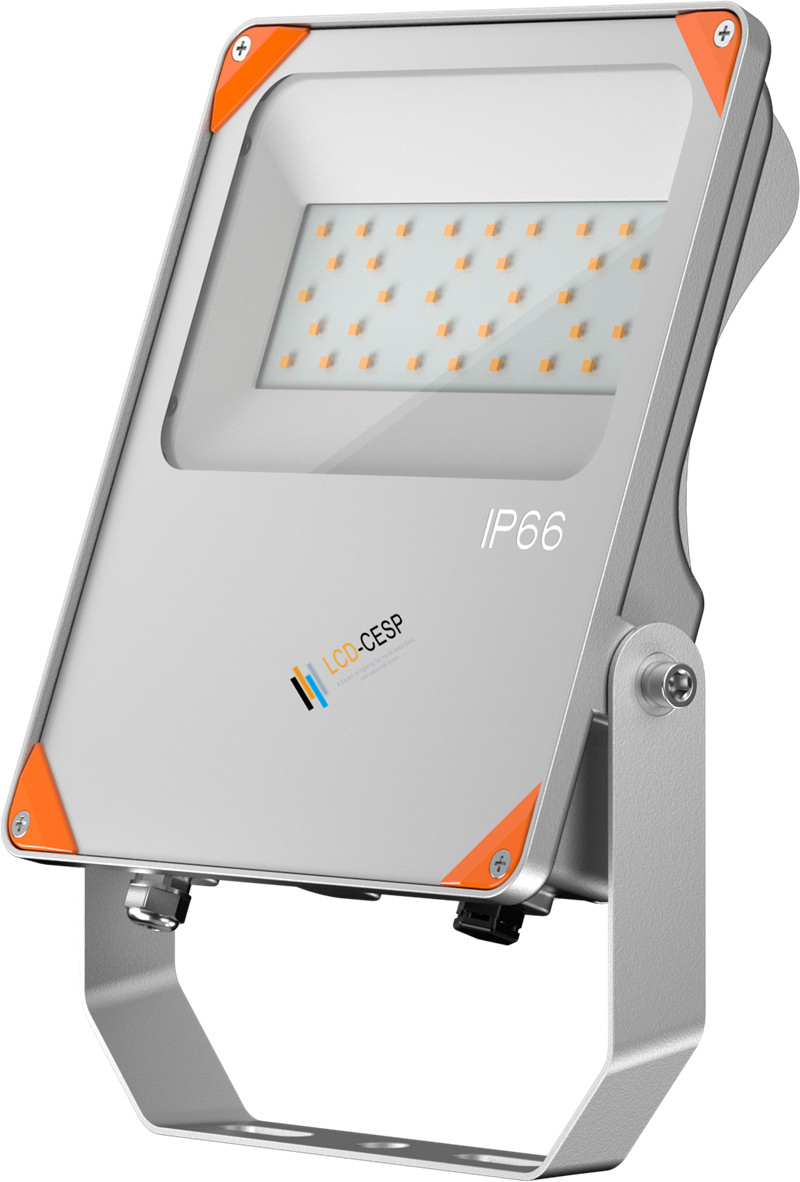

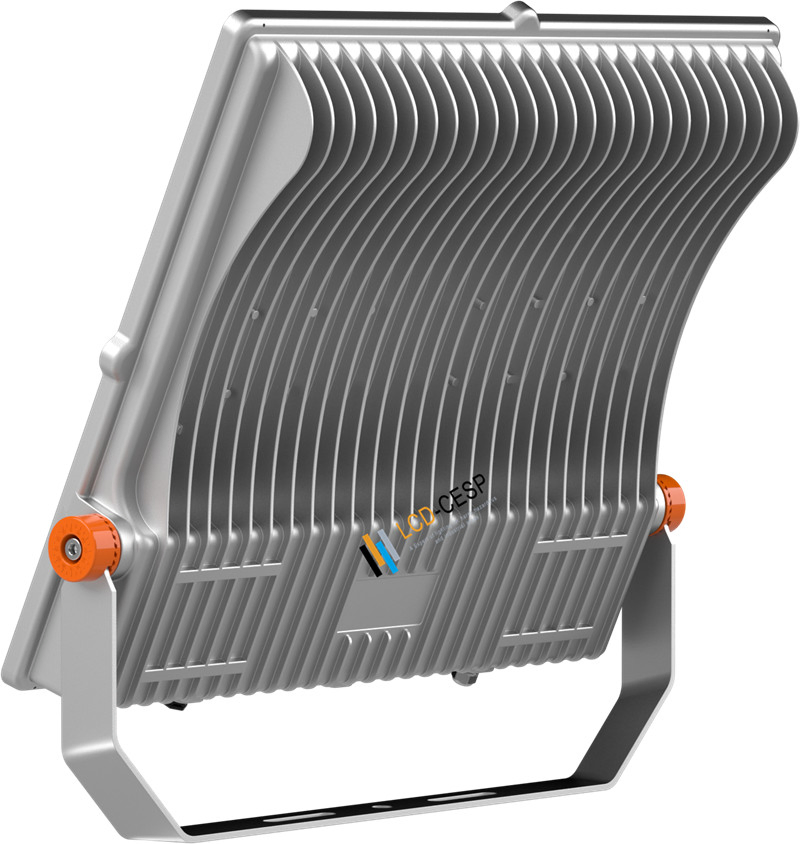

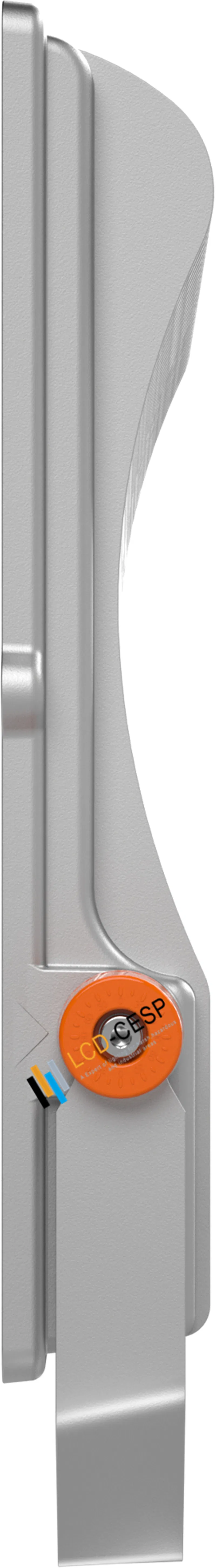

30 Degree IP67 3000K Warm White Marine LED FloodLights
High-performance LED marine flood lights designed for demanding environments, featuring 150-watt power and an optimized 30-degree optic beam. Operates within 100-277VAC delivering 24,750lm with IP67 protection.

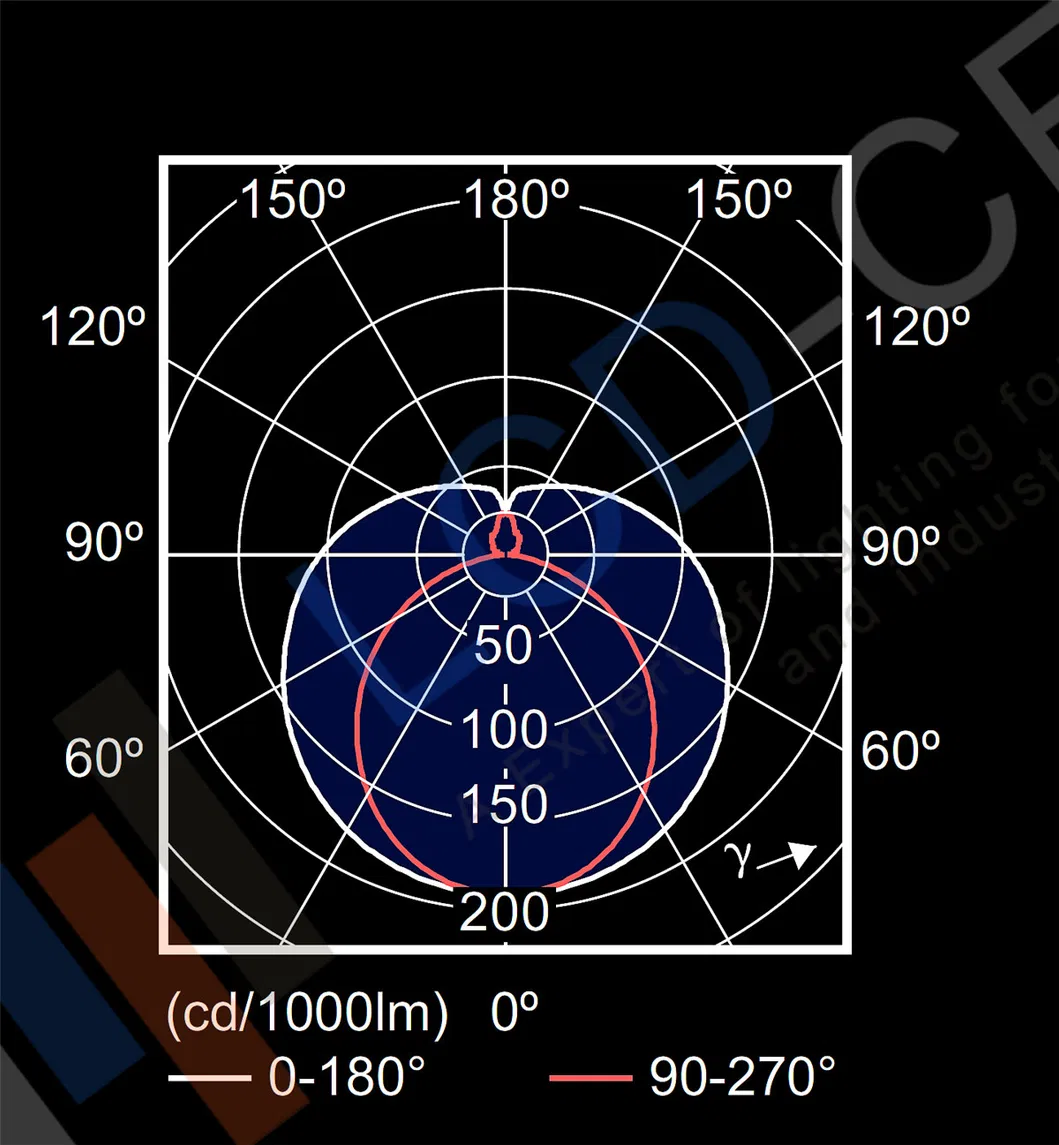

| Optics Information |
Mounting Options |
- LED colour temperature: 3000K, 4000K, 6500K
- CRI: >80 (Warm/Neutral), >75 (Cool)
- ULOR: 0%
|
- Adjustable stirrup & Bracket
- Weight: 15kg
- Mounting height: 5-40 m
- Operating temp: -40°C to +50°C
|
ELECTRICAL & STANDARDS
- Voltage Range: 100-277VAC, 50-60Hz
- Power Factor: >0.95 | Surge Protection: up to 6KV
- Control Protocols: 1-10V, DALI Support
- Compliance: CE, RoHS, EN 60598, EN 62471, Directive 2014/30/EU

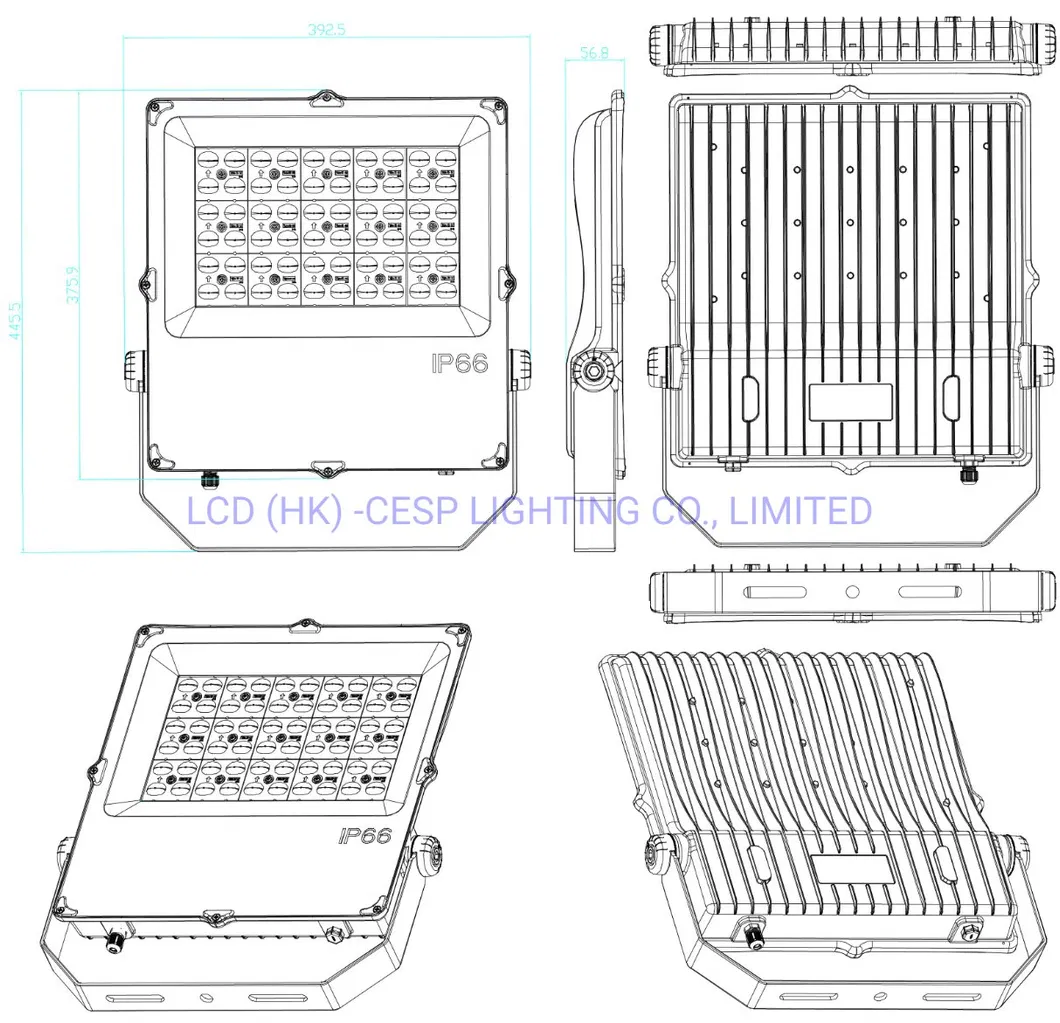

Dimensions & Weight Data
| Item Name |
Size (AxBxC MM) |
Weight (KG) |
| FA-085/105/153 IP67 Flood Light | 389.2x296.7x57 | 3.4 |
| FA-205 IP67 Flood Light | 436.6x345.7x57 | 4.8 |
| FA-255 IP67 Flood Light | 436.6x345.7x57 | 7.2 |
| FA-305/353 IP67 Flood Light | 582x385x60 | 7.5 |

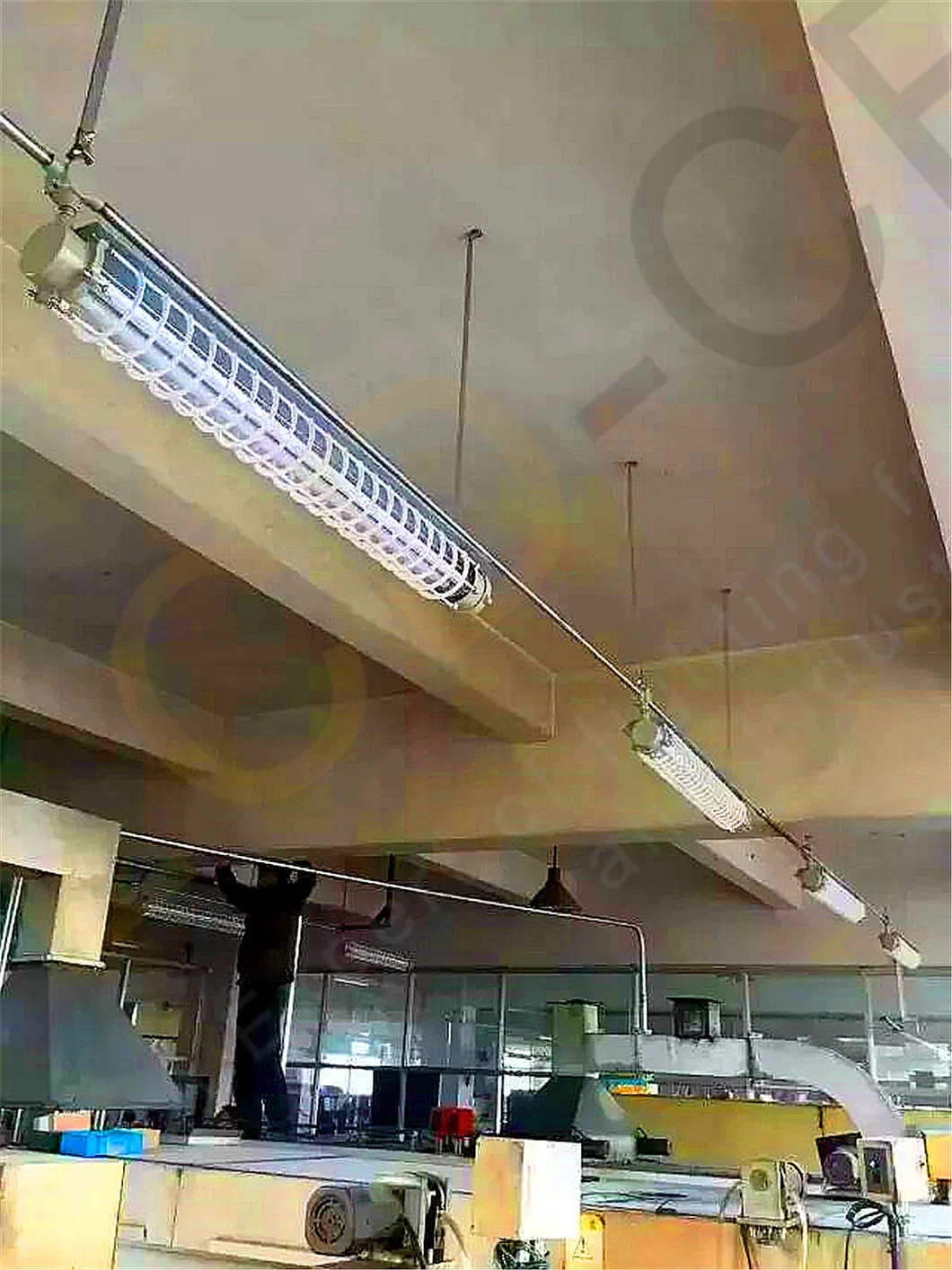

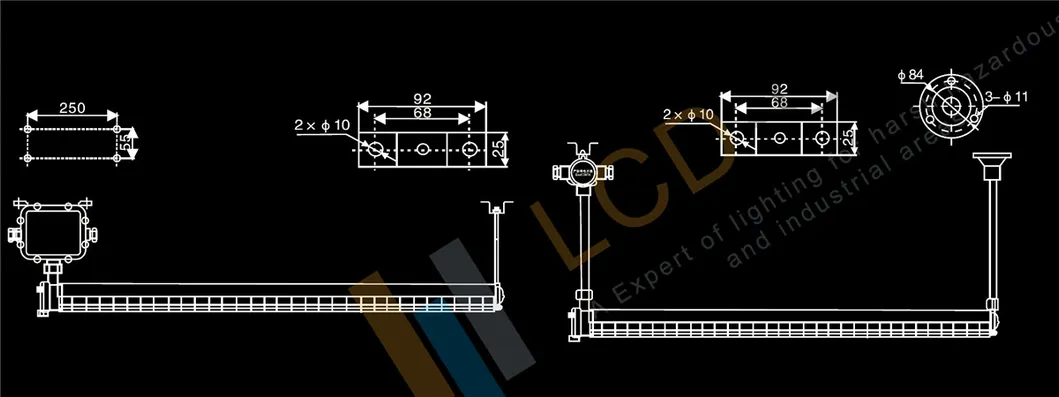

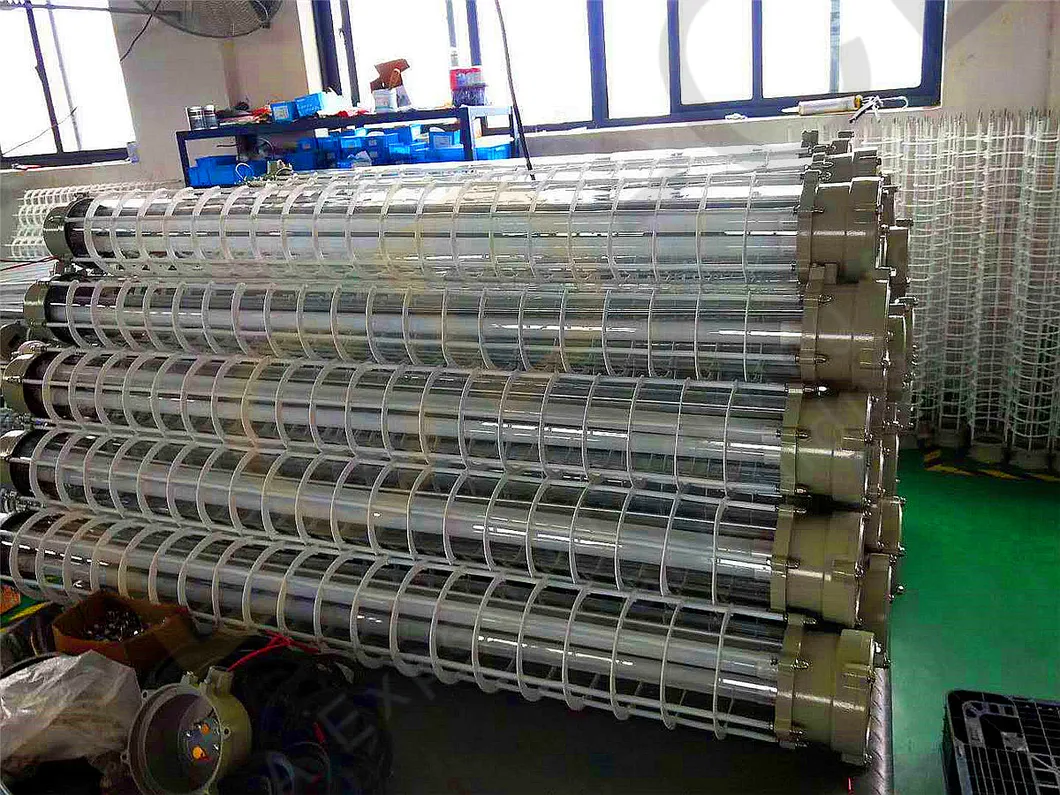

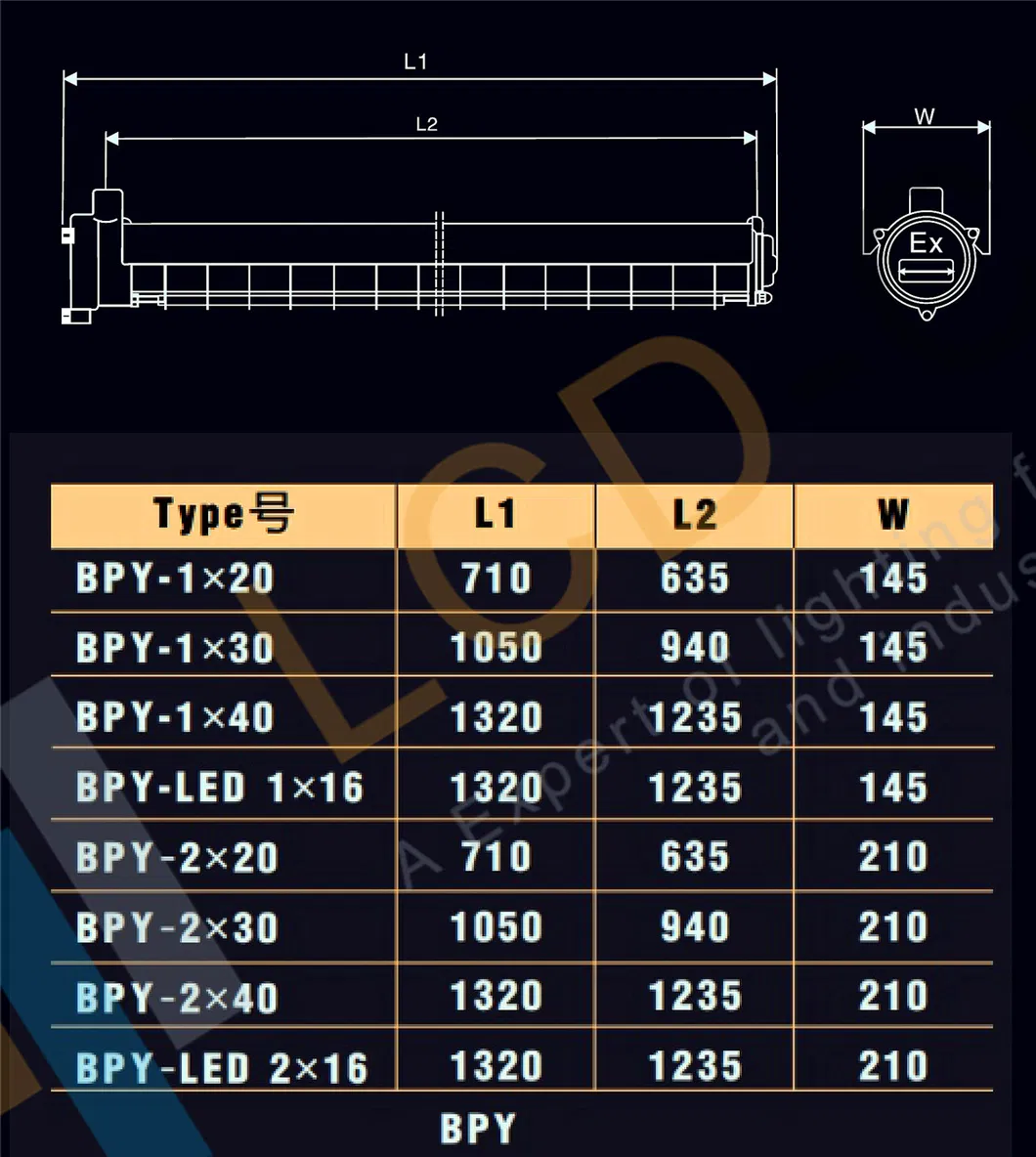

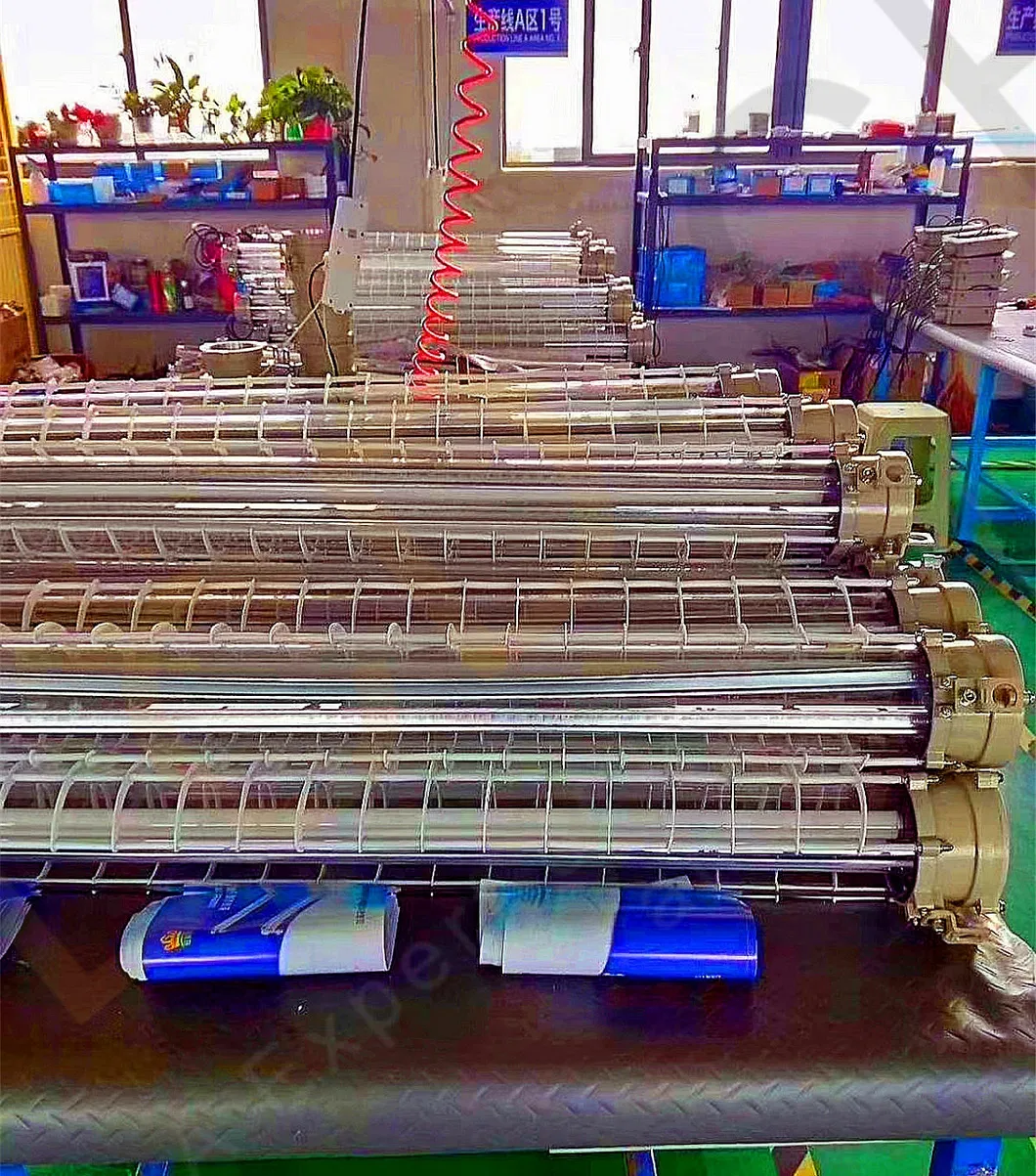

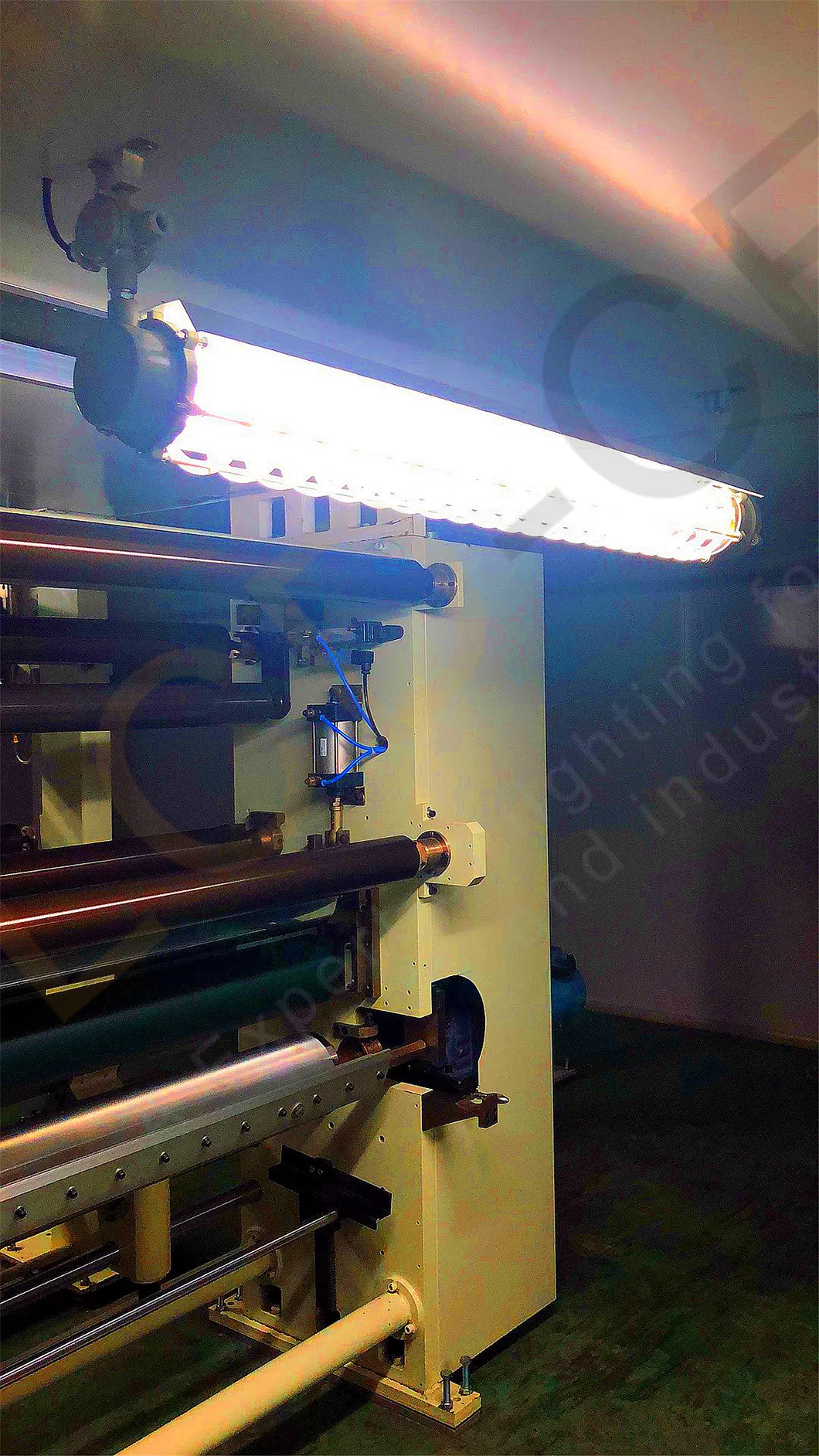

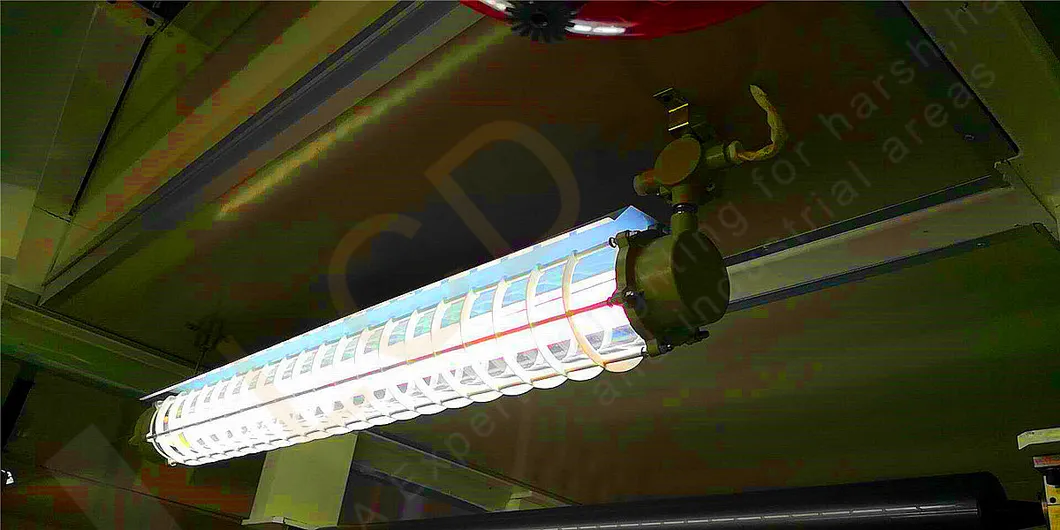

Explosion Proof Solutions
Specialized explosion-proof LED fixtures available in 18W to 78W. Constructed with durable aluminum alloy and 6-9mm tempered glass (IK07) for Zone 1 & 21 and Zone 2 & 22 hazardous locations. High efficiency up to 110 lumen/w with Cree brand chips.
Key Features
- Shell: High-voltage electrostatic sprayed aluminum alloy.
- PC Lampshade: High transmittance with anti-glare design.
- Sealing: Dustproof, waterproof, and anti-corrosion properties.
- Constant Current: Wide voltage input with short circuit protection.
- Emergency Device: Automatic switch-to-emergency state available on request.

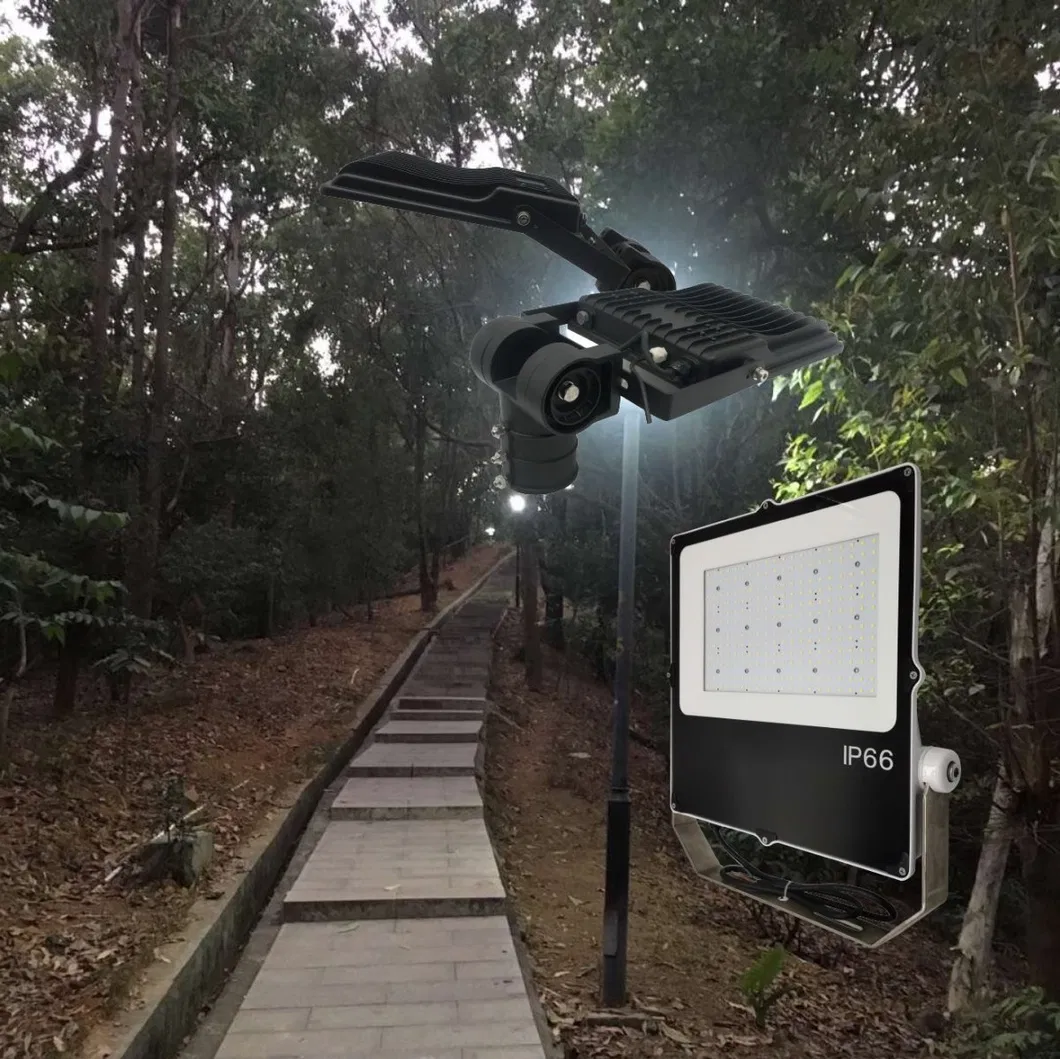

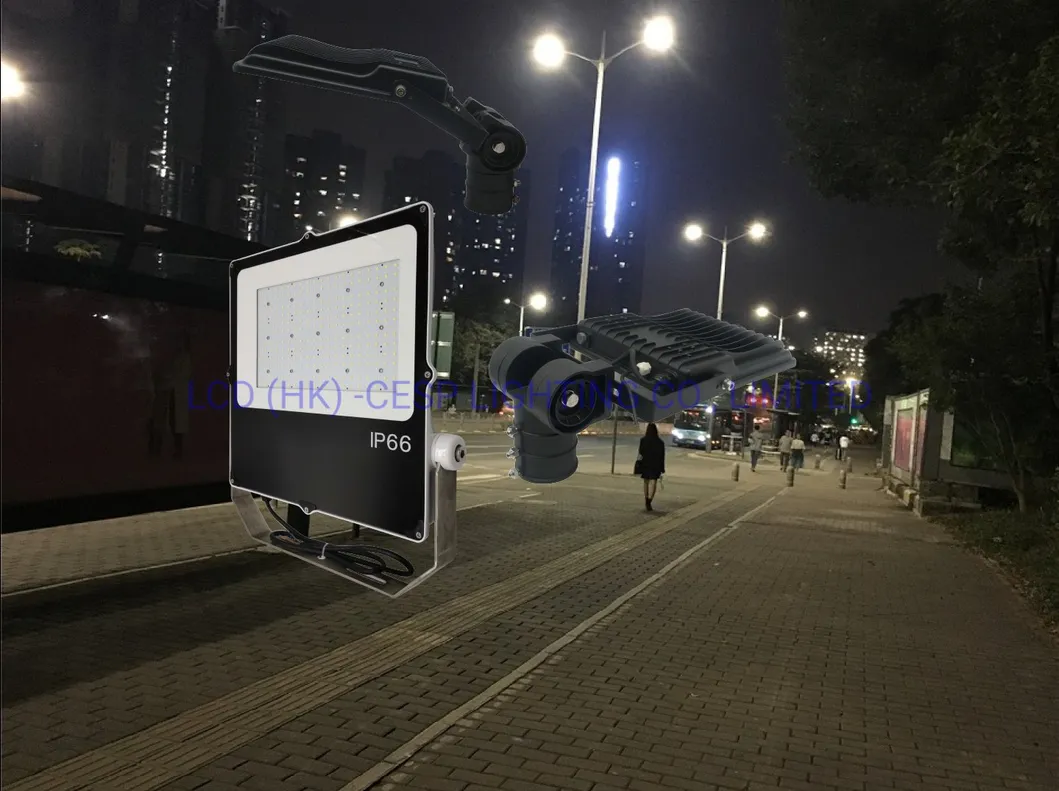

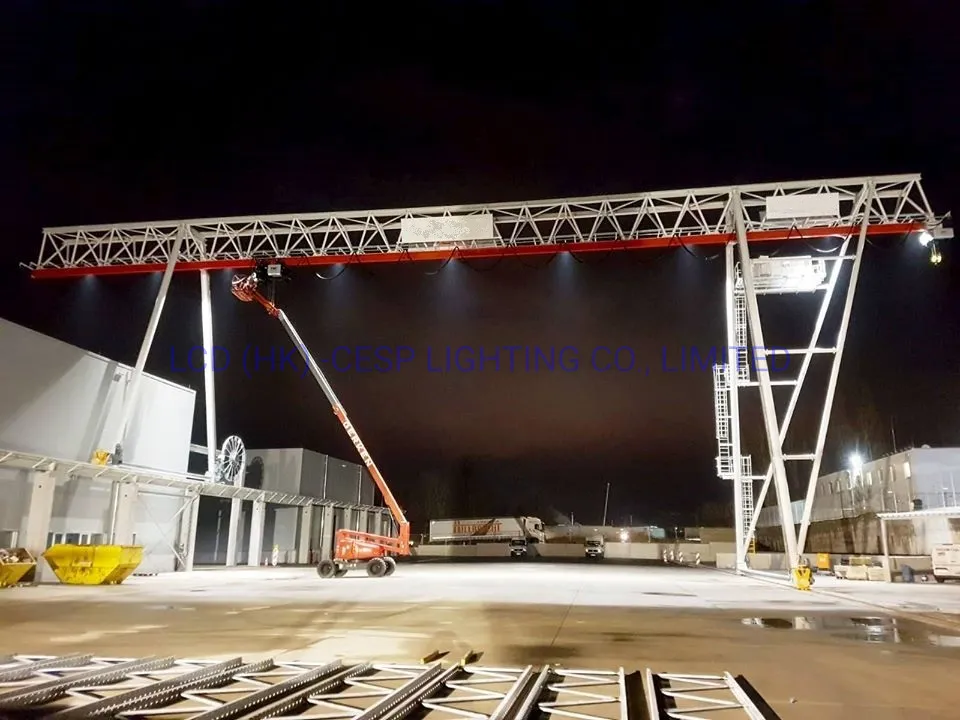

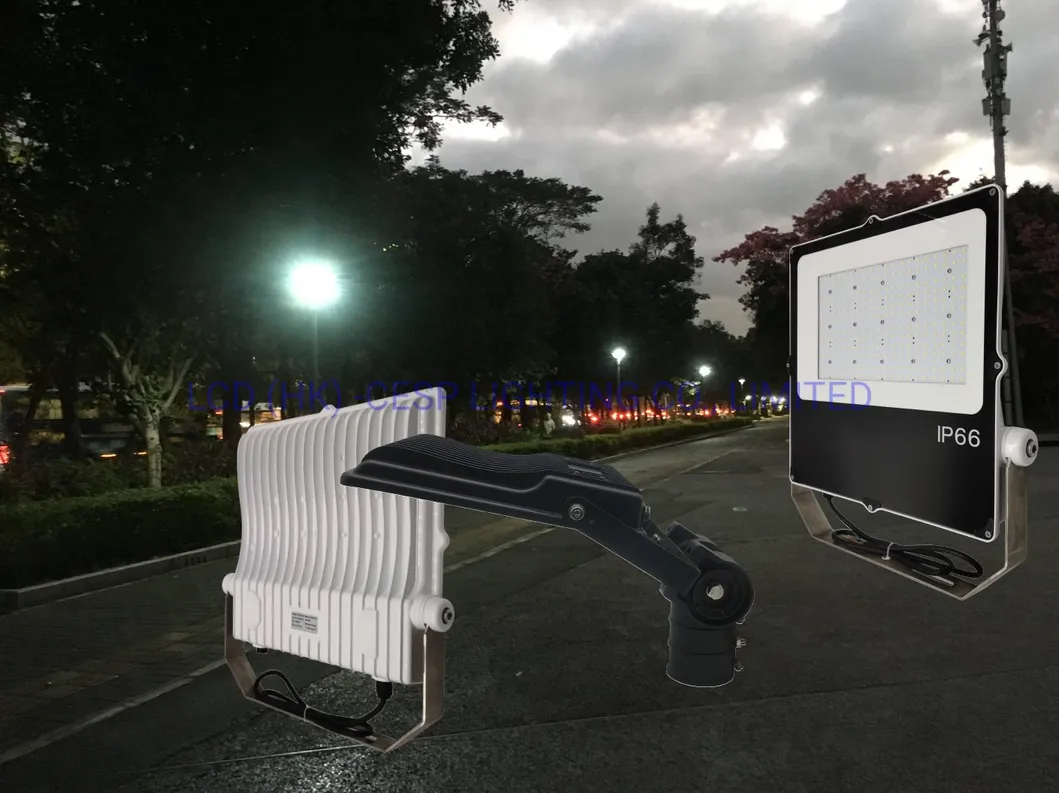

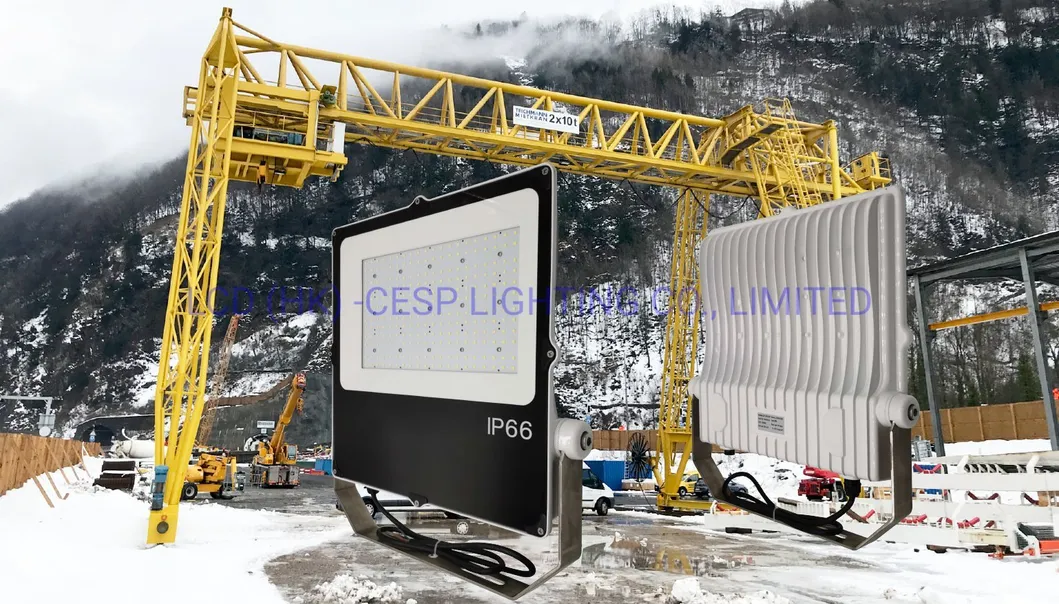

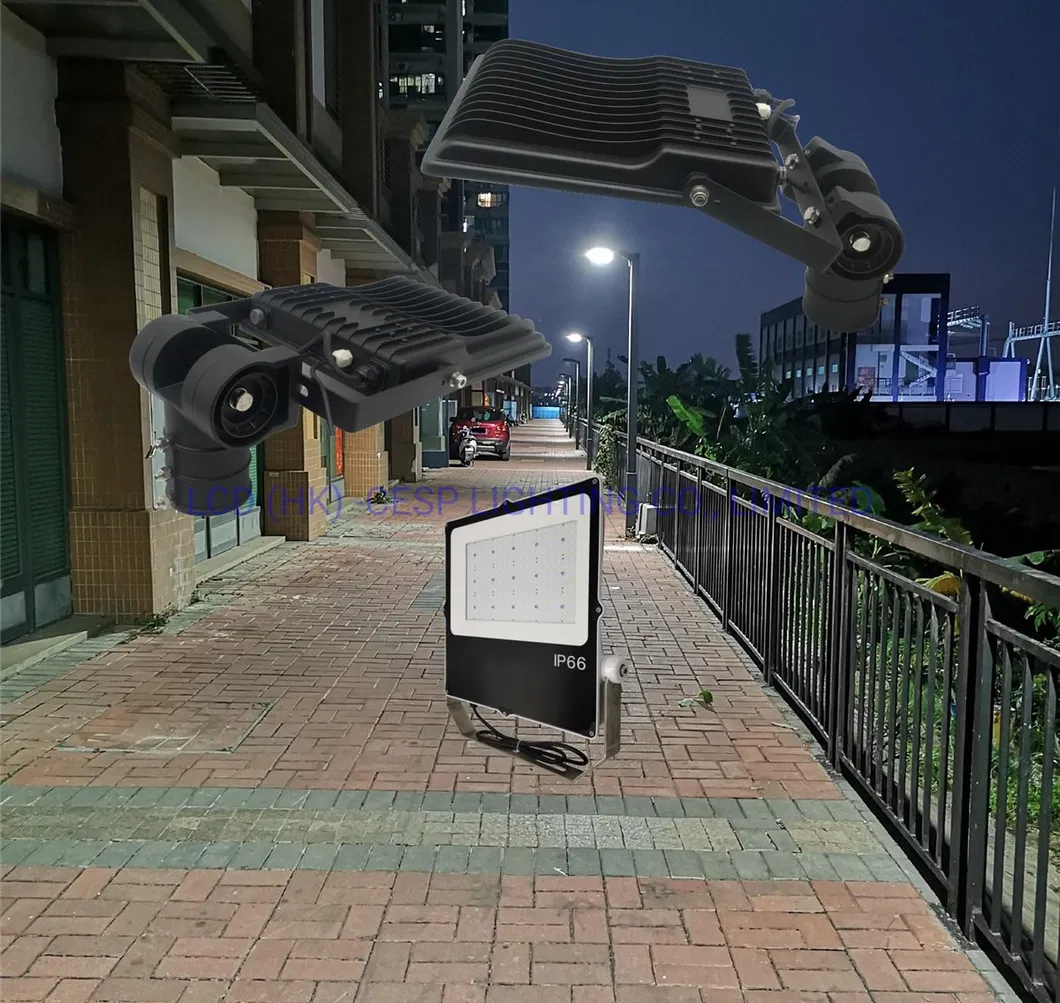

Area & Landscaping Floodlights
Slim high-power LED flood lights for large outdoor spaces. Ideal for architectural facades, parking lots, and landscaping.
| Wattage |
100W |
150W |
200W |
250W |
| Efficiency | 145-155 lm/w |
| Luminous Flux | 14500 lm | 21750 lm | 29000 lm | 36250 lm |
| CCT | 2800K - 7500K Available |
| IP Rating | IP66 |
| Warranty | 5 Years |

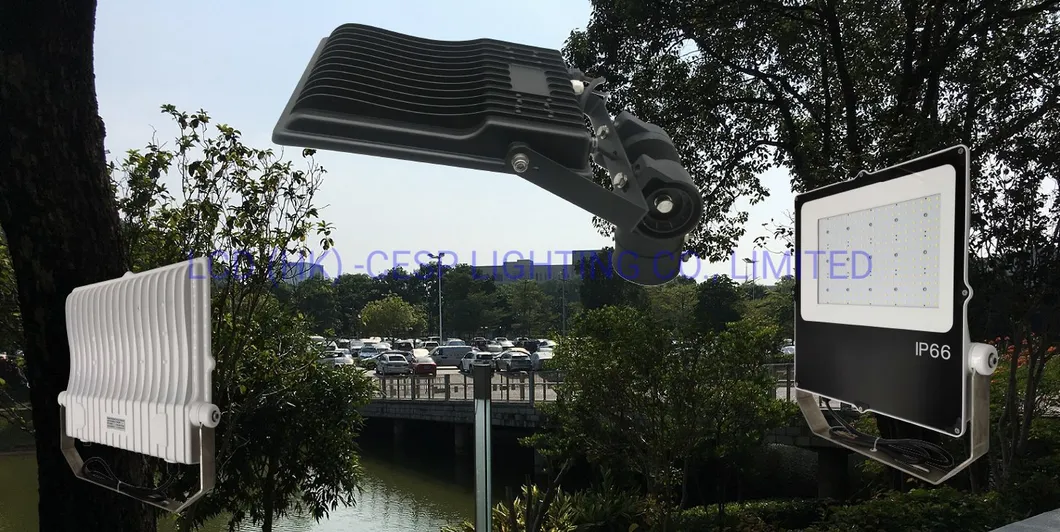

Mechanical & Housing Features

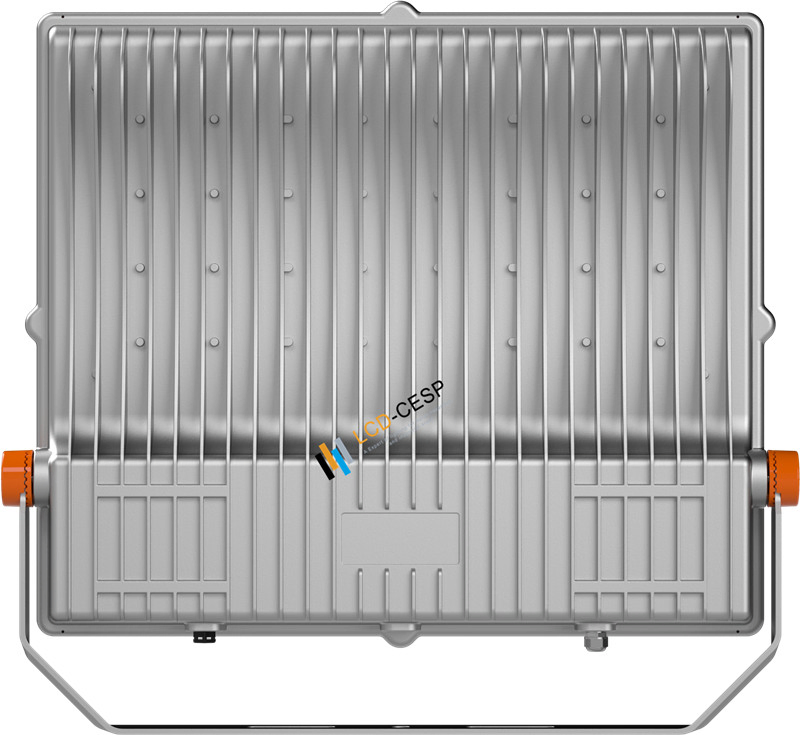

- Body: Low copper content aluminum alloy ADC12 with patent fins for heat dissipation.
- Glass: 6-9mm thick shock-resistant tempered glass.
- Coating: Corrosion-resistant polyester coating (Salt mist tested).

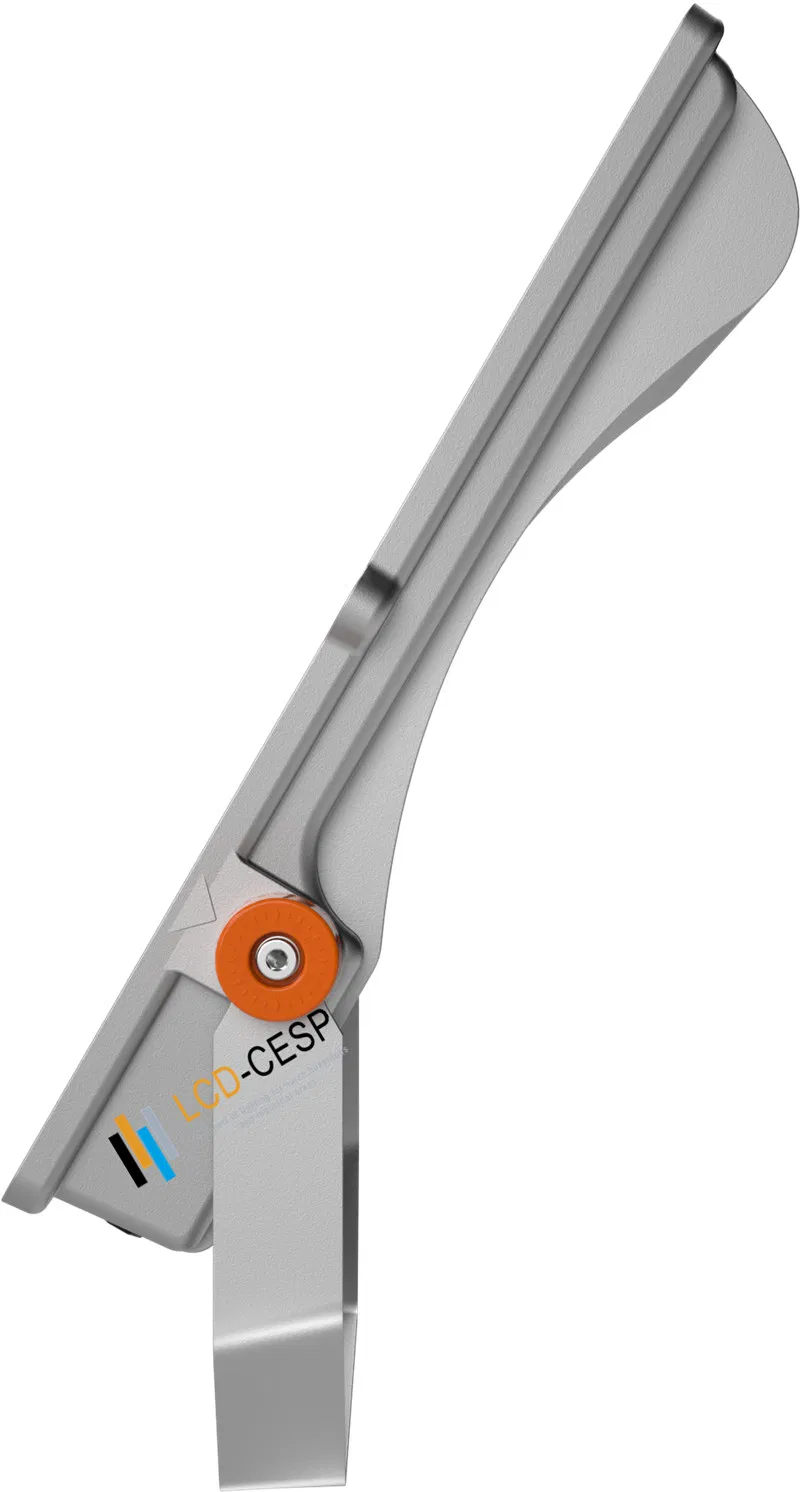

- Mounting: Adjustable galvanized or stainless steel brackets.
Frequently Asked Questions
What are the primary applications for these floodlights?
They are ideal for high-demand environments including parks, squares, factories, gardens, fishing boats, and hazardous industrial locations like oil and gas plants.
What level of protection do these fixtures offer against environmental elements?
These units feature IP66 to IP68 ratings for dust and water ingress protection, and IK07 ratings for mechanical impact resistance, ensuring durability in extreme conditions.
What certifications do the explosion-proof lights carry?
The fixtures comply with ATEX and IECEx standards, and meet European Directives for low voltage and electromagnetic compatibility (EMC).
Can these LED floodlights be dimmed?
Yes, they support various dimming protocols including 1-10V, DALI, PLC, and Triac, as well as motion sensor integration on request.
What is the lifespan and warranty of the product?
The LEDs have an L80 rating of >50,000 hours and the products come with a comprehensive 5-year warranty.
Are the fixtures resistant to corrosion in maritime environments?
Absolutely. The ADC12 aluminum alloy construction passes salt mist tests (EN60068-2-11), making them perfect for marine and coastal applications.
