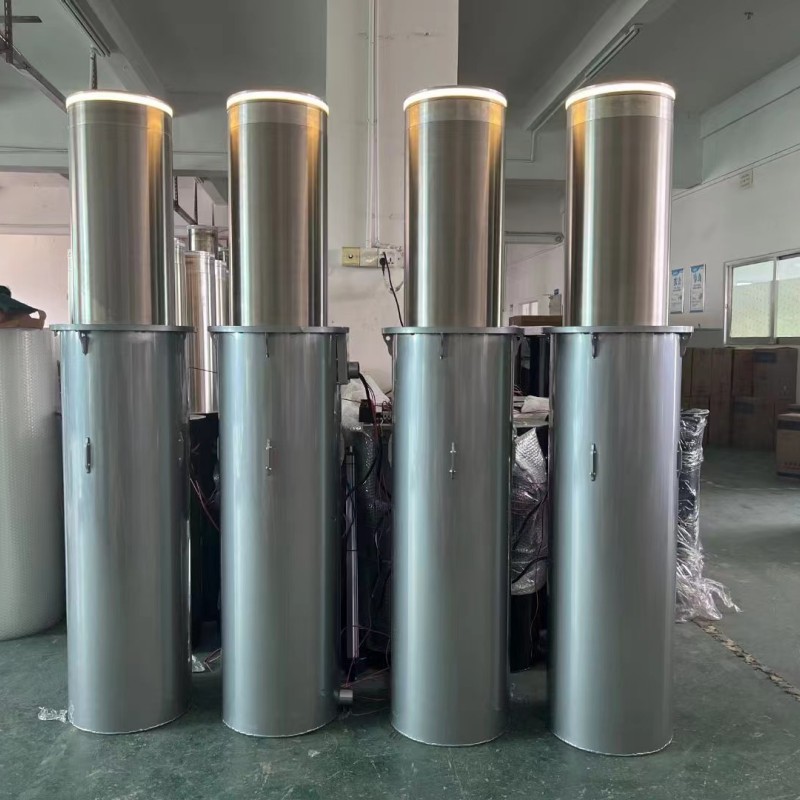

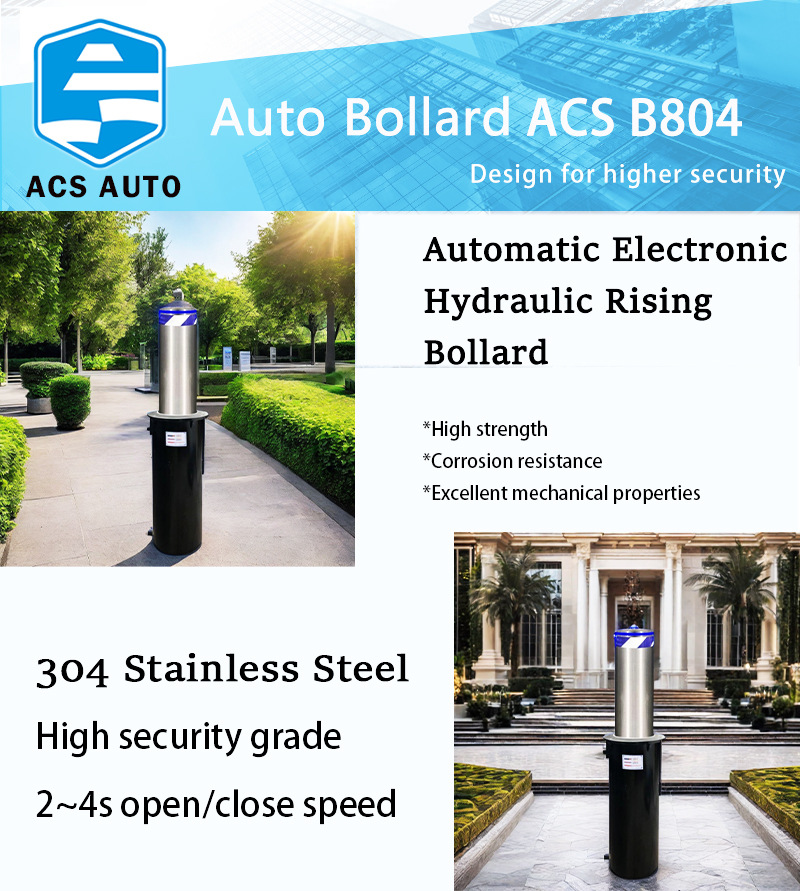

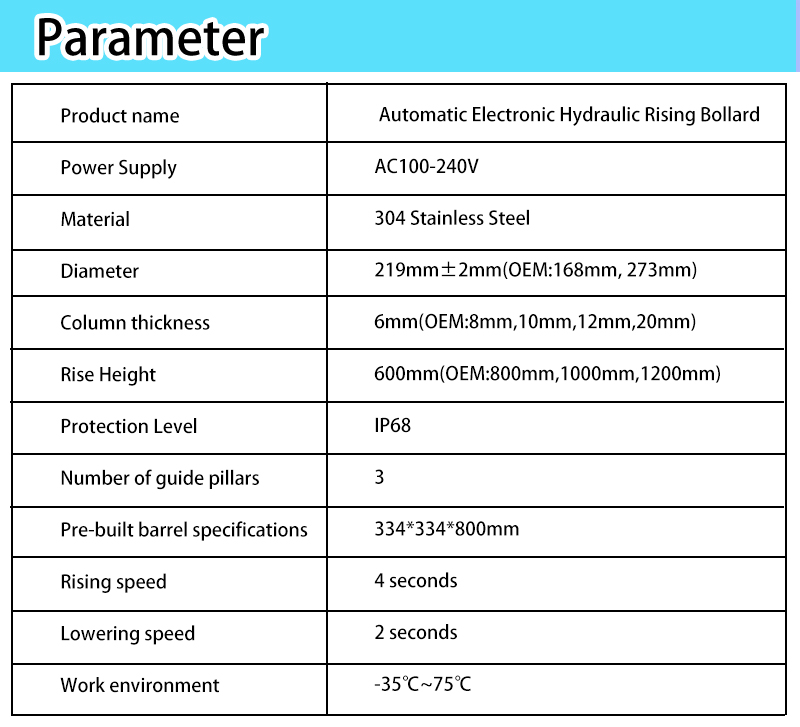

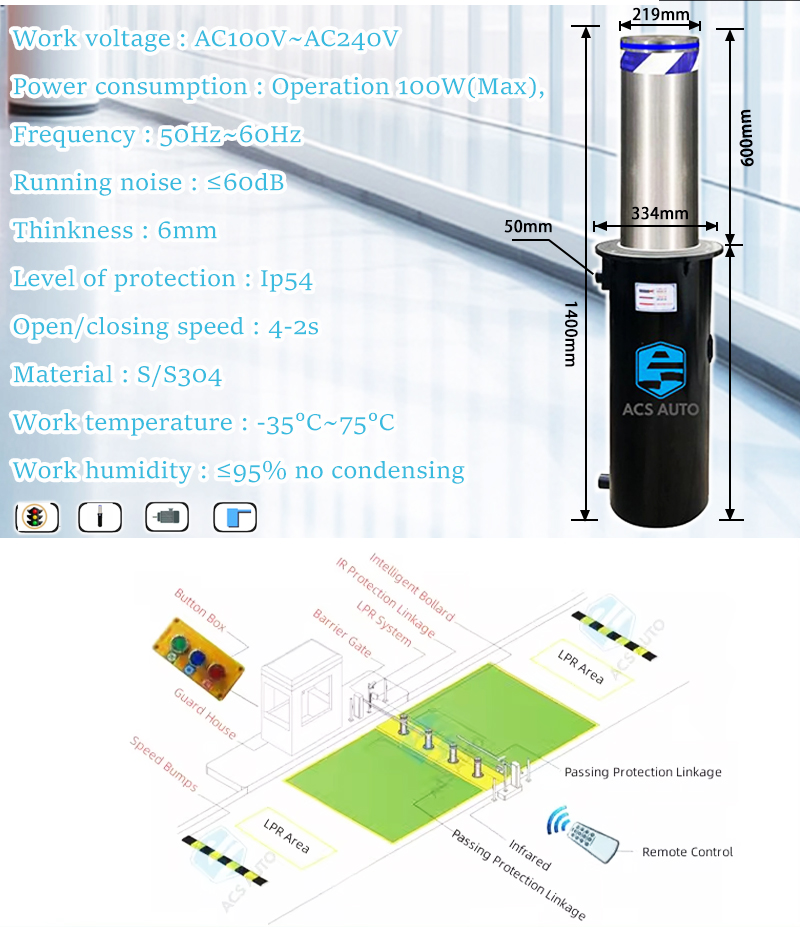

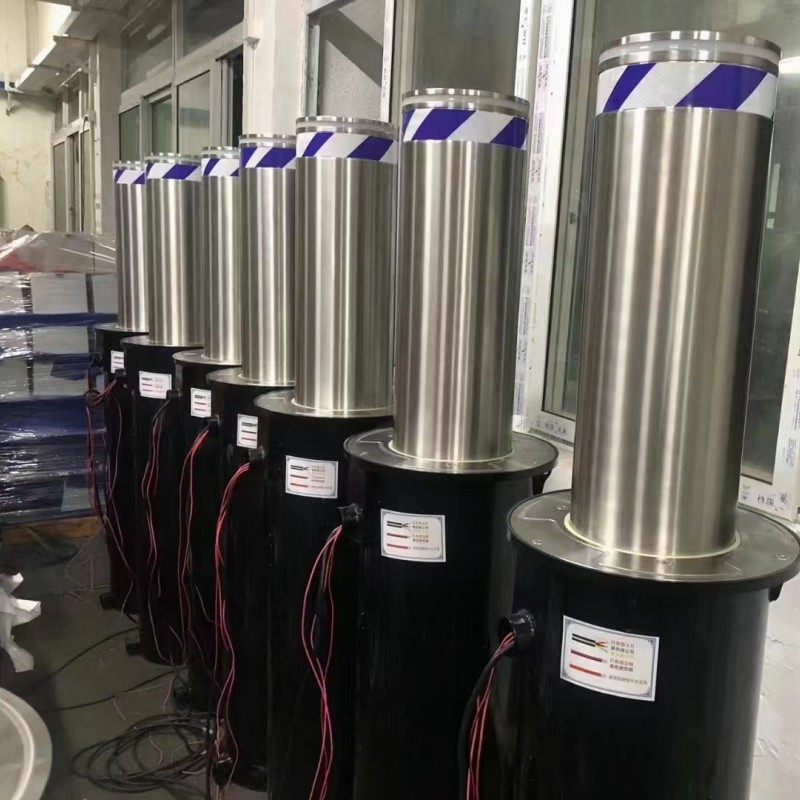

| Item | Automatic Electronic Hydraulic Rising Bollard |
| Place of Origin | Guangdong, China |
| Power Supply | AC100-240V |
| Material | 304 Stainless Steel |

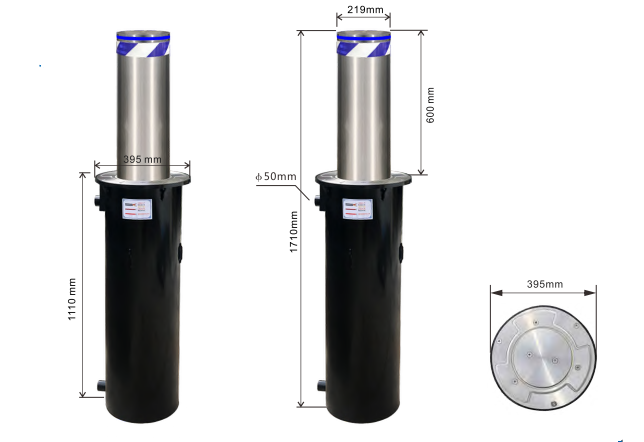

| Diameter | 219mm±2mm (OEM: 168mm, 273mm) |
| Column Thickness | 6mm (OEM: 8mm, 10mm, 12mm, 20mm) |
| Rise Height | 600mm (OEM: 800mm, 1000mm, 1200mm) |
| Protection Level | IP68 |

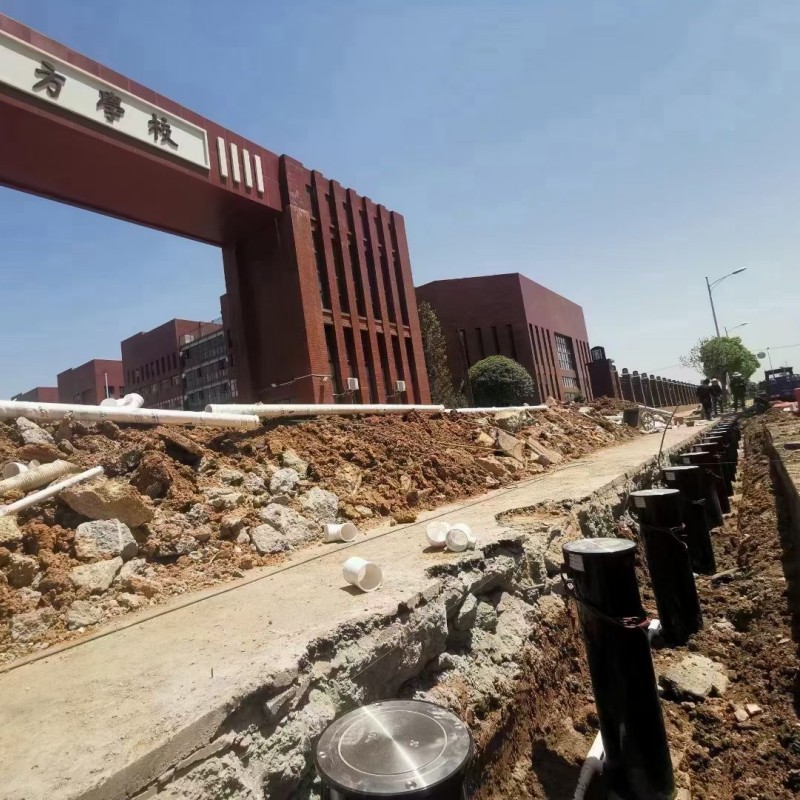

| Pre-embedded Height | 1110mm |
| Weight | 96KG |
| Rising Speed | 4 Seconds |
| Lowering Speed | 2 Seconds |
| Work Environment | -35℃ ~ 75℃ |

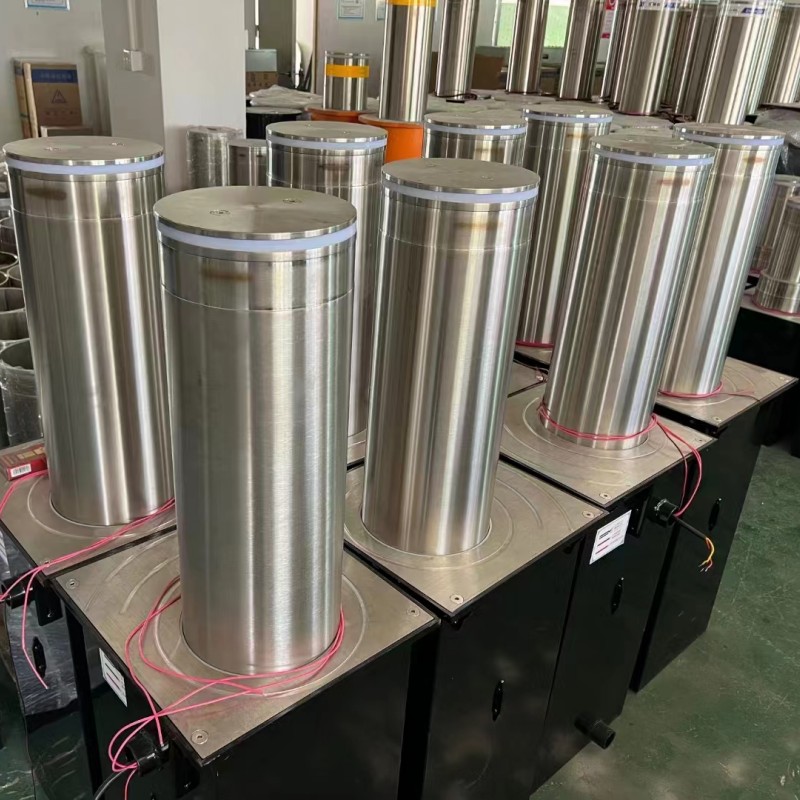

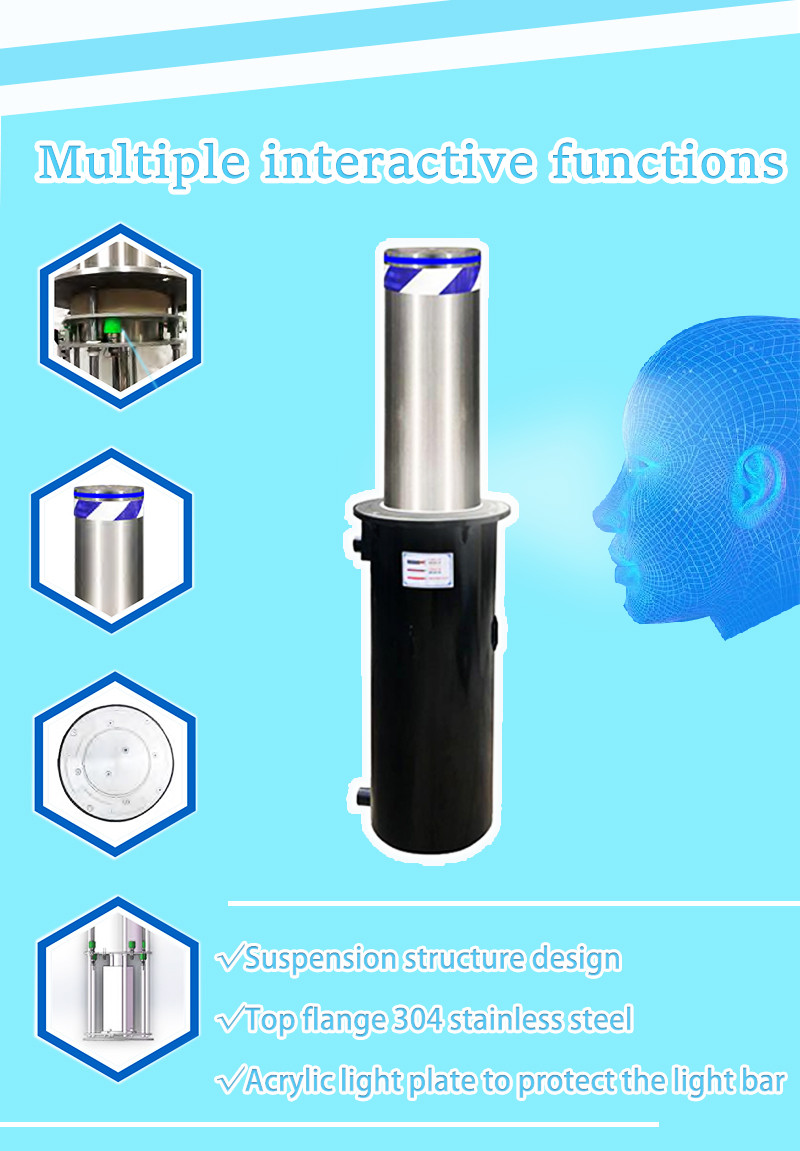

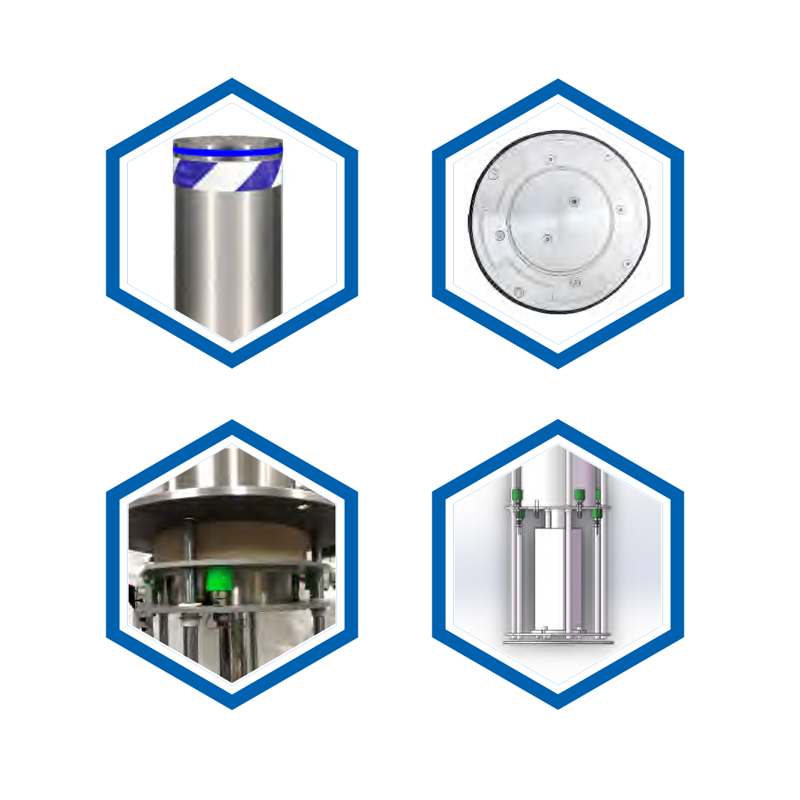

Top flange 304 stainless steel, thickness 10mm using custom reflective film; Acrylic light plate to protect the light bar.

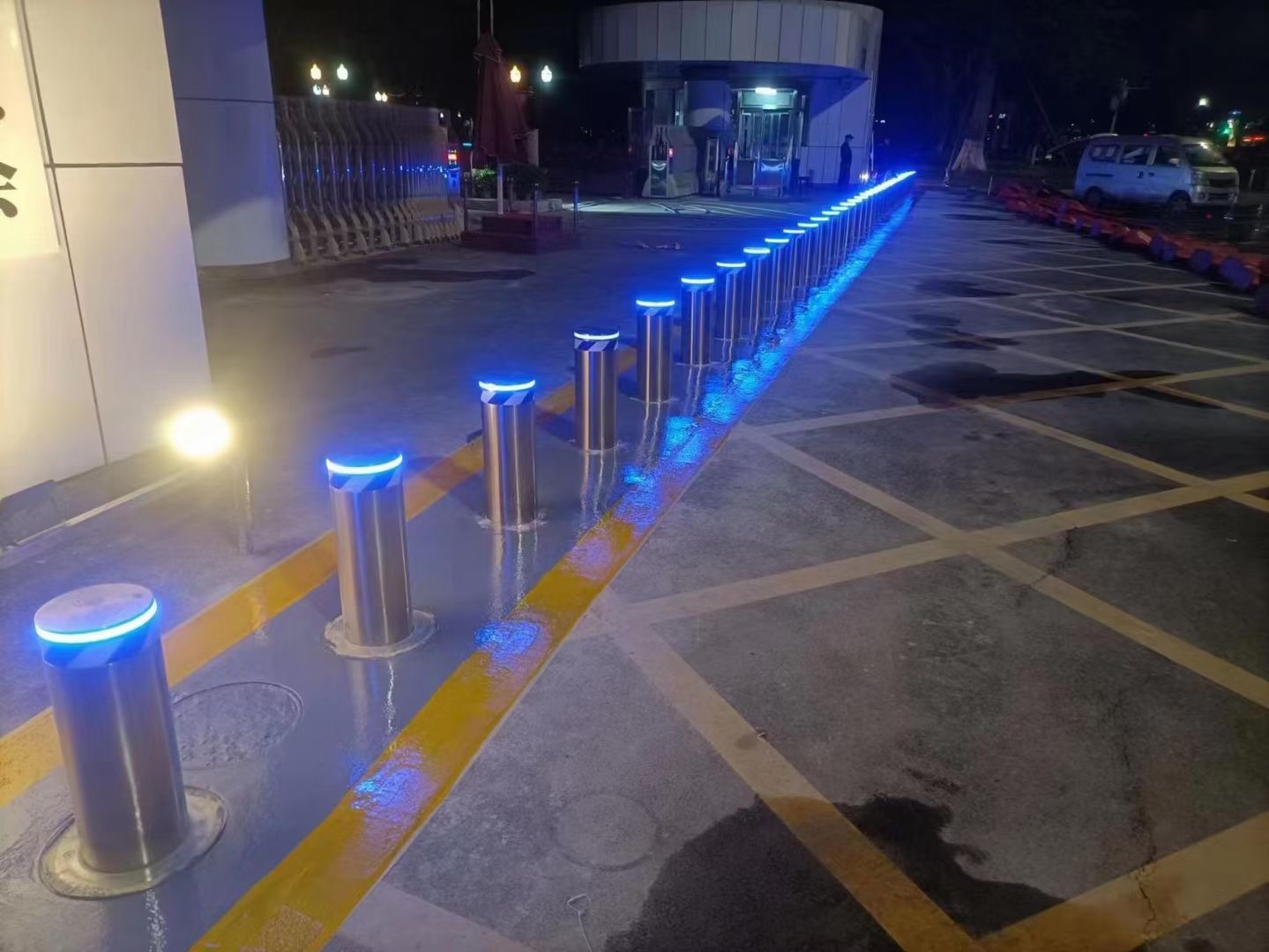

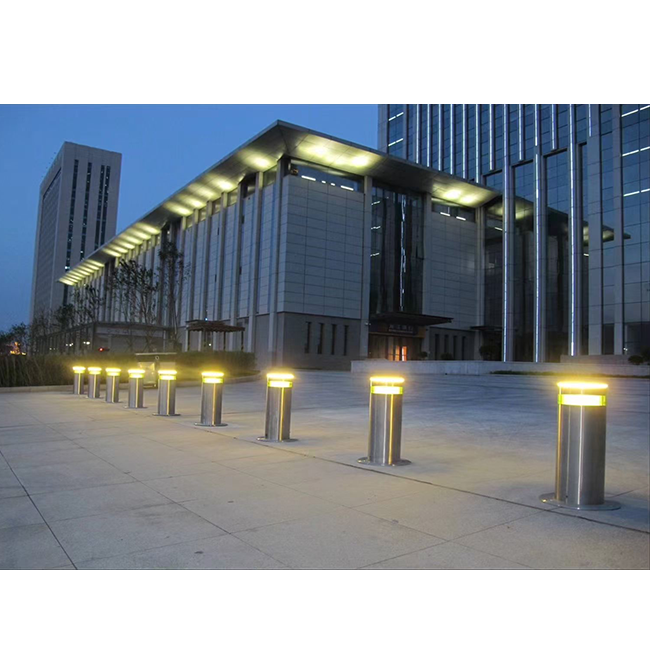

Beautiful built-in ultra-high brightness LED waterproof light strip, light time can be set freely.
Panel textured design, 304 stainless steel thickness of 10mm; options for frosted and car light surfaces.

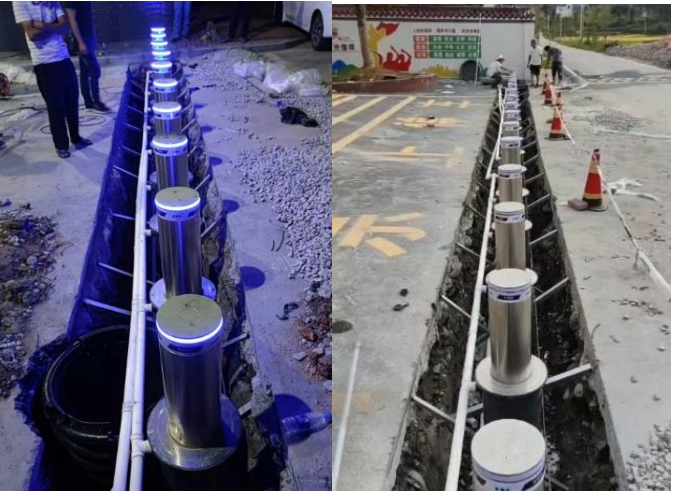

Four outer hexagonal steel rods connect the guide pillar, easy to disassemble; pre-wire can be wound around it.
Four adjustable limit top rubbers maintain vertical gap even after the column rises.
Suspension structure design utilizing gravity; prevents extrusion deformation of guide pillars when vehicles pass.

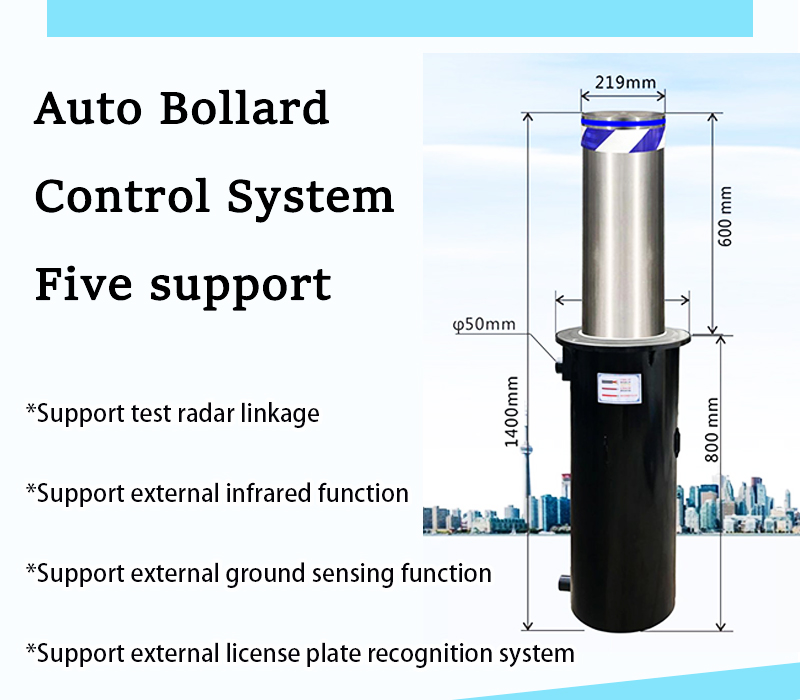

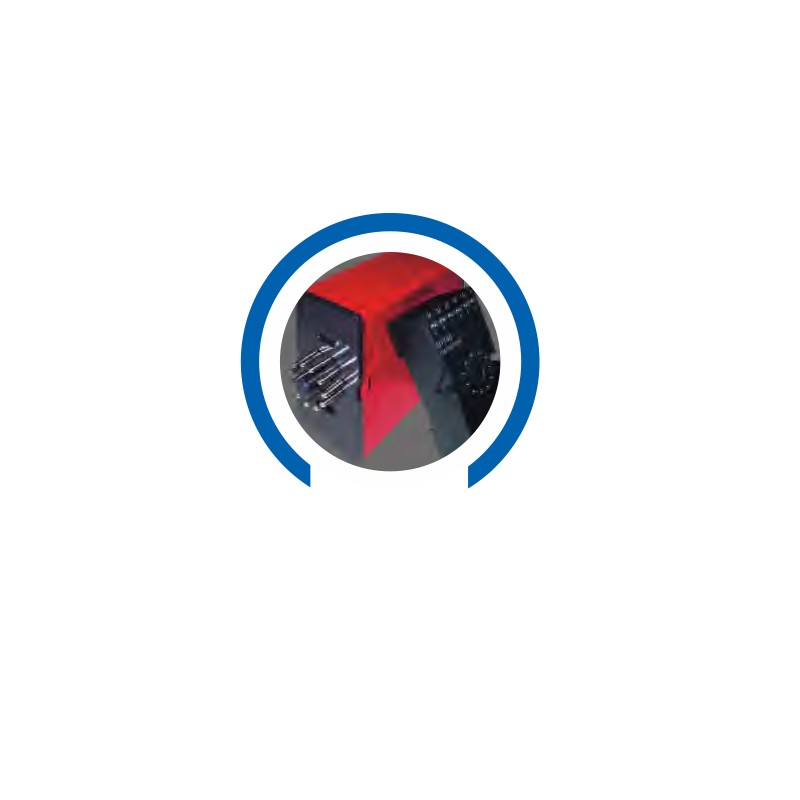

Support External Ground Sensing

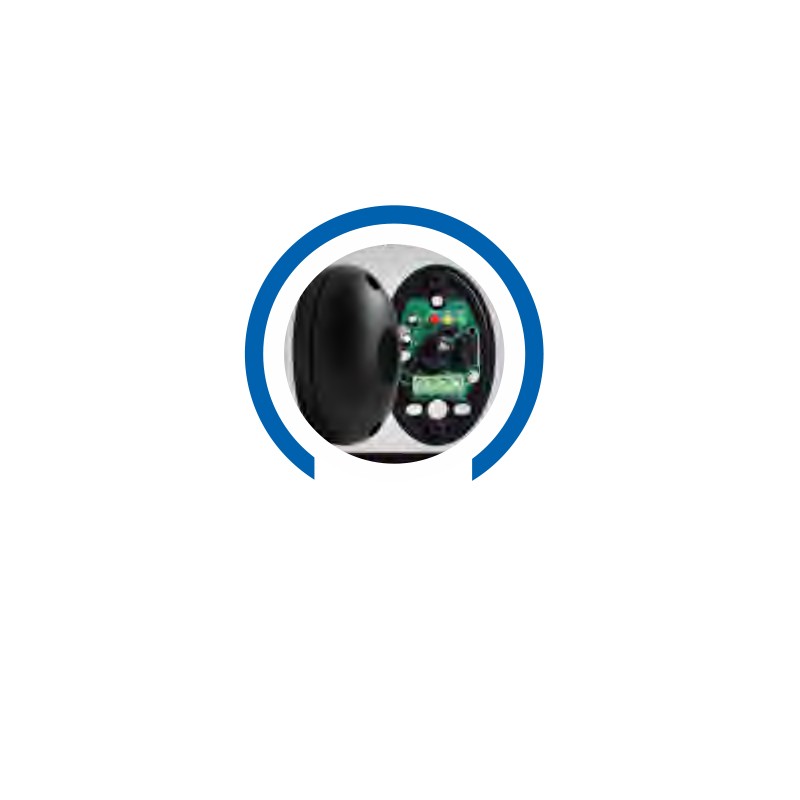

Support External Infrared Function
Cell Phone APP Remote Control
Support Test Radar Linkage

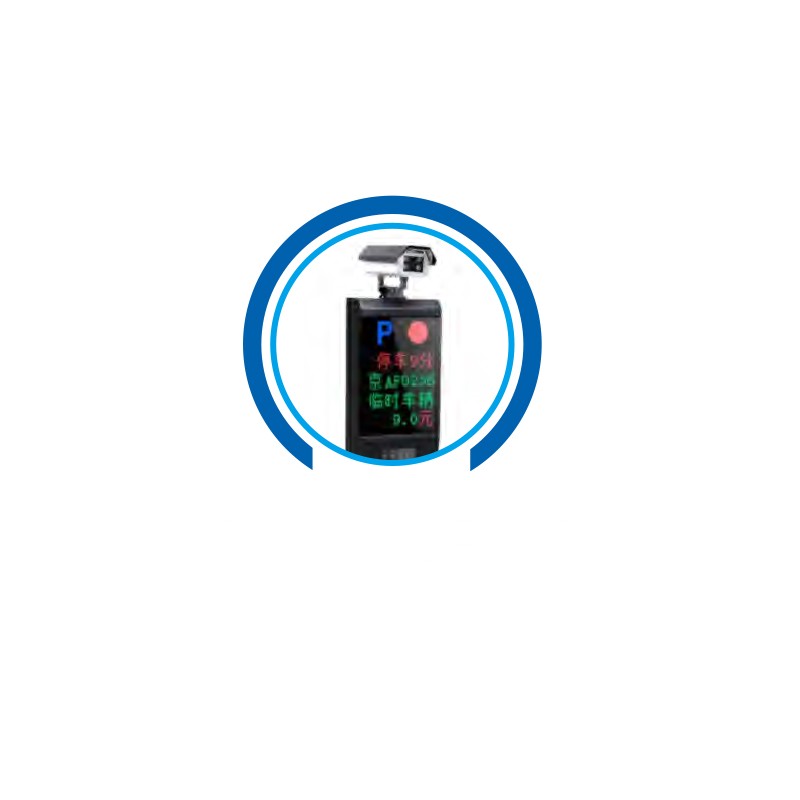

License Plate Recognition System

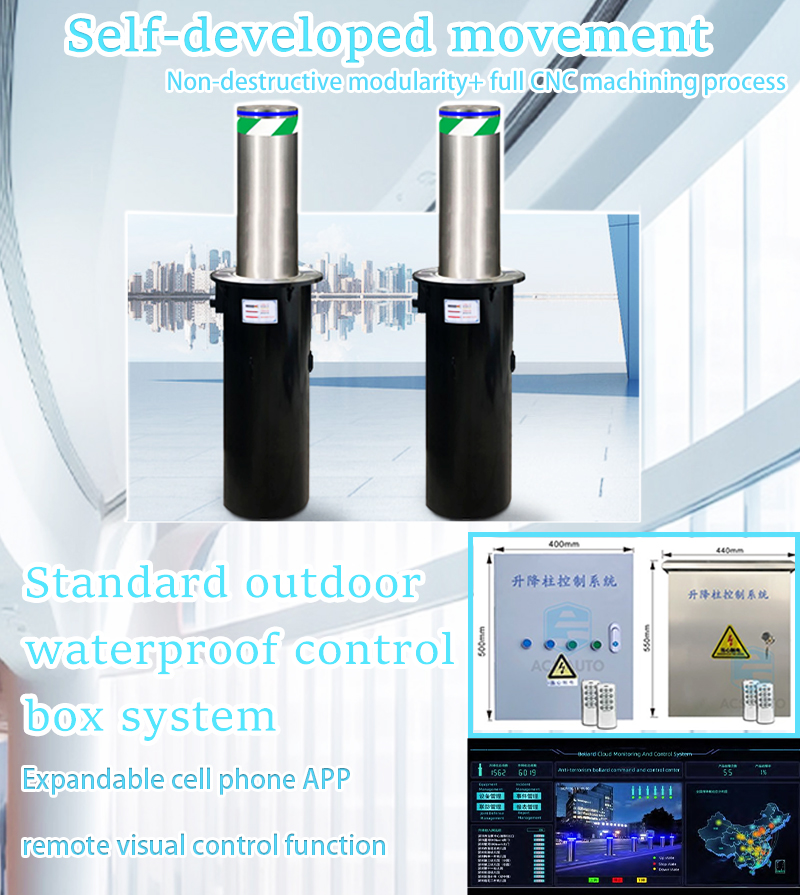

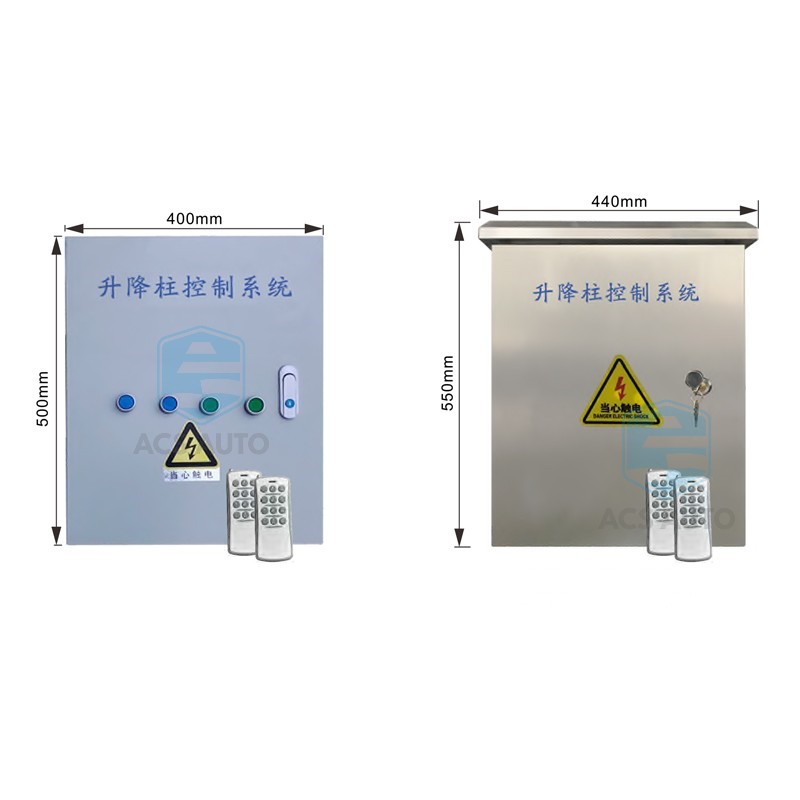

Standard Control Box
Outdoor Waterproof Box
| Capacity | One control box handles up to 8 bollards simultaneously |
| Dimensions | 500mm * 400mm * 200mm (L*W*D) |
| Material | Cold roller steel with protective paint |
| Voltage | 100-240V Input |
| Remote Distance | Up to 30 Meters |
| Connectivity | Access control, ANPR, Loop Detector, Infrared sensors |
