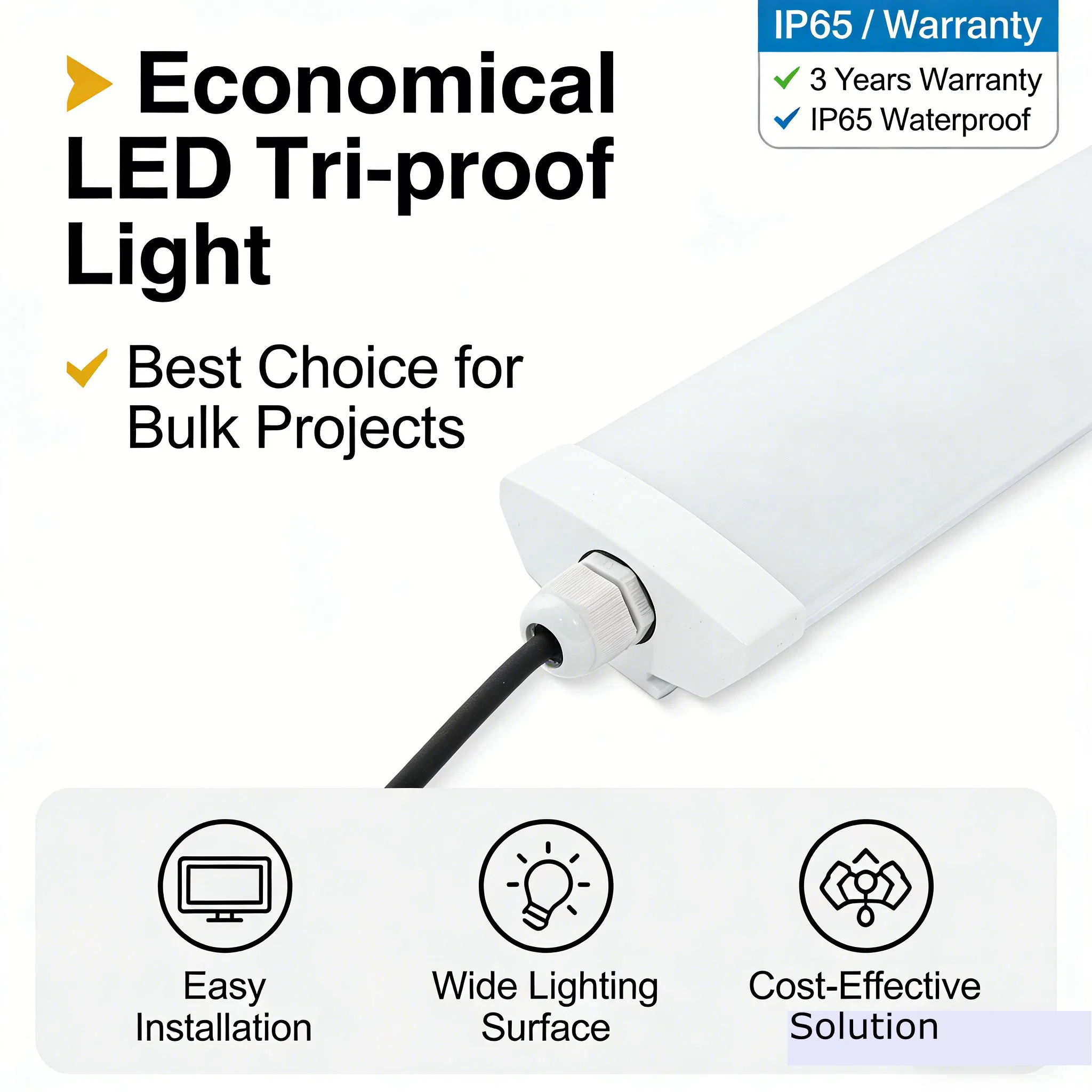

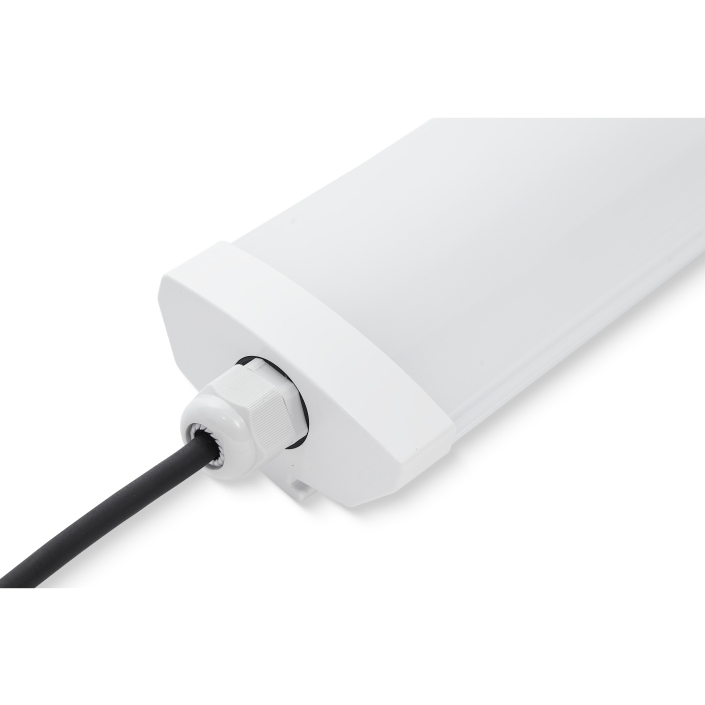

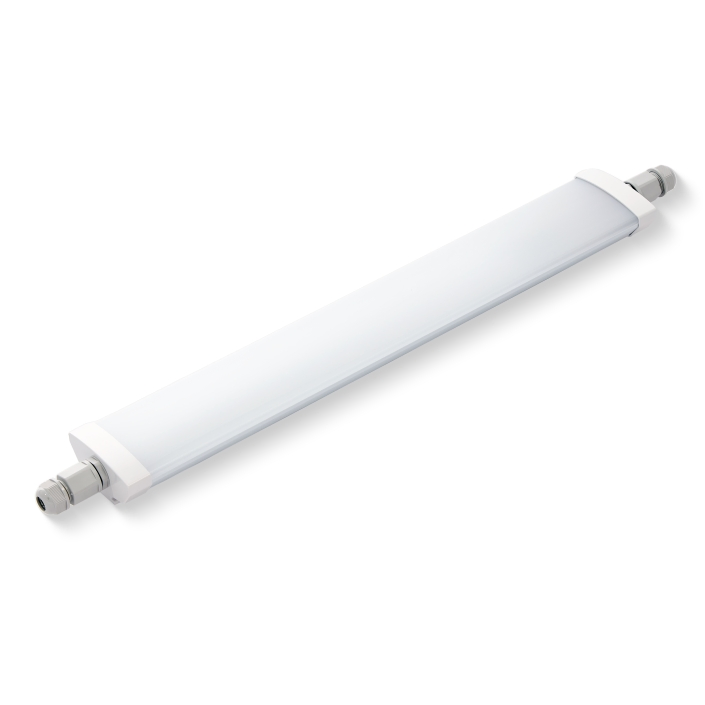

Linkable LED Tri-Proof Light, IP65 Waterproof LED Batten Light, 2FT 20W LED Linear Vapor Tight for Parking Lot, Car Wash, Basement, ETL Listed LED Shop Light Fo

Still deciding? Get samples of $ !
Order Sample

Product Description

🌟 Basic Specification
Model NO.
WS-LI06H18W-11PR
Style
Classical
Shape
Linear
IP Rating
IP65
Voltage
AC100-240V
Beam Angle
180 Degree
CRI
80
Warranty
3 Years
LED Chips
SMD2835
Lumen Efficacy
110/130/150/170lm/W
💡 Product Description

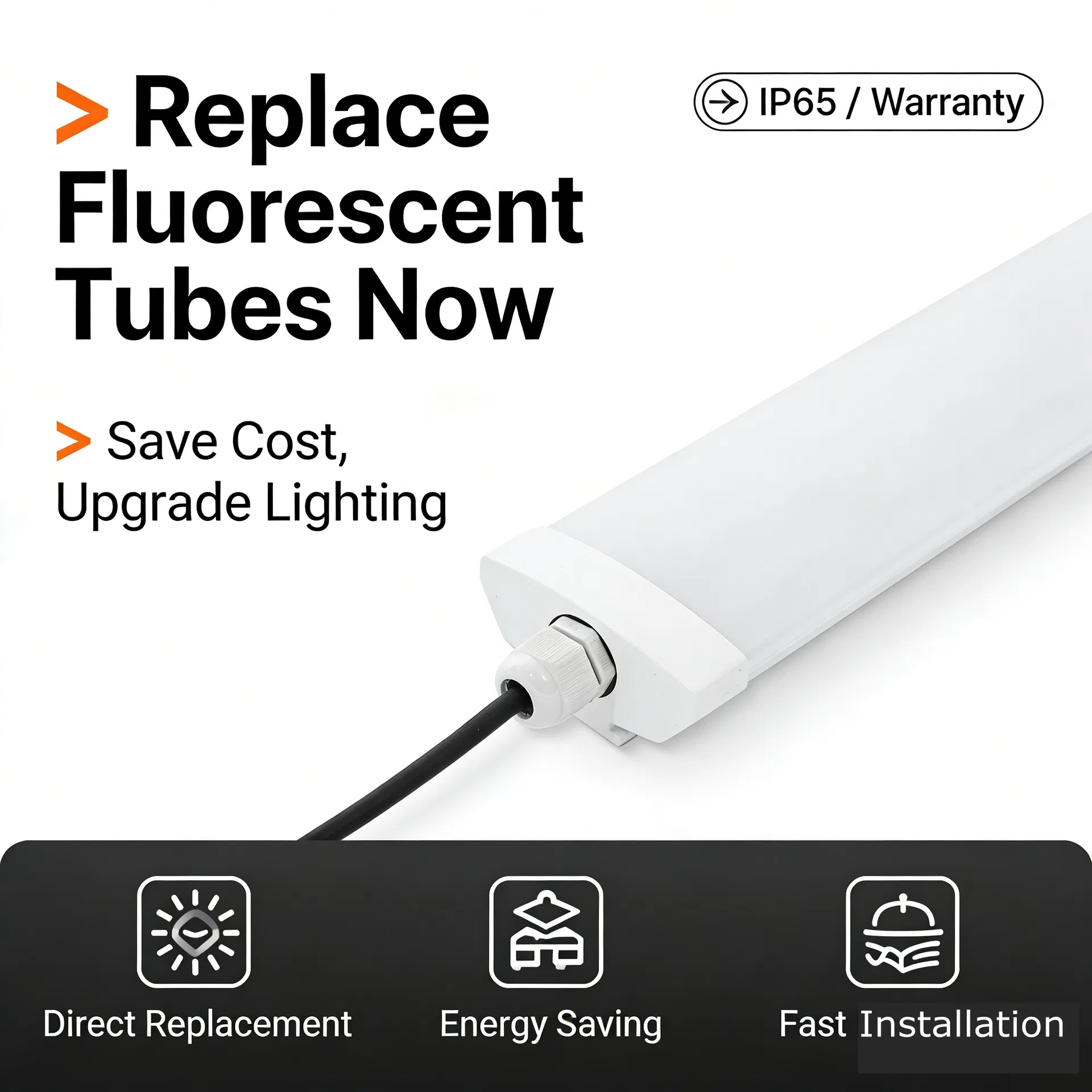

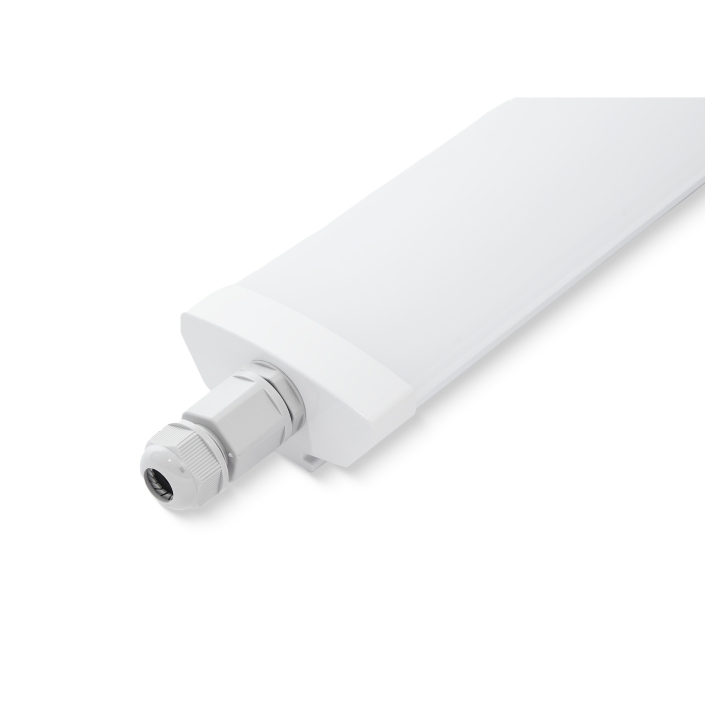

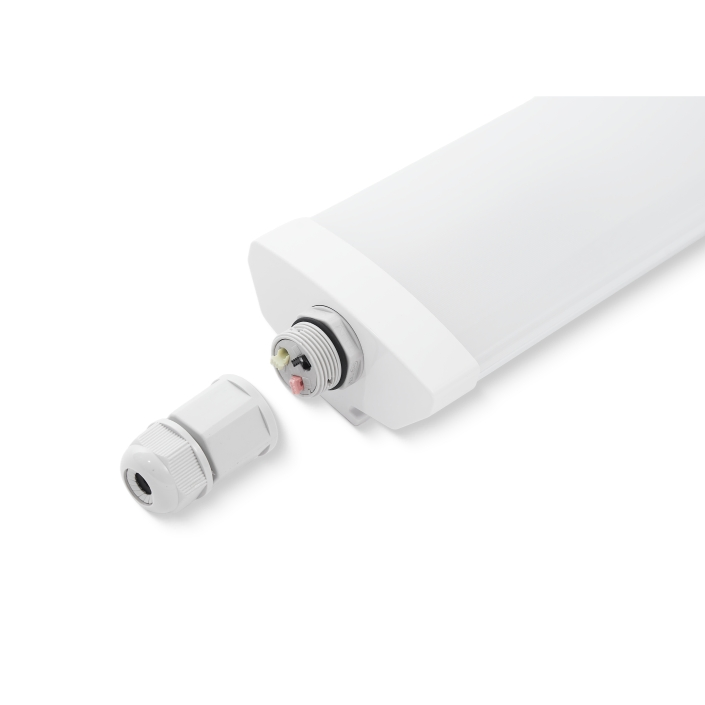

LED Tri-Proof Light

This LED tri-proof light is designed as an economical and practical lighting solution for large-scale replacement projects. It is an ideal substitute for traditional fluorescent tubes and old tri-proof fixtures.

With a wide luminous surface, the light is softer and more uniform, providing better visual comfort. The fixture is designed for quick and easy installation, helping customers save both time and labor costs.

Compared with low-end products in the market, we use high-quality imported materials instead of recycled plastics, ensuring better durability, no yellowing, and longer service life.

🚀 Key Features
  • High cost-performance ratio
  • Wide lighting surface, uniform light output
  • Easy & fast installation
  • Ideal replacement for fluorescent tubes
  • Imported raw materials, better durability
  • Energy saving solution
  • 3 years warranty
📋 Technical Specification
Product model WS-LI06H18W-11PR WS-U12H40W-11PR WS-U15H55W-11PR
Rated power16/18/20W30/36/40W45/50/55W
Input voltageAC/DC 100-265V
Luminous efficacy110/130/150/170LM/W
CCT3000/4000/5000/6500K
CRIRa≥80
PF≥0.9
Beam angle110°
IP / IK RatingIP65 / IK06
📦 Packing & Delivery
Packing Details 1 Packing Details 2

We use high-quality 5-layer corrugated cartons to ensure maximum protection during transportation. Each product is securely fixed inside the package to prevent damage.

Before packing, all products undergo 100% lighting test to ensure quality and performance. Additional corner protection is applied for express delivery to further enhance safety.

🛠️ Installation Instructions

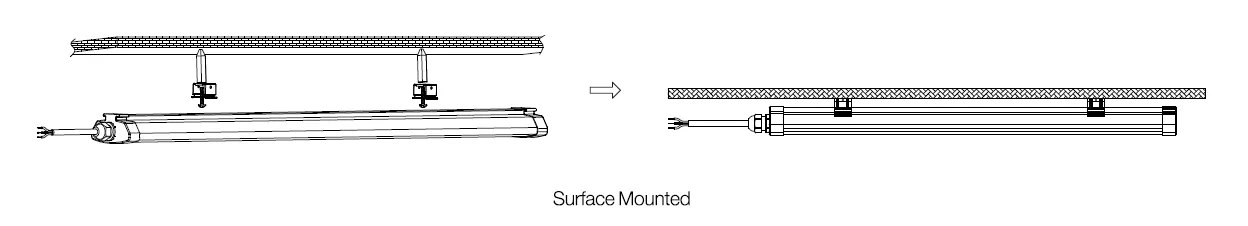

Surface Mounted
Surface Mounted:
- Drill φ4mm holes on the installation surface.
- Knock in the expansion glue into the drilled hole.
- Lock the clip into the expansion glue with screws.
- Align the back of the lamp body to the clip and press it into the slot with force.

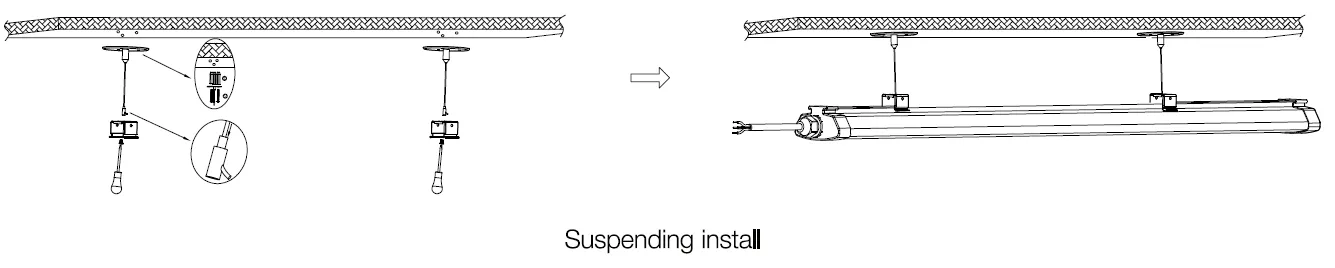

Suspending Installation
Suspending Install:
- Drill φ6mm holes and tap in the expansion adhesive.
- Secure the suspension rope fastener to the wall.
- Lock the dip onto the nut of the suspension rope.
- Press the metal tube to adjust the length of the suspension rope.

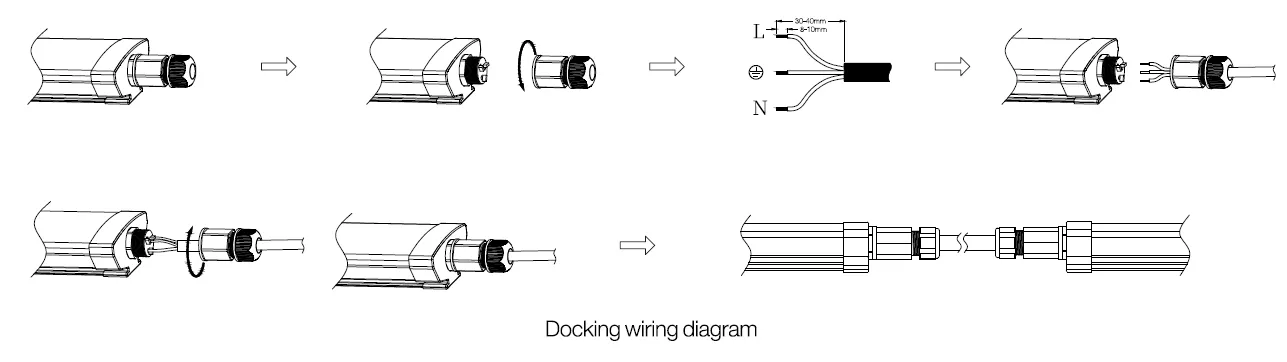

Wiring Diagram
Number of linkable units:
0.6m 18W: < 15pcs | 1.2m 40W: < 7pcs | 1.5m 55W: < 5pcs
🏭 Manufacturing Excellence

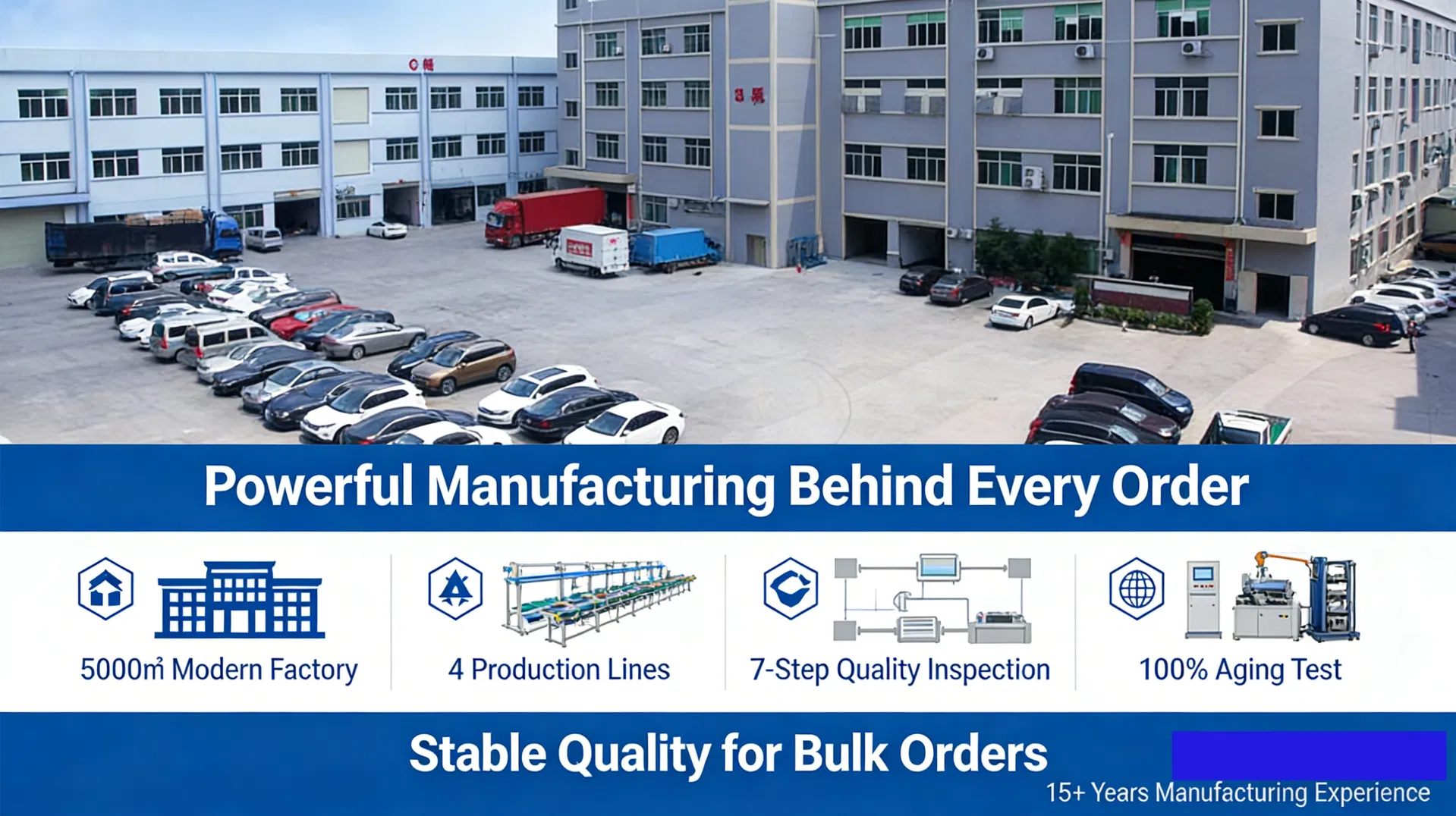

Factory Overview

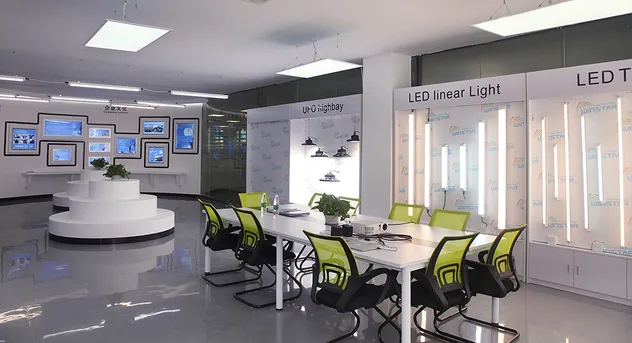

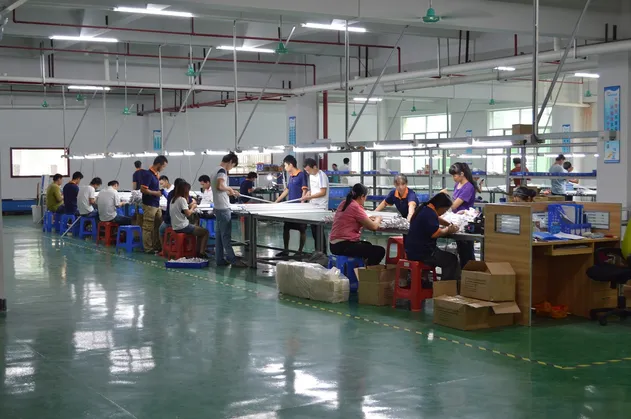

Production 1 Production 2 Production 3
📜 Certifications
Certificates
Frequently Asked Questions
What is the warranty period for this tri-proof light?
We offer a 3-year warranty for this model, ensuring long-term reliability and peace of mind for your projects.
Can these fixtures directly replace traditional fluorescent tubes?
Yes, they are specifically designed as a direct, high-efficiency replacement solution for traditional fluorescent tubes and older tri-proof fixtures.
Is the product completely waterproof for outdoor use?
Absolutely. The fixture is IP65 rated, making it dust-tight and protected against water jets, suitable for parking lots, car washes, and basements.
What materials are used in the construction of the light?
We prioritize durability by using high-quality imported raw materials instead of recycled plastics, which prevents yellowing and extends service life.
Do you perform quality testing before shipment?
Yes, we conduct a 100% lighting and performance test on every single unit before it is packed and shipped to ensure it meets our quality standards.
How long is the typical delivery time?
The standard delivery time is usually between 15 and 25 days, depending on the order quantity and specific customization requirements.
