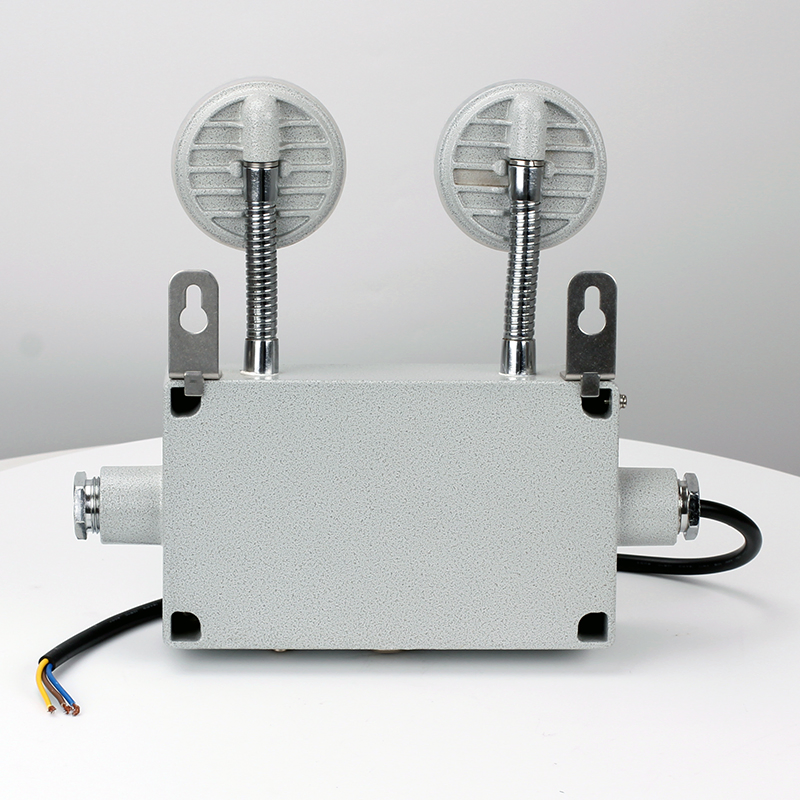

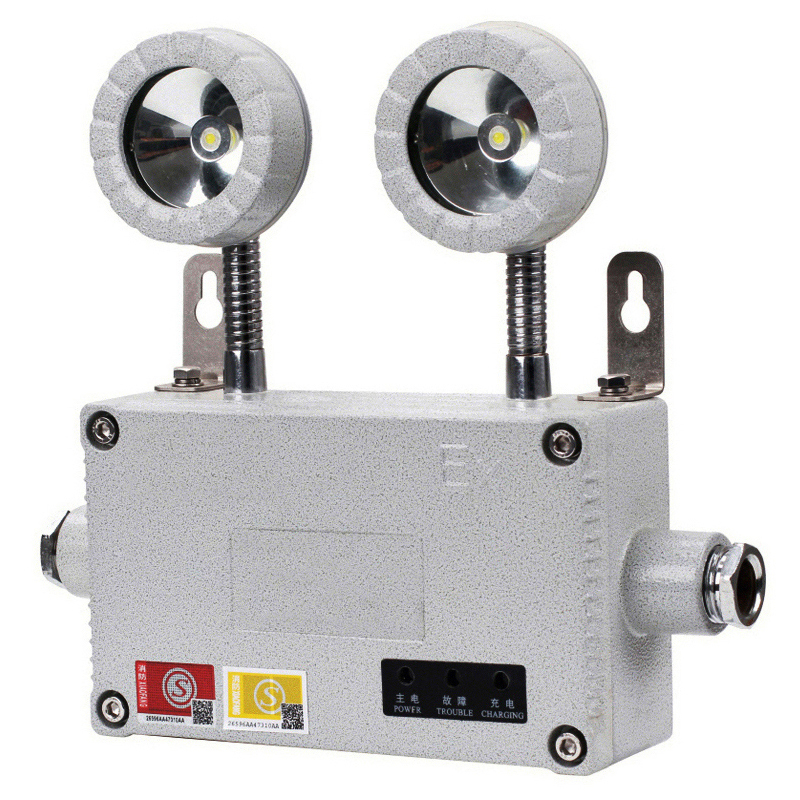

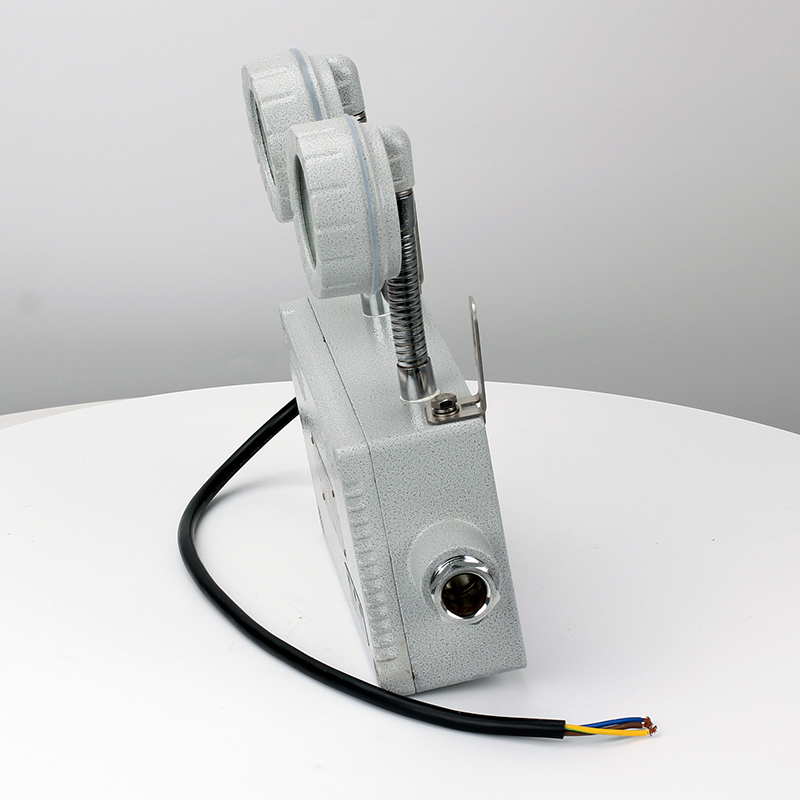

Explosion Proof IP54 Adjustable Double Heads Wall Mounted Rechargeable LED Exit Light Wenzhou Explosion Proof Emergency Lamp
Explosion Proof IP54 Adjustable Double Heads Wall Mounted Rechargeable LED Exit Light Wenzhou Explosion Proof Emergency Lamp
Explosion Proof IP54 Adjustable Double Heads Wall Mounted Rechargeable LED Exit Light Wenzhou Explosion Proof Emergency Lamp
Explosion Proof IP54 Adjustable Double Heads Wall Mounted Rechargeable LED Exit Light Wenzhou Explosion Proof Emergency Lamp
Explosion Proof IP54 Adjustable Double Heads Wall Mounted Rechargeable LED Exit Light Wenzhou Explosion Proof Emergency Lamp
1 / 5
Explosion Proof IP54 Adjustable Double Heads Wall Mounted Rechargeable LED Exit Light Wenzhou Explosion Proof Emergency Lamp
Explosion Proof IP54 Adjustable Double Heads Wall Mounted Rechargeable LED Exit Light Wenzhou Explosion Proof Emergency Lamp
Explosion Proof IP54 Adjustable Double Heads Wall Mounted Rechargeable LED Exit Light Wenzhou Explosion Proof Emergency Lamp
Explosion Proof IP54 Adjustable Double Heads Wall Mounted Rechargeable LED Exit Light Wenzhou Explosion Proof Emergency Lamp
Explosion Proof IP54 Adjustable Double Heads Wall Mounted Rechargeable LED Exit Light Wenzhou Explosion Proof Emergency Lamp

Explosion Proof IP54 Adjustable Double Heads Wall Mounted Rechargeable LED Exit Light Wenzhou Explosion Proof Emergency Lamp

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
BCJ51 IIB/C
Battery Type
Lead-acid
Warranty
3-Year
Emitting Color
White
Specifications
2*3W
Input Voltage
AC/DC 24V, 36V, 220V, 380V
Efficiency
120 Lm/W
CRI (Ra)
80
Protection
Waterproof, Dustproof, Corrosion-Resistant
Capacity
100,000 Pieces Per Month
Product Parameters
Product Parameters Banner
Model Explosion Proof Sign Light Source Power (W) Charging (h) Emergency (min) Weight (kg)
BCJ51- Ex db eb ib mb IIC T6 Gb
Ex tb IIIC T80ºC Db
Ex ib IIIC T80ºC Db		 LED 2*3 24 120 2.5
BCJ52-
BYY51-43.6
BYY52-
Rated Voltage Inlet Thread Cable Outer Diameter Protection Degree Anti-corrosion
220V/50Hz G3/4 Φ10~Φ14mm IP66 WF2
Product Description
Description Banner
  • Non-polar connection for easy installation.
  • Handheld encoder coding system.
  • Short circuit independent recoverable protection.
  • Die-cast special aluminum alloy body with high voltage static spray surface.
  • Exposed stainless steel fasteners with high corrosion resistance.
  • Ultra-high brightness LED source: low power, long life, maintenance-free.
  • Automatic charging under normal power; automatic illumination during power failure.
Scope:
Zone 1, 2, 21, 22; IIA, IIB, IIC environments
Security:
IP66, WF2, Ex db eb mb IIC T6 Gb
Emergency:
30, 60, 90, 120, 180 Minutes options

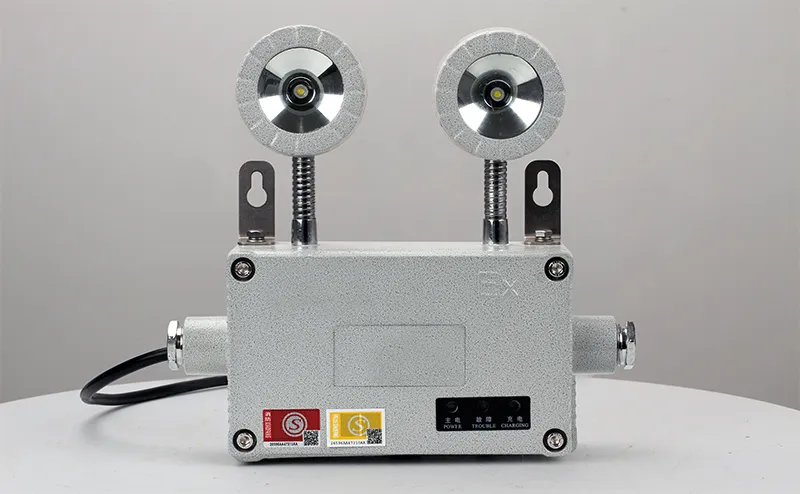

Explosion Proof Exit Light 1

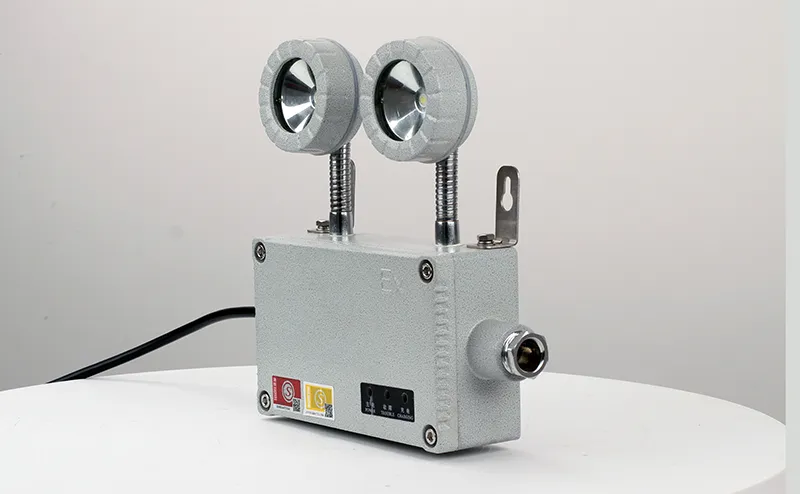

Explosion Proof Exit Light 2

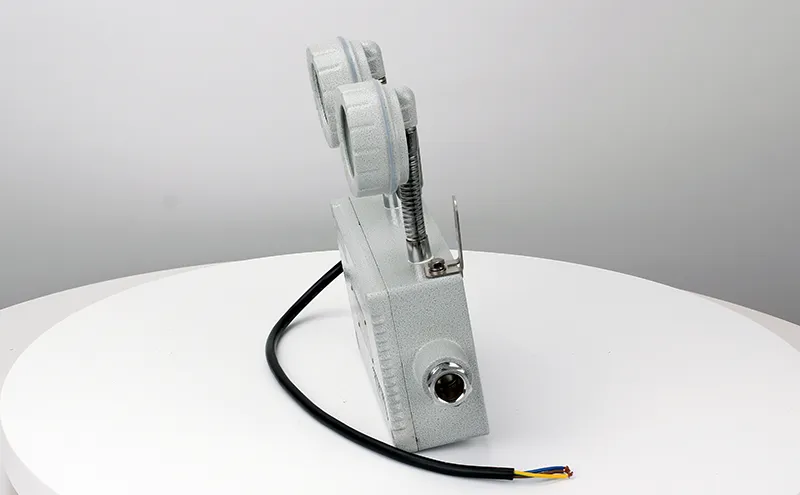

Explosion Proof Exit Light 3

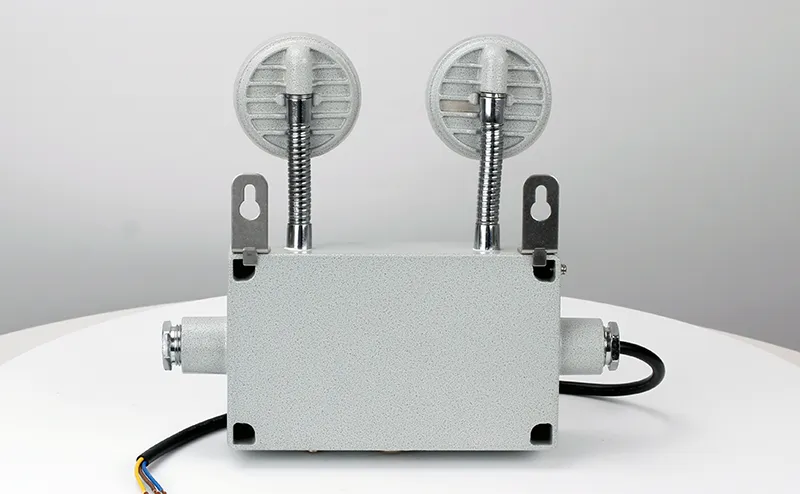

Emergency Light Application 1

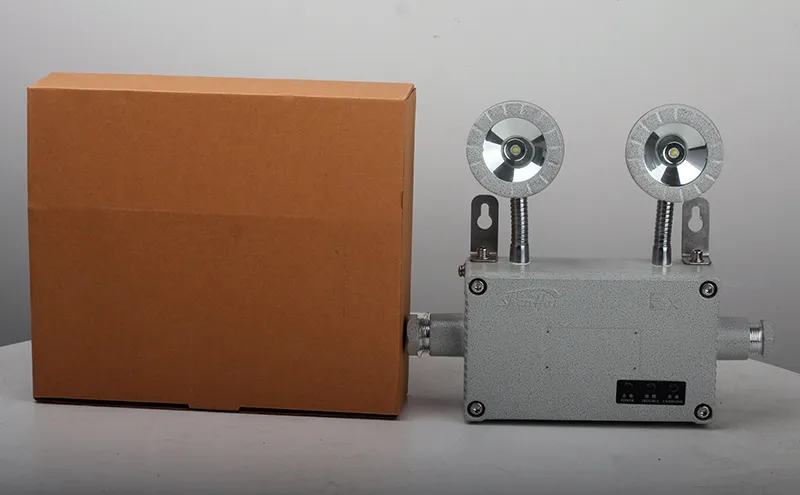

Emergency Light Application 2
Emergency Light Application 3

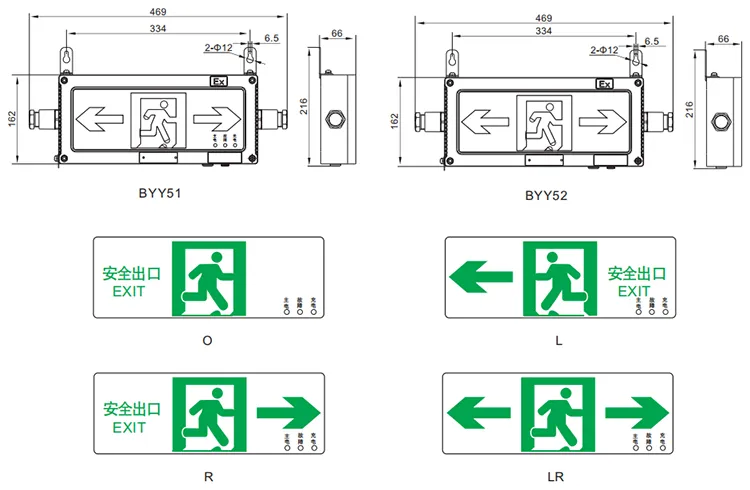

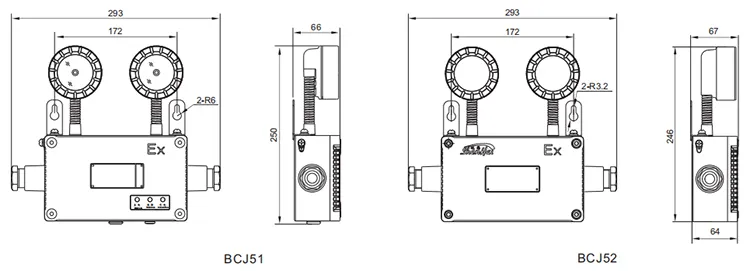

Feature Details 1 Feature Details 2

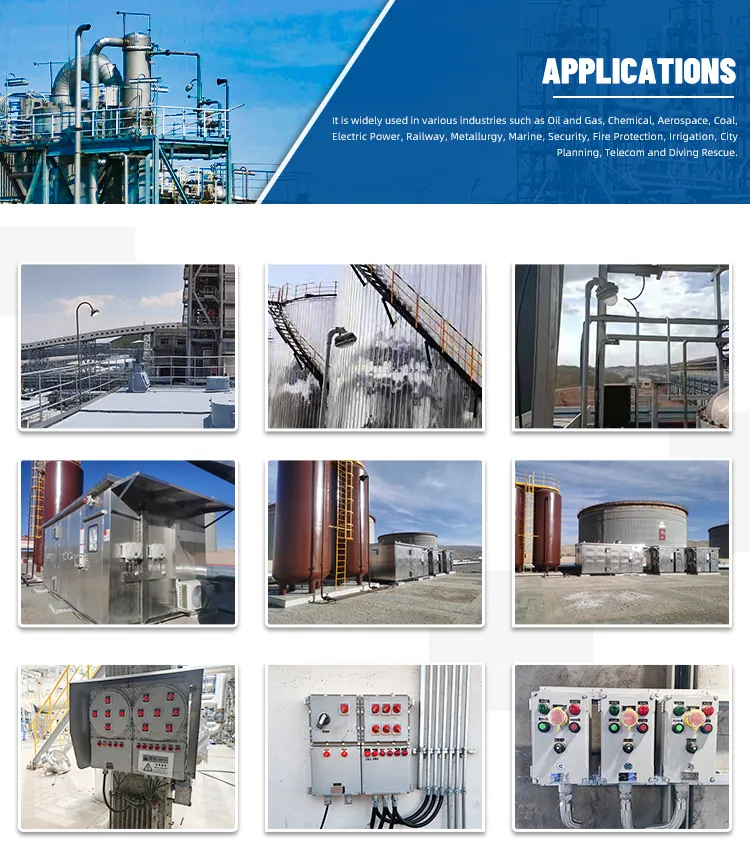

Applicable Environment

Gas Zone 1 and Zone 2 explosive gas environments.

Dust Zone 21 and 22 combustible dust environments.

Industry Petroleum exploitation, refining, chemical industry, and gas stations.

Groups Suitable for T1~T6 temperature groups.

Installation Guide
Quality Assurance & Factory
Factory Overview

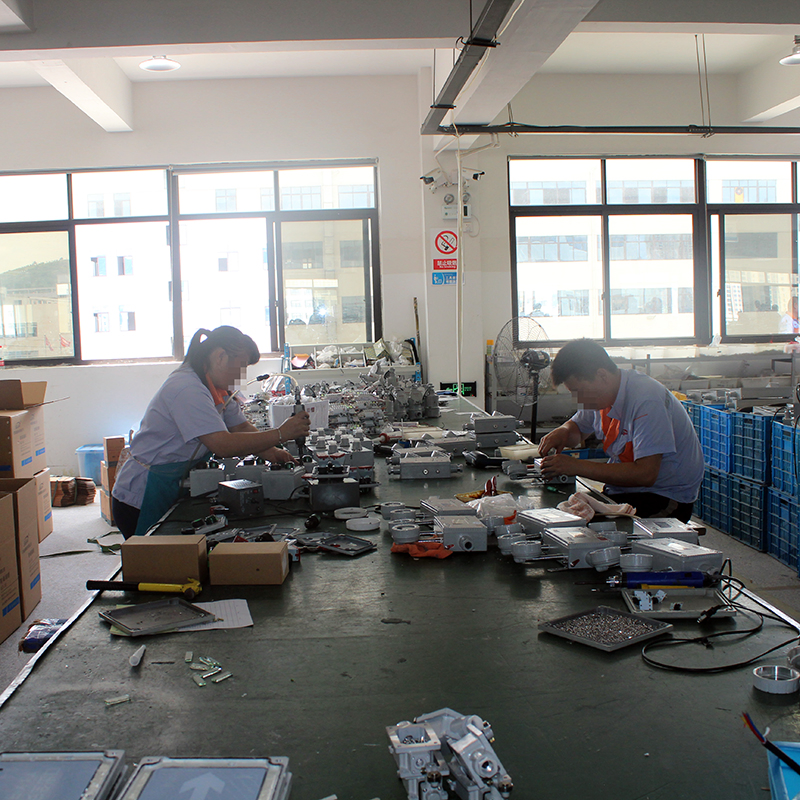

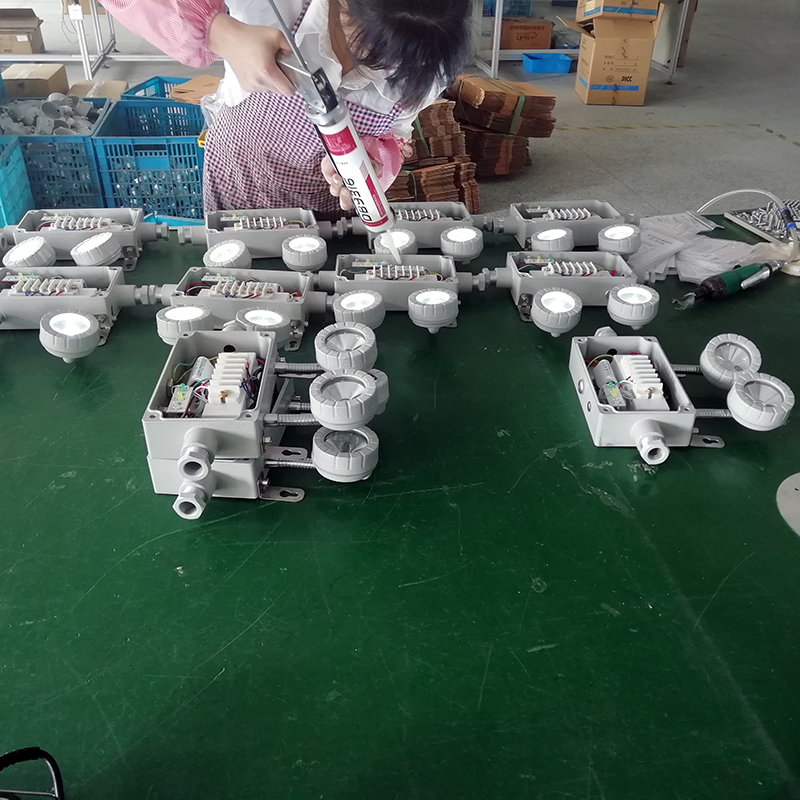

Production Line
Certificates
Quality Control 1
Quality Control 2
Frequently Asked Questions
Are you a manufacturer or a trading company?
We are a professional manufacturer specializing in explosion-proof lighting, distribution boxes, cable glands, fans, and junction boxes, providing comprehensive OEM services.
What certifications do your products hold?
Our products have successfully passed ATEX and IECEx certifications, and we hold numerous national patents for our specialized designs.
In which industries are your products typically used?
Our explosion-proof solutions are widely utilized in petrochemical, aerospace, electrical power, metallurgy, shipbuilding, marine, and firefighting industries.
Can I place a sample order to test the quality?
Yes, we welcome sample orders for quality testing and verification. Mixed samples are also acceptable to suit your specific project needs.
Do you support customized product designs?
Yes, we accept customization. Please provide your design requirements, and we will confirm the production feasibility based on our standard technical samples.
What is the typical emergency lighting duration?
Our emergency lights offer multiple duration options including 30, 60, 90, 120, and 180 minutes to meet different safety regulations and requirements.
