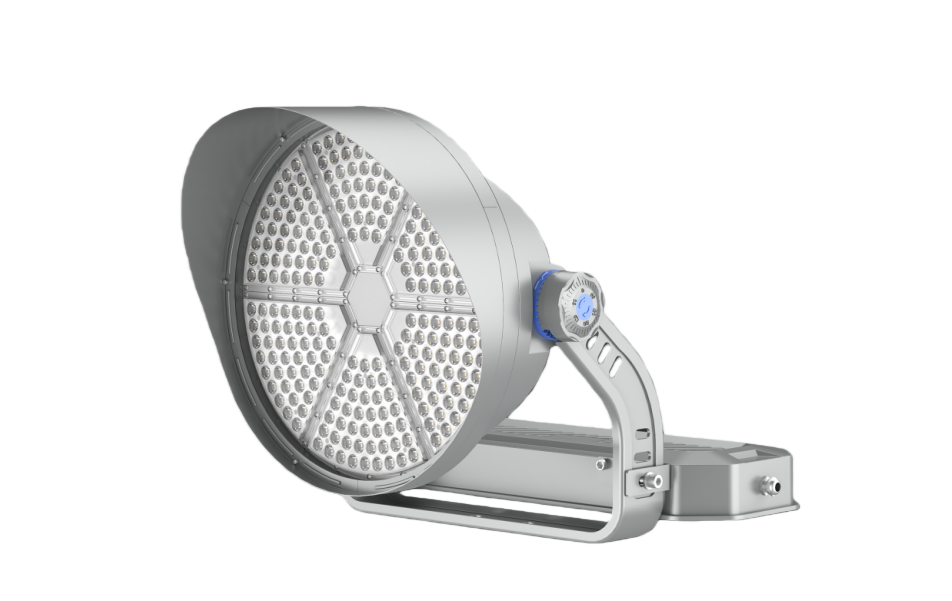

Technical Specifications
| Category | LED High Mast Light |
| Model | YXY-QCDJ-1200W |
| Wattage | 1200W |
| Light Efficacy | Up to 150lm/W |
| Beam Angle | 10°/15°/25°/45°/60°/90° |
| Input Voltage | AC100-277V |
| CCT | 2700-6500K |
| CRI | 70 / 80 |
| Working Temperature | -35~+50℃ |
| Lifespan | 60000H |
| IP Grade | IP 66 |

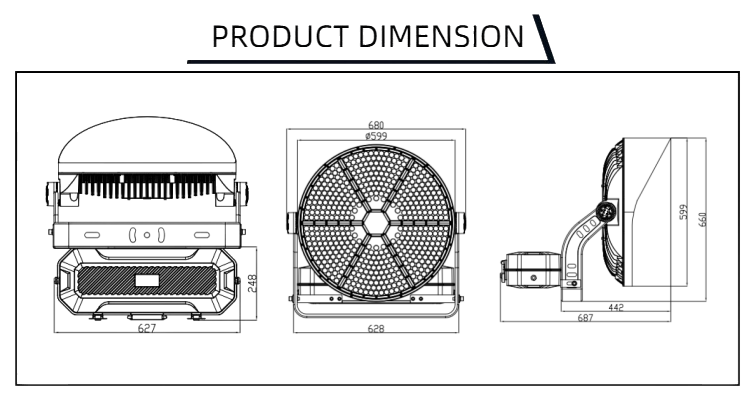

| Product Dimensions | 680*687*660mm |
| Package Dimensions | 735*740*725mm |
| Net Weight | 30.5KG |

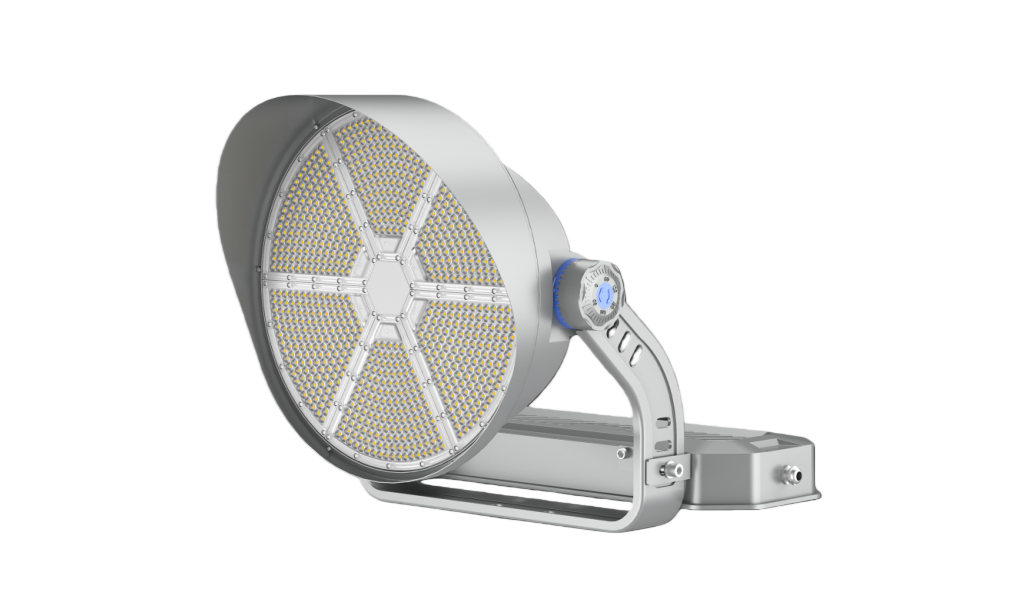

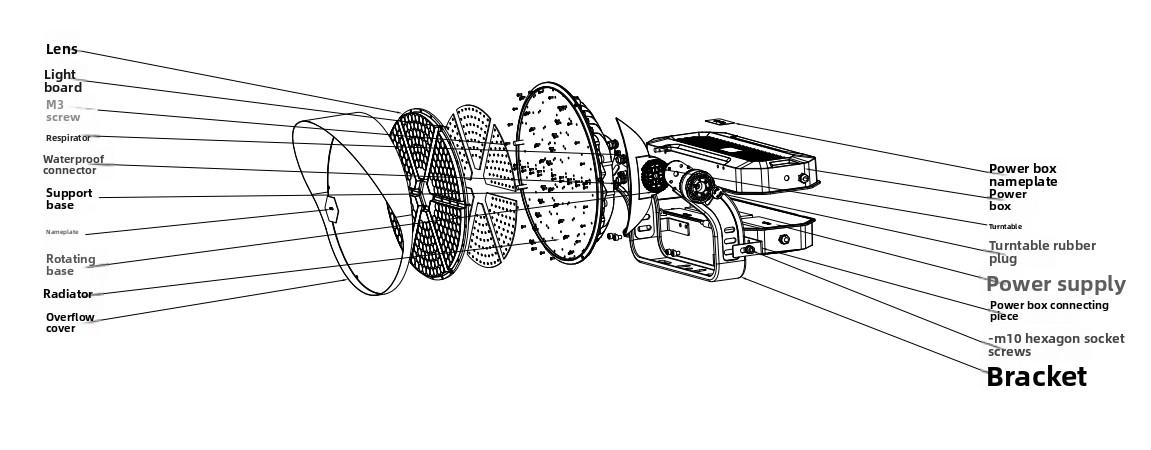

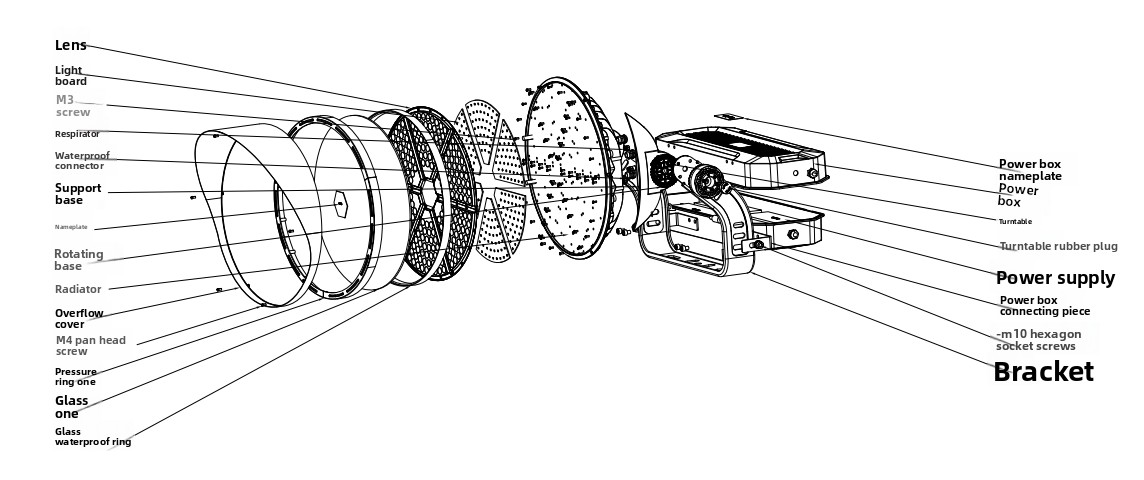

Product Details
Frequently Asked Questions
Q1: What is the main application of this LED High Mast Light?
A: It is specifically designed for large-scale outdoor lighting requirements, including sports stadiums, airports, seaports, and industrial yards.
Q2: Can this light withstand extreme weather conditions?
A: Yes, with an IP66 protection grade and a robust working temperature range from -35℃ to +50℃, it ensures stable operation in harsh environments.
Q3: What are the beam angle options for the 1200W model?
A: We offer a variety of beam angles including 10°, 15°, 25°, 45°, 60°, and 90° to precisely meet different architectural or sport lighting standards.
Q4: How energy efficient is this high mast light?
A: The light delivers a high luminous efficacy of up to 150lm/W, significantly reducing energy consumption while maintaining maximum brightness.
Q5: What is the expected lifespan and warranty support?
A: The product is designed with a long lifespan of approximately 60,000 hours, ensuring low maintenance costs for long-term projects.
Q6: Is it compatible with international voltage standards?
A: Yes, it supports an input voltage range of AC100-277V, making it suitable for electrical systems in most countries worldwide.
