Basic Specifications
Material
Die Casting Aluminum + PC Lens + Tempered Glass
Power Range
30W - 300W Options
Luminous Effic.
180lm/W High Efficiency
Certification
CE, EMC, LVD, RoHS
Input Voltage
100-277VAC 50/60Hz (347V/480V available)
LED Brand
SMD3030 / SMD5050
SPD Protection
6kv / 10kv / 20kv
Pole Diameter
40/50/60mm compatible

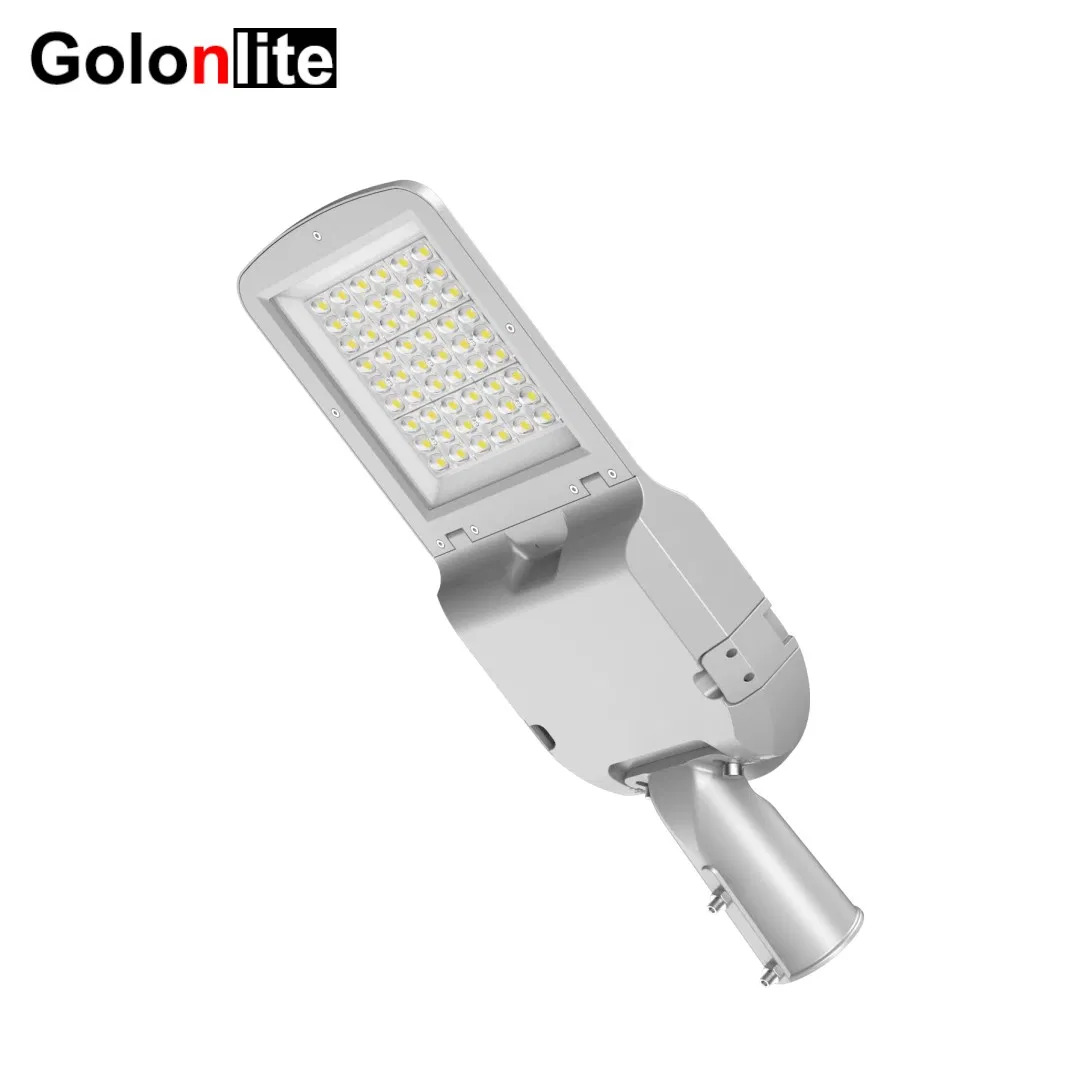

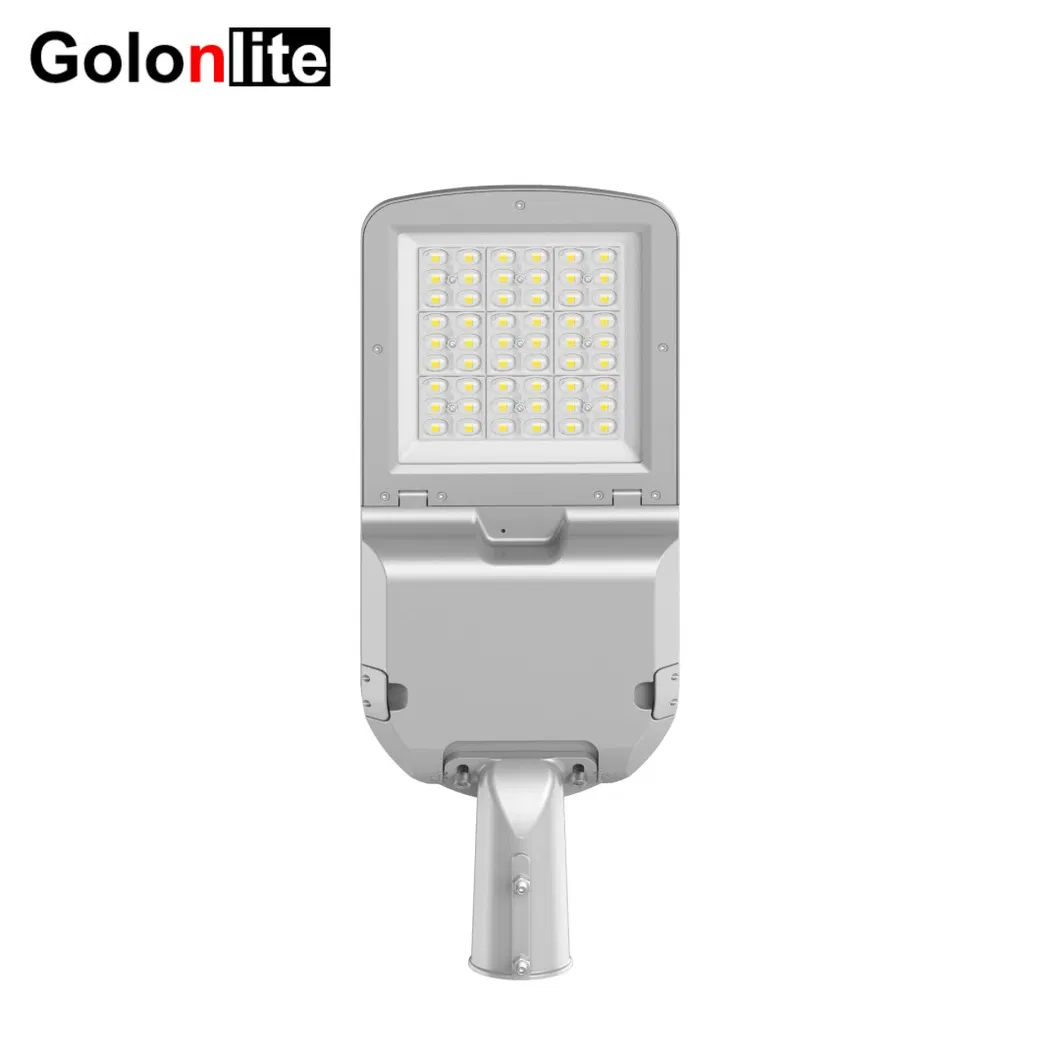

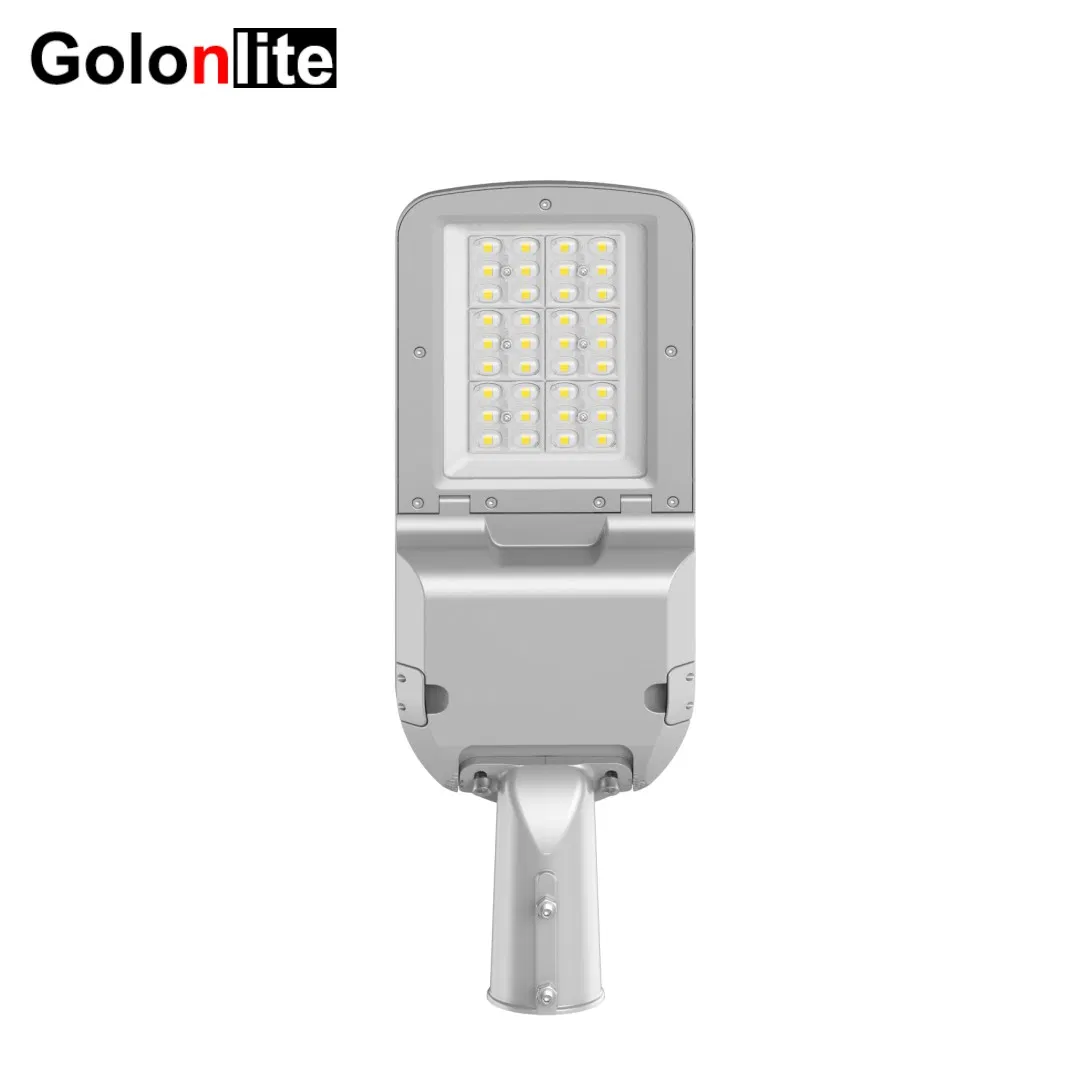

High Efficiency Public Area Lighting Solution
Reliable LED Street Light for Highway, Garden, Parking Lot, and Urban Road Applications
Key Features
- Super Bright Performance: Reach up to 180Lm/W high lumens efficiency for maximum energy saving.
- Durable Construction: Heavy-duty die-casting aluminum housing with tempered glass and optical PC lens.
- Advanced Optics: Multiple beam angle options including T2M, T3M, T4M, and P50.

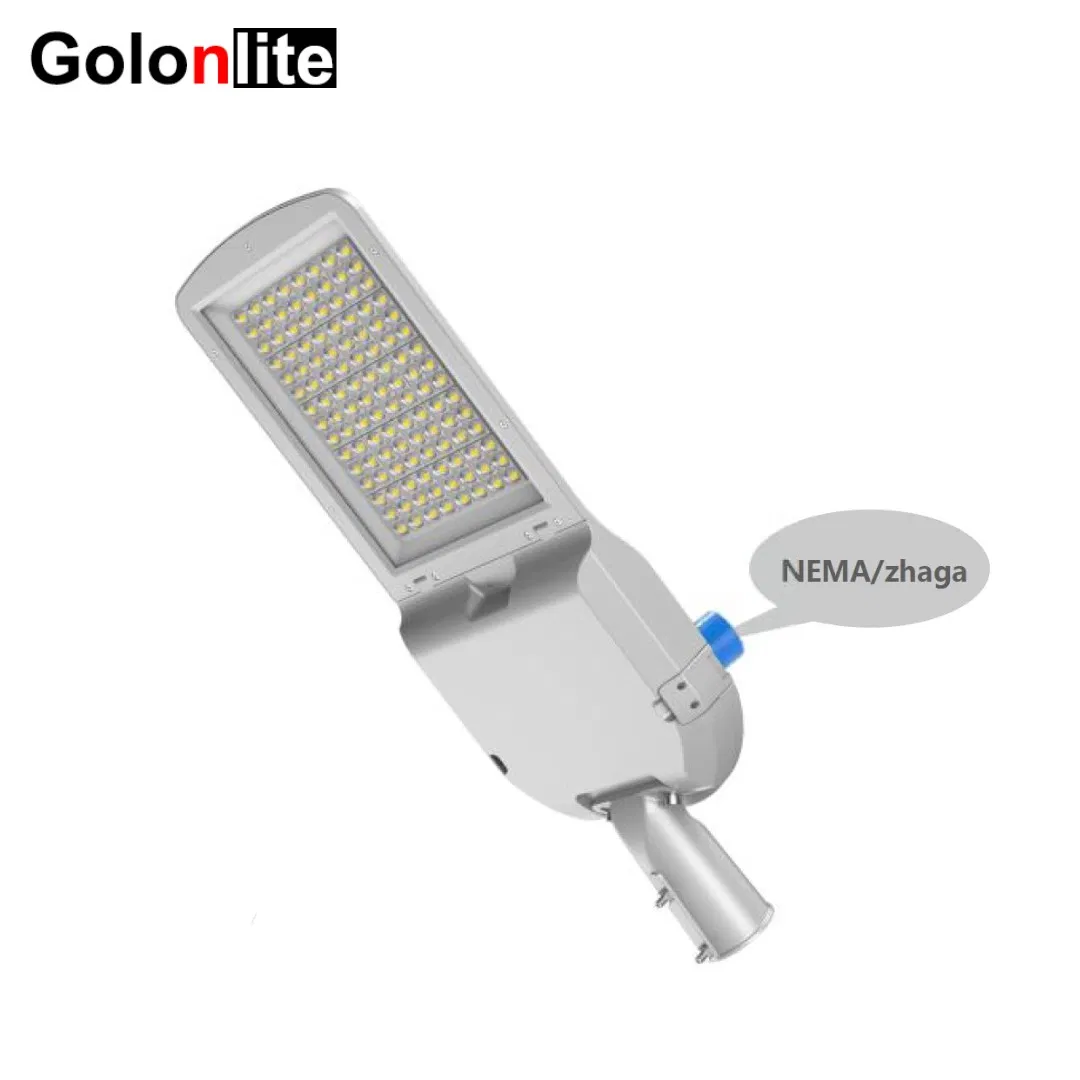

- Smart Control Ready: Compatible with 3/5/7 Pins NEMA base, LoRaWan, Zigbee, and NB-Iot systems.

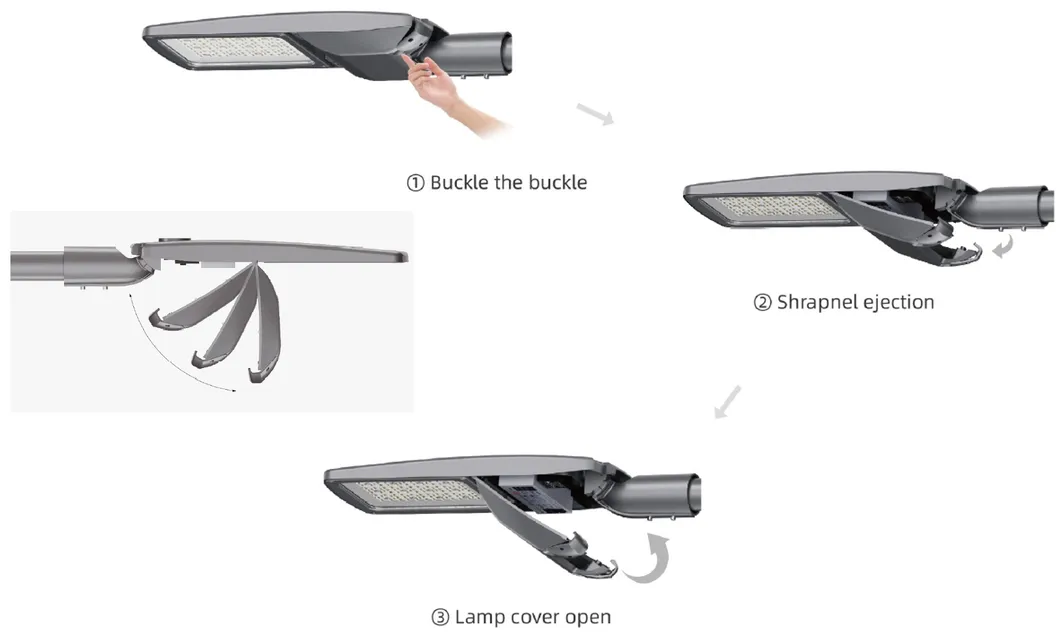

- Easy Maintenance: Tool-free opening design ensures quick and safe maintenance access.
- Versatile Dimming: Supports 0-10V, PWM, and DALI dimming protocols.

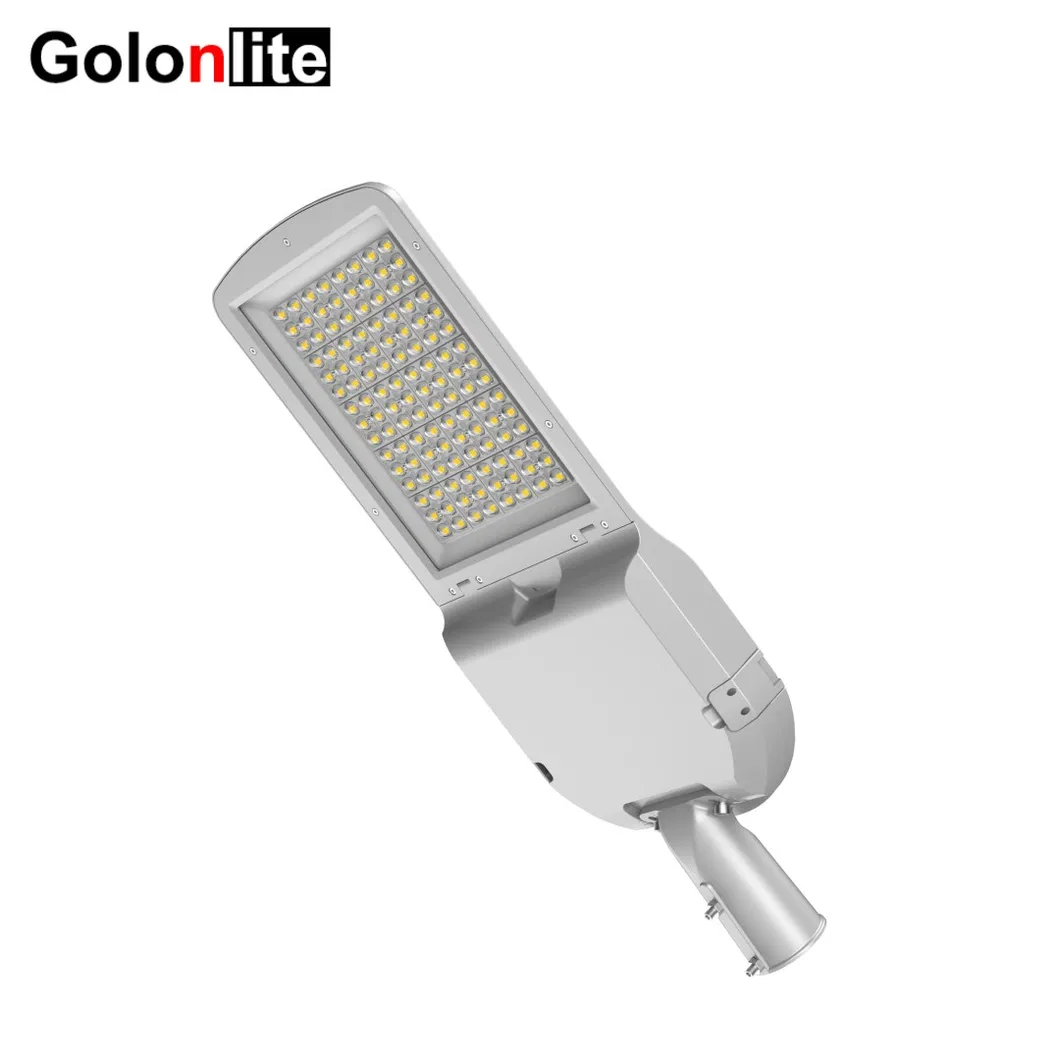

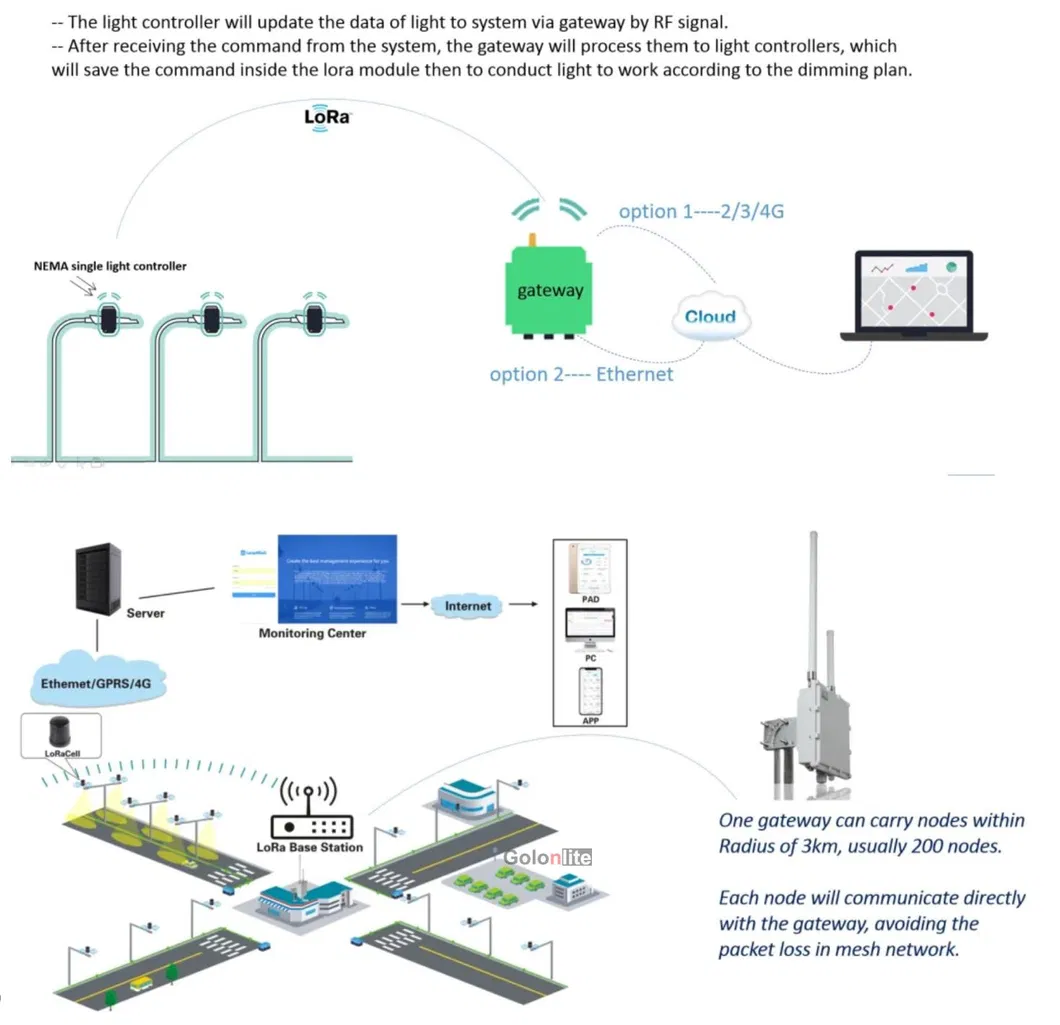

Smart Control Capabilities
SWhat can the intelligent system do?
- Remote switch on/off and group controlling.
- Dynamic dimming and color temperature adjustment.
- Electricity consumption reports and power saving analysis.
- Real-time interval status reports and automatic fault alarms.
- Camera monitoring integration support.
Technical Specifications Table
| Parameter |
Details |
| LED Type | SMD3030 / SMD5050 |
| CCT (K) | 1700K - 6500K Options |
| CRI | > Ra80/70 |
| Power Supply | Meanwell / Inventronics / Sosen / Moso Driver |
| Lifespan | > 50,000 Hours |
| Beam Angle | T2M / T3M / T4M |
| Replacement | Metal Halide / HPS / HID / Halogen lamps |

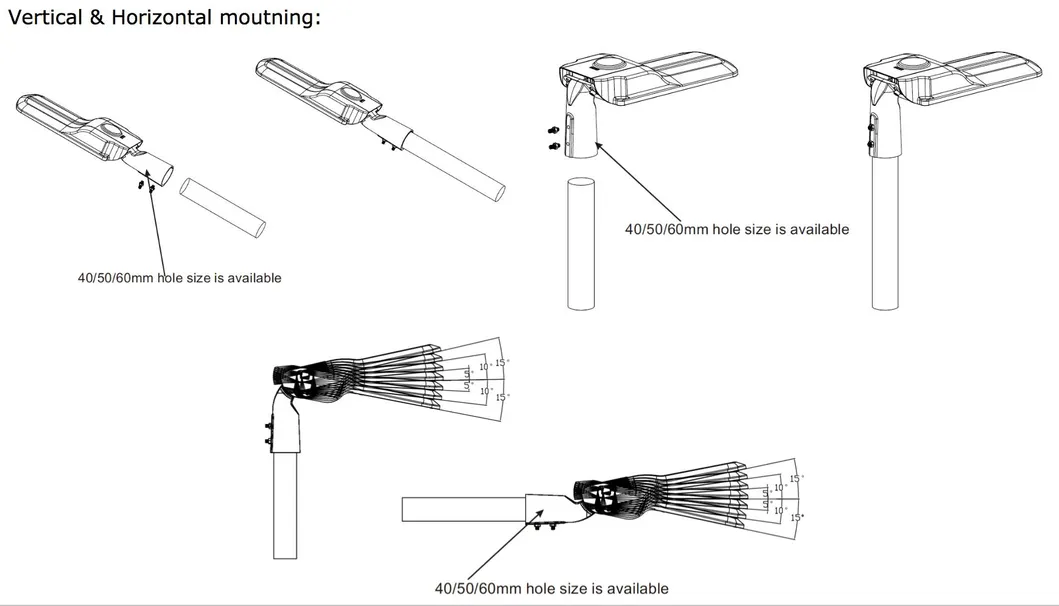

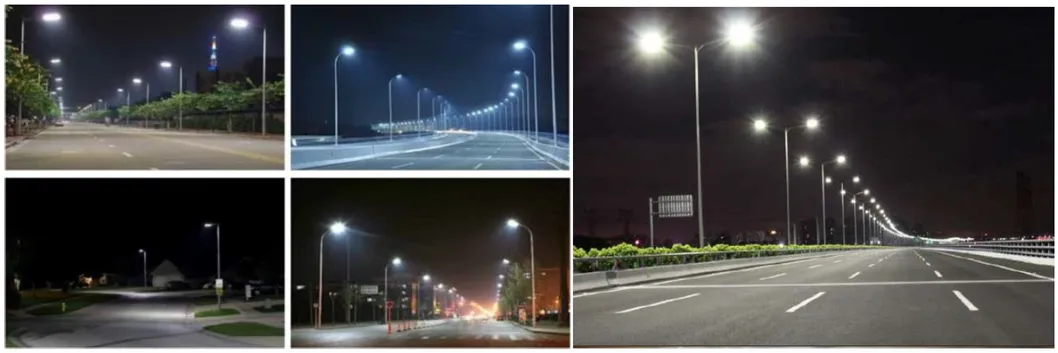

Installation & Application

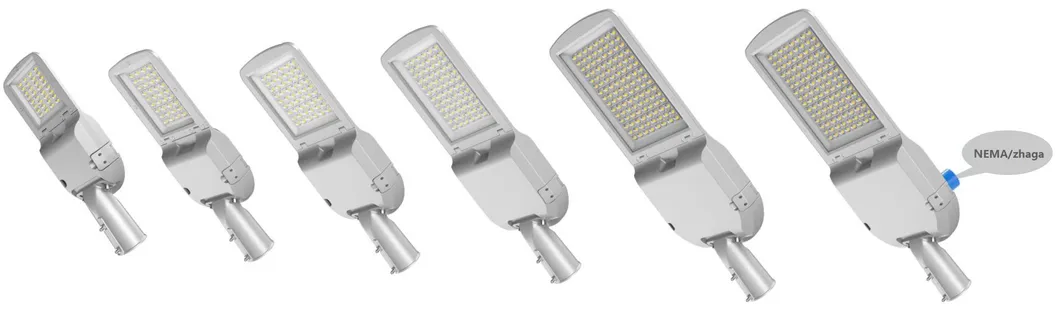

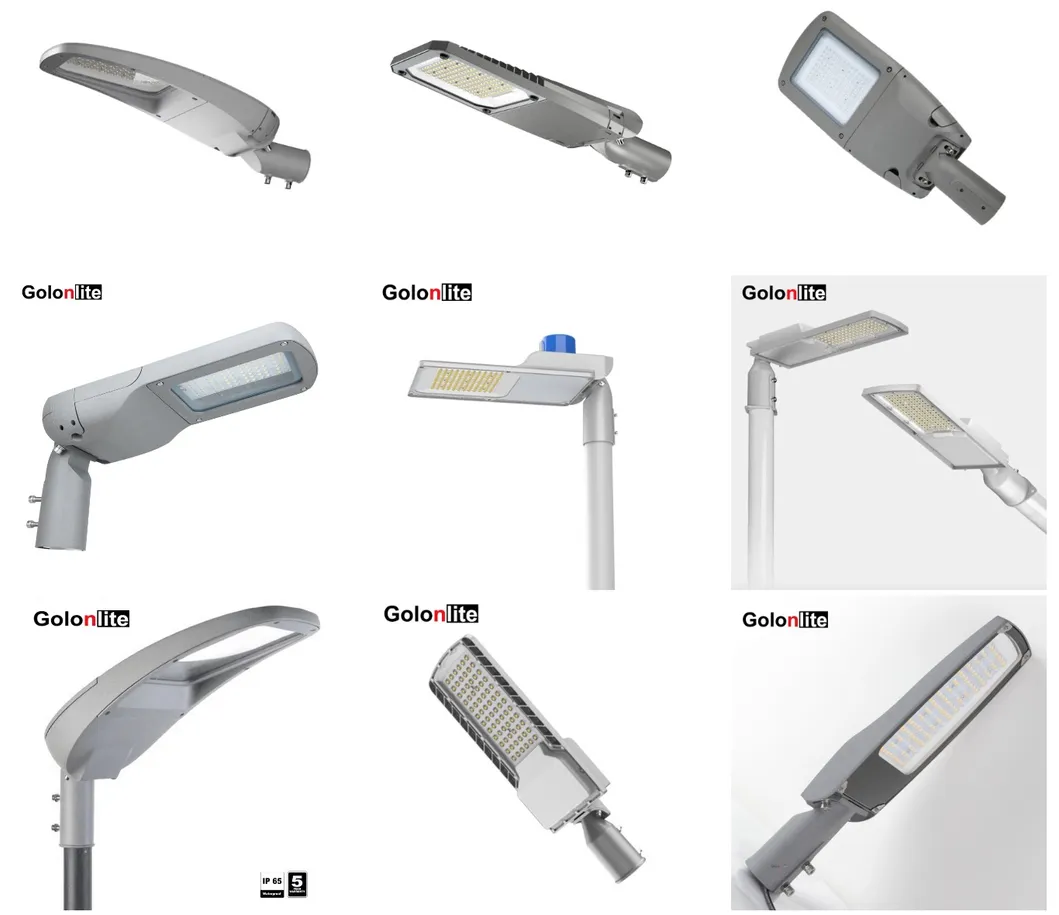

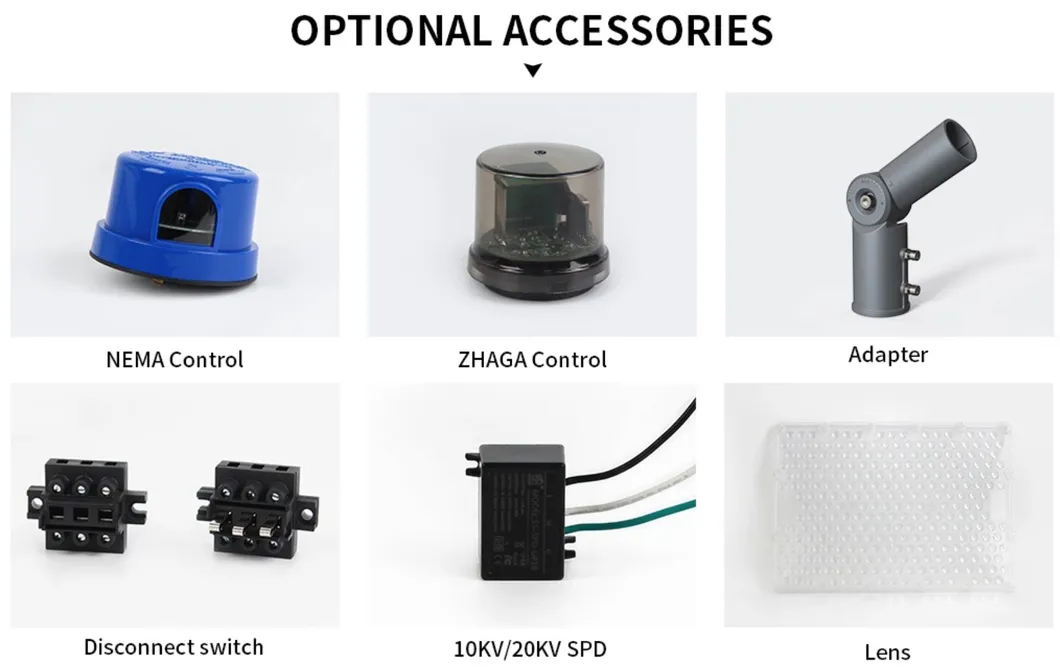

Product Series Overview
Frequently Asked Questions
Q What is the energy efficiency of these LED street lights?
These lights offer high luminous efficiency ranging from 150Lm/W up to 180Lm/W, providing superior energy savings compared to traditional HID or HPS lamps.
Q Are these lights suitable for extreme weather conditions?
Yes, they are IP66 waterproof rated and IK08 impact-resistant, making them ideal for outdoor environments like highways, public parks, and parking lots.
Q Do you support smart city lighting controls?
Absolutely. Our fixtures support NEMA sockets (3/5/7 pins) and can be integrated with LoRaWAN, Zigbee, NB-IoT, and photocell sensors for intelligent management.
Q Is it difficult to maintain these fixtures?
No, the fixtures feature a tool-free opening design, allowing for easy access to internal components for maintenance without the need for specialized tools.
Q What kind of warranty and lighting support do you provide?
We provide 5, 7, or 10 years of warranty depending on the configuration. Additionally, we offer free Dialux lighting simulations and IES files to help with your project planning.

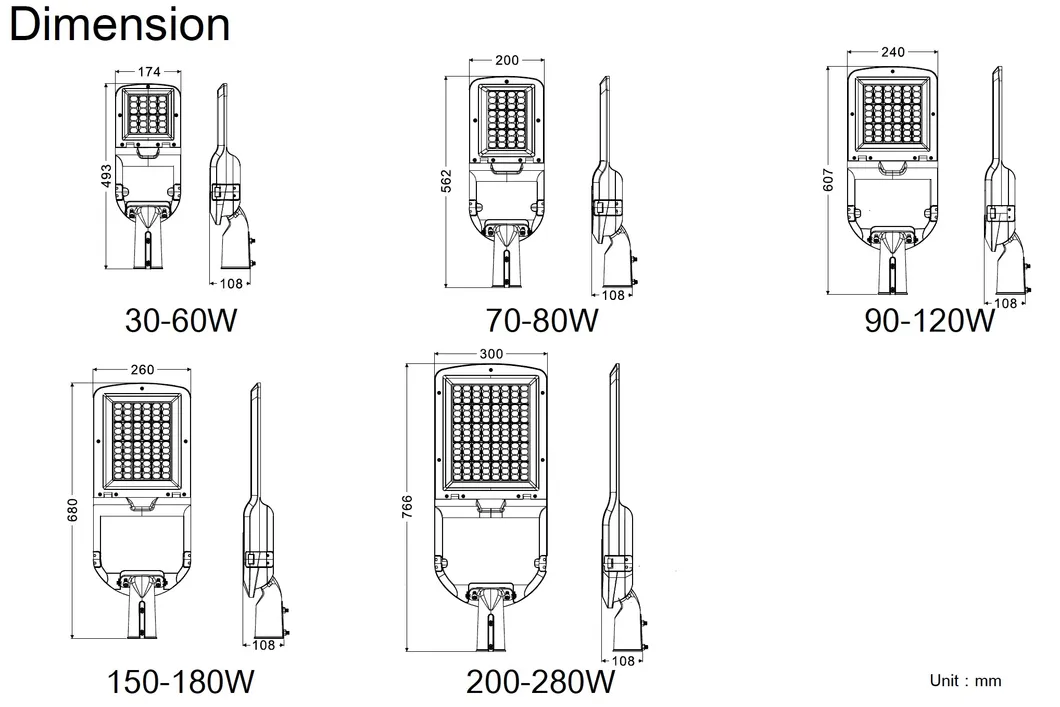

Q What mounting sizes are compatible?
The installation bracket is designed to fit pole diameters of 40mm, 50mm, and 60mm, covering most standard street light poles.
